LYONISUB 07RN8-F DW

Application

These cables were developed for making connections to submersible pumps in drinking water.

The design is based on EN 50525-2-21.

The ACS approvals allow the cable to be used in drinking water.

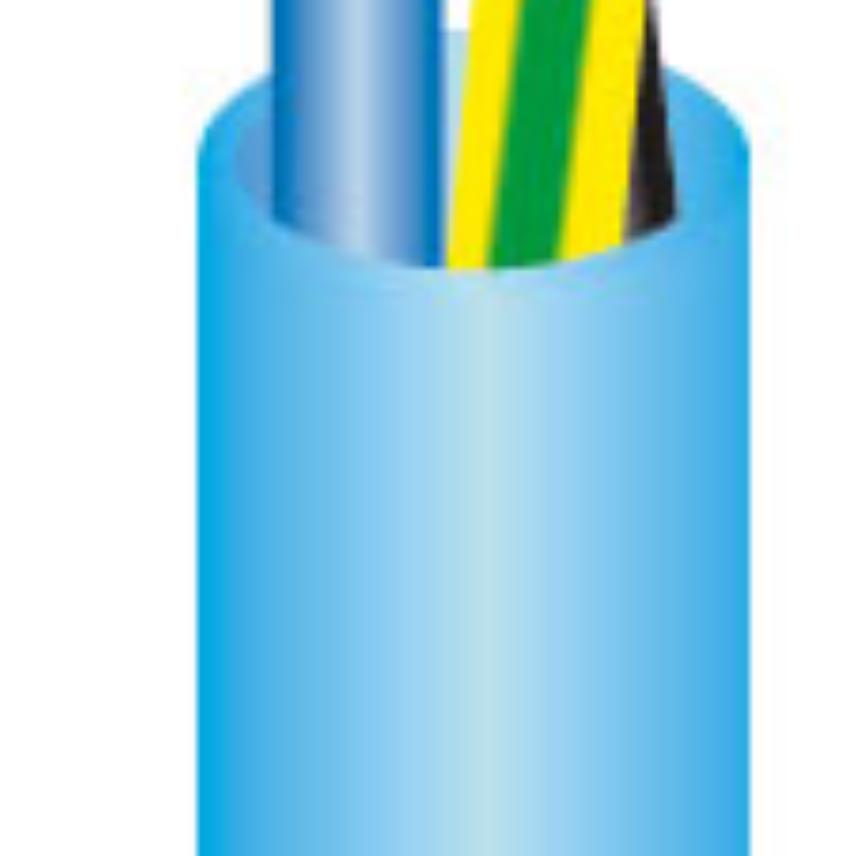

Design

1. Conductor: Flexible plain or tinned copper Class 5 (NF EN 60228) .

 2. Insulation: Crosslinked elastomer EI4

 3. Outer sheath:

   - Special crosslinked elastomer base on type EM2

   - Colour blue

Core colours

• 1 Core = Brown "Other colours on request"
• 2 cores (X) = Brown + Blue
• 3 cores (G) = Green-Yellow + Brown + Blue
• 3 cores (X) = Brown + Black + Grey
• 4 cores (G) = Green-Yellow + Brown + Black + Grey
• 4 cores (X) = Blue + Brown + Black + Grey
• 5 cores (G) = Green-Yellow + Blue + Brown +  Black + Grey
• 5 cores (X) =  Blue + Brown +  Black + Grey + Black

Marking

~~~LYONISUB + ~~~ DW ACS 07RN8-F nb (x ou G) S mm² 269 NEXANS

Nota

Permissible current rating is measured for an ambient temperature of 30°C.
