Coffret d'outillage complet NCC 50-630 mm²

Application

Adjustable and multifunctional complete toolbox enabling the preparation of synthetic insulated MV cables meeting the HN 33-S-22, HN 33-S-23, NF C 33-220, NF C 33-223, NF C 33-226 and UTE C 33-223 (cable 2000) standards with strippable and non-strippable semi-conductor from 50 to 630 mm².

It allows the following operations :

• The removal and making of the slit on the external sheath.
• The cutting of the detachable external semi-conductor or the removal of the non-detachable external semi-conductor.
• The complete set-up of the screen plate.
• The stripping of the insulator and of the internal semi-conductor.
• The chamfering of the insulator.
• The cutting of the insulation cones.

Packaging

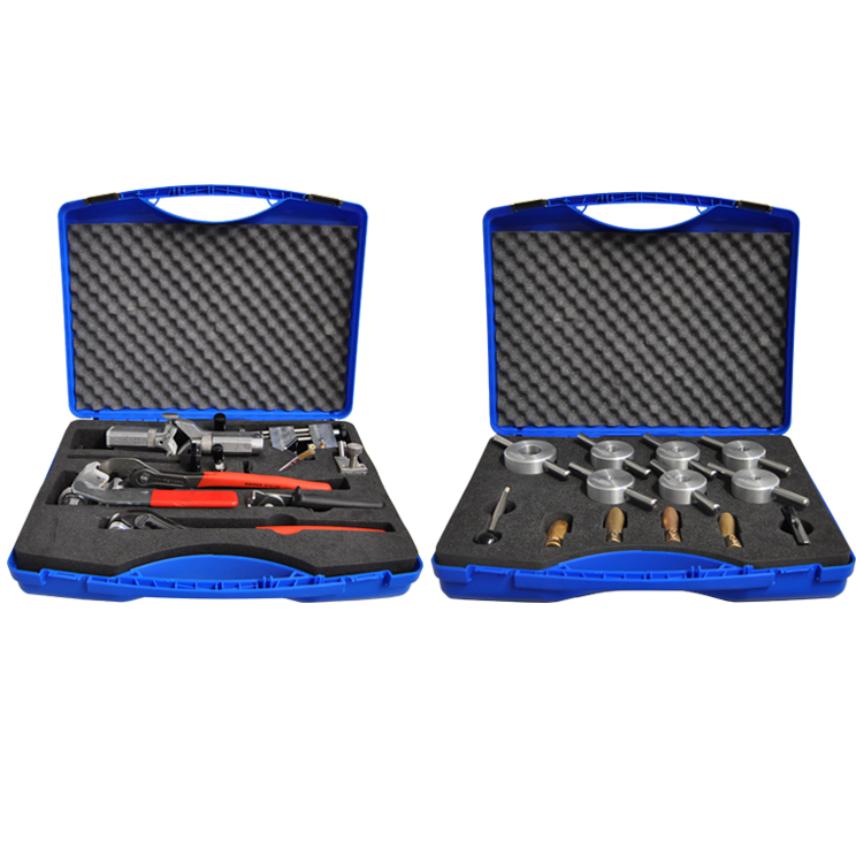

Toolbox in the form of 2 PVC cases including :

• Two foam inserts enabling the storage of the Nexans cable preparation tools.

• The following tools :
  • MUTITOOL GB-FLM20
  • Slit opener
  • Split-off tool
  • Refold tool
  • Peelingtool 50-630 mm²
  • Chamfer tool
  • Pliers for stainless steel bracket
  • 7 Cone-cutters from 50 to 630 mm²
  • 4 Expanding shoes from 50 to 630 mm²
  • Replacement blades
  • Adapted screws
