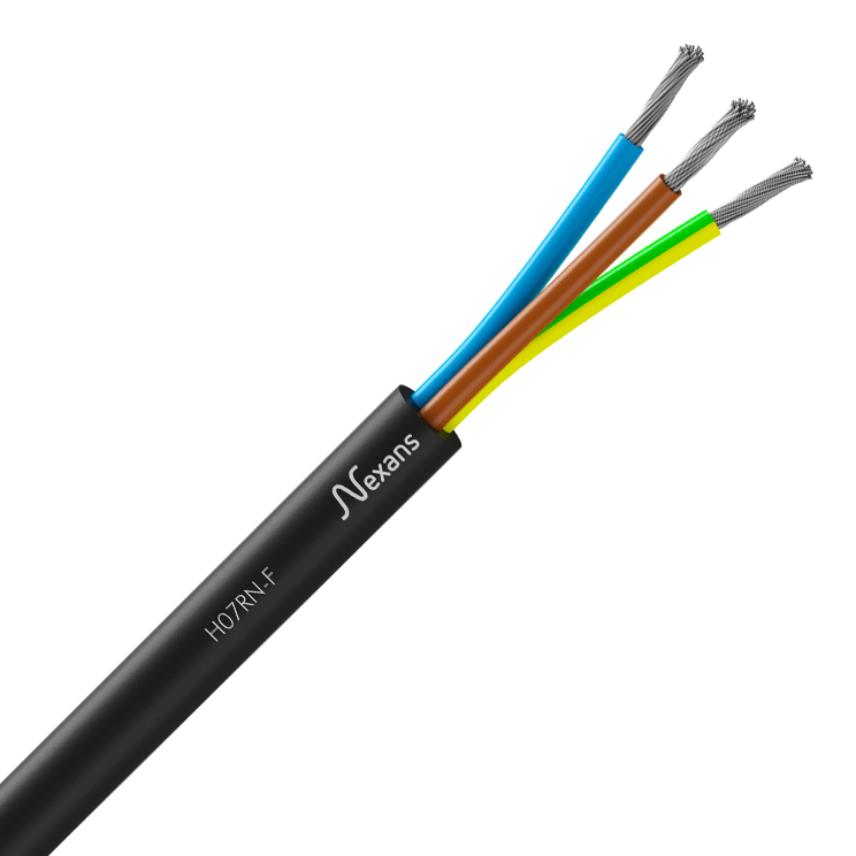

Nexans H07RN-F
Nexans H07RN-F
Industrial flexible rubber cable range with an insulation and sheath in elastomers. Cables for heavy duty uses, Oil resistant and Flame retardancy according to IEC/EN 60332-1-2 standard.
Read moreCOIL H07RNF 5G2,5 25m NO
Nexans ref. 10260791
- Packaging: Unit
- Conductor material: Bare annealed copper stranded
- Lead free:
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 2.5 mm²
- Number of cores: 5
- Maximum outer diameter: 17.0 mm
- Minimum outer diameter: 13.3 mm
- Chemical resistance: Good
- Operating temperature, range: -25 ... 50 °C
- Short-circuit max. conductor temperature: 250 °C
COIL H07RNF-3x1,5-10
Nexans ref. 10268745
- Packaging: Unit
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
- Maximum outer diameter: 11.9 mm
- Minimum outer diameter: 9.2 mm
- Chemical resistance: Good
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
COIL H07RNF-3x1,5-5
Nexans ref. 10268744
- Packaging: Unit
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
- Maximum outer diameter: 11.9 mm
- Minimum outer diameter: 9.2 mm
- Chemical resistance: Good
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
COIL H07RNF-3x2,5-10
Nexans ref. 10268747
- Packaging: Unit
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
- Maximum outer diameter: 14.0 mm
- Minimum outer diameter: 10.9 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
COIL H07RNF-3x2,5-25
Nexans ref. 10268789
- Packaging: Unit
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
- Maximum outer diameter: 14.0 mm
- Minimum outer diameter: 10.9 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
COIL H07RNF-3x2,5-5
Nexans ref. 10268746
- Packaging: Unit
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
- Maximum outer diameter: 14.0 mm
- Minimum outer diameter: 10.9 mm
- Chemical resistance: Good
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
DRUM H07RNF 3G1,5 150m NO*
Nexans ref. 10097428
- Packaging: Unit
- Conductor material: Bare copper
- Lead free: -
- Outer sheath: Elastomer
- With Green/Yellow core: -
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
- Maximum outer diameter: - mm
- Minimum outer diameter: - mm
- Chemical resistance: Good
- Operating temperature, range: -25 ... 50 °C
- Short-circuit max. conductor temperature: 250 °C
DRUM H07RNF 3G2,5 100m NO*
Nexans ref. 10104214
- Packaging: Unit
- Conductor material: Bare copper
- Lead free: -
- Outer sheath: Elastomer
- With Green/Yellow core: -
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
- Maximum outer diameter: - mm
- Minimum outer diameter: - mm
- Chemical resistance: Good
- Operating temperature, range: -25 ... 50 °C
- Short-circuit max. conductor temperature: 250 °C
DRUM H07RNF 5G1,5 80m NO*
Nexans ref. 10253490
- Packaging: Unit
- Conductor material: Bare annealed copper stranded
- Lead free:
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 1.5 mm²
- Number of cores: 5
- Maximum outer diameter: 14.4 mm
- Minimum outer diameter: 11.2 mm
- Chemical resistance: Good
- Operating temperature, range: -25 ... 50 °C
- Short-circuit max. conductor temperature: 250 °C
DRUM H07RNF-5x2,5-M
Nexans ref. 10268703
- Packaging: Unit
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 2.5 mm²
- Number of cores: 5
- Maximum outer diameter: 17.0 mm
- Minimum outer diameter: 13.3 mm
- Chemical resistance: Very good
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
DRUM H07RNF-5x4-M
Nexans ref. 10268704
- Packaging: Unit
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 4 mm²
- Number of cores: 5
- Maximum outer diameter: 19.9 mm
- Minimum outer diameter: 15.6 mm
- Chemical resistance: Very good
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 12G1.5 cut to length
Nexans ref. 10056182
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 1.5 mm²
- Number of cores: 12
- Maximum outer diameter: 22.14 mm
- Minimum outer diameter: 17.6 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 12G2,5 MBH GL3000
Nexans ref. 10044033
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 2.5 mm²
- Number of cores: 12
- Maximum outer diameter: 26.2 mm
- Minimum outer diameter: 20.6 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 1X150 MBH GL2000
Nexans ref. 10056129
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 150 mm²
- Number of cores: 1
- Maximum outer diameter: 31.4 mm
- Minimum outer diameter: 25.2 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 1X95 MBH GL3000
Nexans ref. 10056088
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 95 mm²
- Number of cores: 1
- Maximum outer diameter: 26.0 mm
- Minimum outer diameter: 20.8 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 1x10 cut to length
Nexans ref. 10056059
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 10 mm²
- Number of cores: 1
- Maximum outer diameter: 11.9 mm
- Minimum outer diameter: 9.5 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 1x120 cut to length
Nexans ref. 10056089
- Packaging: Cut to length (500m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 120 mm²
- Number of cores: 1
- Maximum outer diameter: 28.6 mm
- Minimum outer diameter: 22.8 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 1x16 cut to length
Nexans ref. 10056087
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 16 mm²
- Number of cores: 1
- Maximum outer diameter: 13.4 mm
- Minimum outer diameter: 10.8 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 1x185 cut to length
Nexans ref. 10044024 - Country ref. 01397155
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 185 mm²
- Number of cores: 1
- Maximum outer diameter: 34.4 mm
- Minimum outer diameter: 27.6 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 1x240 cut to length
Nexans ref. 10044035 - Country ref. 01397165
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 240 mm²
- Number of cores: 1
- Maximum outer diameter: 38.3 mm
- Minimum outer diameter: 30.6 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 1x25 cut to length
Nexans ref. 10055844
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 25 mm²
- Number of cores: 1
- Maximum outer diameter: 15.8 mm
- Minimum outer diameter: 12.7 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 1x300 cut to length
Nexans ref. 10044025 - Country ref. 01397175
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 300 mm²
- Number of cores: 1
- Maximum outer diameter: 41.9 mm
- Minimum outer diameter: 33.5 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 1x35 cut to length
Nexans ref. 10056084
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 35 mm²
- Number of cores: 1
- Maximum outer diameter: 17.9 mm
- Minimum outer diameter: 14.3 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 1x50 cut to length
Nexans ref. 10055845
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 50 mm²
- Number of cores: 1
- Maximum outer diameter: 20.6 mm
- Minimum outer diameter: 16.5 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 1x500 cut to length
Nexans ref. 10056493
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 500 mm²
- Number of cores: 1
- Maximum outer diameter: 52.0 mm
- Minimum outer diameter: 41.3 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 1x70 cut to length
Nexans ref. 10056086
- Packaging: Cut to length (500m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 70 mm²
- Number of cores: 1
- Maximum outer diameter: 23.3 mm
- Minimum outer diameter: 18.6 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 24G1.5 cut to length
Nexans ref. 10056308
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 1.5 mm²
- Number of cores: 24
- Maximum outer diameter: 30.7 mm
- Minimum outer diameter: 24.3 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 24G2,5 MBH GL500
Nexans ref. 10056192
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 2.5 mm²
- Number of cores: 24
- Maximum outer diameter: 36.4 mm
- Minimum outer diameter: 28.8 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 2x1.5 cut to length
Nexans ref. 10056097
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 1.5 mm²
- Number of cores: 2
- Maximum outer diameter: 11.0 mm
- Minimum outer diameter: 8.5 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 2x2.5 cut to length
Nexans ref. 10056187
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 2.5 mm²
- Number of cores: 2
- Maximum outer diameter: 13.1 mm
- Minimum outer diameter: 10.2 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 2x4 cut to length
Nexans ref. 10056131
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 4 mm²
- Number of cores: 2
- Maximum outer diameter: 15.1 mm
- Minimum outer diameter: 11.8 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 3G1.5 cut to length
Nexans ref. 10056797
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
- Maximum outer diameter: 11.9 mm
- Minimum outer diameter: 9.2 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 3G10 cut to length
Nexans ref. 10056144
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 10 mm²
- Number of cores: 3
- Maximum outer diameter: 24.2 mm
- Minimum outer diameter: 19.1 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 3G16 cut to length
Nexans ref. 10056188
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 16 mm²
- Number of cores: 3
- Maximum outer diameter: 27.6 mm
- Minimum outer diameter: 21.8 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 3G2.5 cut to length
Nexans ref. 10056143
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
- Maximum outer diameter: 14.0 mm
- Minimum outer diameter: 10.9 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 3G25 cut to length
Nexans ref. 10044017
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 25 mm²
- Number of cores: 3
- Maximum outer diameter: 33.0 mm
- Minimum outer diameter: 26.1 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 3G35 cut to length
Nexans ref. 10056207
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 35 mm²
- Number of cores: 3
- Maximum outer diameter: 37.1 mm
- Minimum outer diameter: 29.3 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 3G4 MBH GL3500
Nexans ref. 10056120
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 4 mm²
- Number of cores: 3
- Maximum outer diameter: 16.2 mm
- Minimum outer diameter: 12.7 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 3G50 cut to length
Nexans ref. 10056092
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 50 mm²
- Number of cores: 3
- Maximum outer diameter: 42.9 mm
- Minimum outer diameter: 34.1 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 3G6 cut to length
Nexans ref. 10055972
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 6 mm²
- Number of cores: 3
- Maximum outer diameter: 18.0 mm
- Minimum outer diameter: 14.1 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 3G70 cut to length
Nexans ref. 10056093 - Country ref. 01397515
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 70 mm²
- Number of cores: 3
- Maximum outer diameter: 48.3 mm
- Minimum outer diameter: 38.4 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 3G95 cut to length
Nexans ref. 10056191 - Country ref. 01397524
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 95 mm²
- Number of cores: 3
- Maximum outer diameter: 54.0 mm
- Minimum outer diameter: 43.3 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 4G1.5 cut to length
Nexans ref. 10056102
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 1.5 mm²
- Number of cores: 4
- Maximum outer diameter: 13.1 mm
- Minimum outer diameter: 10.2 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 4G10 cut to length
Nexans ref. 10056109
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 10 mm²
- Number of cores: 4
- Maximum outer diameter: 26.5 mm
- Minimum outer diameter: 20.8 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 4G120 cut to length
Nexans ref. 10056247 - Country ref. 01397735
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 120 mm²
- Number of cores: 4
- Maximum outer diameter: 66.0 mm
- Minimum outer diameter: 53.0 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 4G150 cut to length
Nexans ref. 10056211 - Country ref. 01397745
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 150 mm²
- Number of cores: 4
- Maximum outer diameter: 73.0 mm
- Minimum outer diameter: 58.0 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 4G150 cut to length
Nexans ref. 10278420 - Country ref. 01397745
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 150 mm²
- Number of cores: 4
- Maximum outer diameter: 73.0 mm
- Minimum outer diameter: 58.0 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 4G16 cut to length
Nexans ref. 10056146
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 16 mm²
- Number of cores: 4
- Maximum outer diameter: 30.1 mm
- Minimum outer diameter: 23.8 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 4G185 cut to length
Nexans ref. 10056248
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 185 mm²
- Number of cores: 4
- Maximum outer diameter: 80.0 mm
- Minimum outer diameter: 64.0 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 4G2.5 cut to length
Nexans ref. 10056137
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 2.5 mm²
- Number of cores: 4
- Maximum outer diameter: 15.5 mm
- Minimum outer diameter: 12.5 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 4G25 cut to length
Nexans ref. 10055848
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 25 mm²
- Number of cores: 4
- Maximum outer diameter: 36.6 mm
- Minimum outer diameter: 28.9 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 4G35 cut to length
Nexans ref. 10055849
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 35 mm²
- Number of cores: 4
- Maximum outer diameter: 41.1 mm
- Minimum outer diameter: 32.5 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 4G4 cut to length
Nexans ref. 10056051
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 4 mm²
- Number of cores: 4
- Maximum outer diameter: 18.0 mm
- Minimum outer diameter: 14.0 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 4G50 cut to length
Nexans ref. 10044032
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 50 mm²
- Number of cores: 4
- Maximum outer diameter: 47.5 mm
- Minimum outer diameter: 37.7 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 4G6 cut to length
Nexans ref. 10056046
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 6 mm²
- Number of cores: 4
- Maximum outer diameter: 20.0 mm
- Minimum outer diameter: 15.7 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 4G70 cut to length
Nexans ref. 10056155 - Country ref. 01397715
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 70 mm²
- Number of cores: 4
- Maximum outer diameter: 54.0 mm
- Minimum outer diameter: 42.7 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 4G95 cut to length
Nexans ref. 10056189 - Country ref. 01397725
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 95 mm²
- Number of cores: 4
- Maximum outer diameter: 61.0 mm
- Minimum outer diameter: 48.4 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 5G1.5 cut to length
Nexans ref. 10056106
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 1.5 mm²
- Number of cores: 5
- Maximum outer diameter: 14.4 mm
- Minimum outer diameter: 11.2 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 5G10 cut to length
Nexans ref. 10056163
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 10 mm²
- Number of cores: 5
- Maximum outer diameter: 29.1 mm
- Minimum outer diameter: 22.9 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 5G16 cut to length
Nexans ref. 10056158
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 16 mm²
- Number of cores: 5
- Maximum outer diameter: 33.3 mm
- Minimum outer diameter: 26.4 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 5G2.5 cut to length
Nexans ref. 10056126
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 2.5 mm²
- Number of cores: 5
- Maximum outer diameter: 17.0 mm
- Minimum outer diameter: 13.3 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 5G2.5 drum of 500 m
Nexans ref. 10056125
- Packaging: Drum (500m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 2.5 mm²
- Number of cores: 5
- Maximum outer diameter: 17.0 mm
- Minimum outer diameter: 13.3 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 5G25 cut to length
Nexans ref. 10056107
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 25 mm²
- Number of cores: 5
- Maximum outer diameter: 40.4 mm
- Minimum outer diameter: 32.0 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 5G35 cut to length
Nexans ref. 10044018 - Country ref. 01397895
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 35 mm²
- Number of cores: 5
- Maximum outer diameter: 45.1 mm
- Minimum outer diameter: - mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 5G50 cut to length
Nexans ref. 10056190 - Country ref. 01397900
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 50 mm²
- Number of cores: 5
- Maximum outer diameter: 53.0 mm
- Minimum outer diameter: - mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 5G6 cut to length
Nexans ref. 10056154
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 6 mm²
- Number of cores: 5
- Maximum outer diameter: 22.2 mm
- Minimum outer diameter: 17.5 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 5G70 cut to length
Nexans ref. 10056218 - Country ref. 01397910
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 70 mm²
- Number of cores: 5
- Maximum outer diameter: 60.0 mm
- Minimum outer diameter: - mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 5G95 cut to length
Nexans ref. 10056309 - Country ref. 01397920
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 95 mm²
- Number of cores: 5
- Maximum outer diameter: 67.0 mm
- Minimum outer diameter: 54.0 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 7G1,5MBH GL2000
Nexans ref. 10056165
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 1.5 mm²
- Number of cores: 7
- Maximum outer diameter: 18.7 mm
- Minimum outer diameter: 14.7 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 7G2,5 MBH GL3000
Nexans ref. 10056156
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 2.5 mm²
- Number of cores: 7
- Maximum outer diameter: 21.8 mm
- Minimum outer diameter: 17.1 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
H07RN-F 7G4 MBH GL1000
Nexans ref. 10056358
- Packaging: Cut to length (m)
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 4 mm²
- Number of cores: 7
- Maximum outer diameter: 25.8 mm
- Minimum outer diameter: 20.3 mm
- Chemical resistance: Accidental
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
M-DRUM H07RNF 2X1,5 80m BK
Nexans ref. 10279317
- Packaging: Unit
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: No
- Conductor cross-section: 1.5 mm²
- Number of cores: 2
- Maximum outer diameter: 11.0 mm
- Minimum outer diameter: 8.5 mm
- Chemical resistance: Good
- Operating temperature, range: -25 ... 55 °C
- Short-circuit max. conductor temperature: 200 °C
M-DRUM H07RNF 3G1,5 80m NO*
Nexans ref. 10198701
- Packaging: Unit
- Conductor material: Bare copper
- Lead free: -
- Outer sheath: Elastomer
- With Green/Yellow core: -
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
- Maximum outer diameter: - mm
- Minimum outer diameter: - mm
- Chemical resistance: Good
- Operating temperature, range: -25 ... 50 °C
- Short-circuit max. conductor temperature: 250 °C
M-DRUM H07RNF 3G2,5 50m NO*
Nexans ref. 10208005
- Packaging: Unit
- Conductor material: Bare annealed copper stranded
- Lead free: Yes
- Outer sheath: Cross-linked synthetic elastomer type EM 2
- With Green/Yellow core: Yes
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
- Maximum outer diameter: 14.0 mm
- Minimum outer diameter: 10.9 mm
- Chemical resistance: Good
- Operating temperature, range: -25 ... 50 °C
- Short-circuit max. conductor temperature: 200 °C
Description
Description
Standards
-
ProductEN 50525-2-21; HD 22.4; HD 516; IEC 60245-4 type 66; NF C32-102-4
Application
H07RN-F flexible cable is intended for installations with moving equipments, electric appliances and for building sites also for motors in lifting appliances -machine tools, etc ... The cable may be rated up to 0,6/1 kV where the installation has built-in protection.
This range of cables is recommended in dry, damp or wet workshops, indoor and outdoor, for example in explosive atmosphere(as ATEX) according to regulation of the country and with some additional recommendations and also for industrial devices and agricultures workshops ...
This cable can be used in refrigerating installations.
Installation
This cable can be installed in open air or be buried but with extra mechanical protection.
Conductors laid up
Assembled conductors.
Nota
Max continuous operating conductor temperature in normal use :
+60°C (in every case of mobile installation)
+85°C (in fixed and protected installation)
+200°C ( in short circuit )
Permissible current rating is measured for an ambient temperature of 30°C and a maximum operating and conductor temperature of 60°C . For other temperature please refer to correction factors .
European Directive RoHS : Compliant
SY+ : French directive for lead free materials in materials.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor shape
Circular
Insulation
Cross-linked synthetic elastomer type EI 4
Sheath colour
Black
Electrical characteristics
Electrical characteristics
Phase reactance 50 Hz - trefoil formation
- Ohm/km
Rated Voltage Uo/U (Um)
450/750 V
Mechanical characteristics
Mechanical characteristics
Mechanical resistance to impacts
Very good
Cable flexibility
Flexible
Usage characteristics
Usage characteristics
Water proof
Good
Max. conductor temperature in service
85 °C
Oil resistance
Yes
RoHS compliant
Yes
Resources
Resources
Documentation
RADIUS CURVES RULES FOR FLEXIBLE RUBBER CABLES
pdf — 299.6 kB
Core identification
xls — 0 B
License USE
Selling & delivery Information
Marking
USE <'HAR> H07RN-F N (x or G) S mm²
N = number of cores
G = with Green-Yellow
x = without Green-Yellow
S = section in mm²
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
