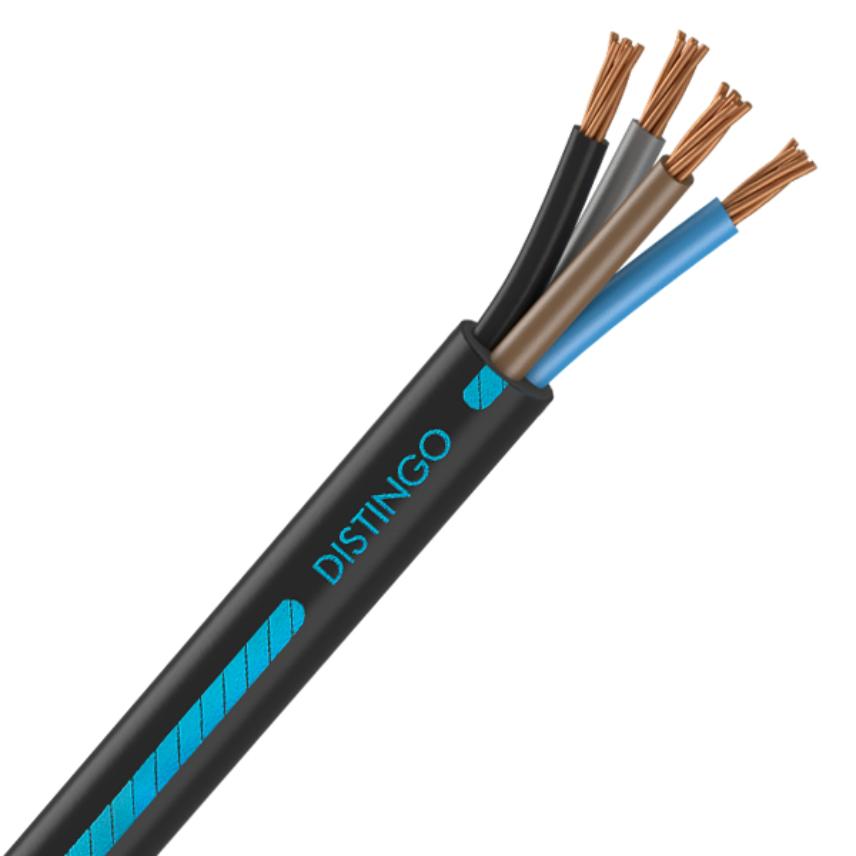

Nexans U-1000 R2V DISTINGO 4x6
Nexans U-1000 R2V DISTINGO 4x6
These U-1000 R2V cables with XLPE insulation and PVC outer sheath can be used in all low voltage power installations. Multiconductors cables are adapted to remote control and telecontrol installations. It could be installed outside without protection (UV resistance, AN3 according to NF C 15-100)
Read more- Nexans ref. : 10043739
- Country ref. : 01383643
- EAN : 3427500001295
Description
Description
Standards
-
InternationalIEC 60502-1
-
NationalNF C32-321
Application
These U-1000 R2V cables with XLPE insulation and PVC outer sheath can be used in all low voltage power installations. Multiconductors cables are adapted to remote control and telecontrol installations.
It could be installed outside without protection (UV resistance, AN3 according to NF C15-100)
Regarding DISTINGO™: It's the new U-1000 R2V LV power cables between 1.5 to 16² , from 1 to 5 conductors, with :
- 1 color line by cross-section
- and METRIUM™ metric marking is available for all packaging types (drum and coil)
Installation
These cables can be fixed on cable trays, within conduits or fixed to walls, installed outside. They also can be buried directly with extra mechanical protection.
Marking
S.Y. + NF - USE Factory n° U-1000 R2V n (x or G) s mm²
- n = number of cores
- s = section in mm²
- G = with Green-Yellow
- x = without Green-Yellow
For DISTINGO™, metric marking METRIUM™ :
Permissible current and voltage drop are given
a) in free air, sheltered from sun, on cable tray or bracket, on cable ladder, and spaced from the wall, temperature = 30°C.
b) buried with thermal resistivity of the ground 1Km/W, laying depth : 600 mm, temperature = 20°C.
If conditions are differents, apply correction factors from NF C 15-100 standard or equivalent national standard
Voltage drop
Calculated with cosj = 0,8
Les + de la gamme Nexans U-1000 R2V DISTINGO NX'TAG
For each cross-section, a colour
Available in MOBIWAY MOB drum
Distingo RANGE
Tirage sur les conducteurs des câbles
Lors du tirage des câbles, tous les conducteurs participent à l'effort de manière identique. La force maximale de traction ne doit en aucun cas dépasser 5 daN/mm² de section globale (1.5 et 2.5mm²).
Nexans EasyCalc, l'outil gratuit de calcul de section de câble
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Declaration of Performance
- Declaration of Performance n� : 1000205-FRAU
- Certification Date : 11/17/16
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : NB 1812
- Declared performance : Eca
