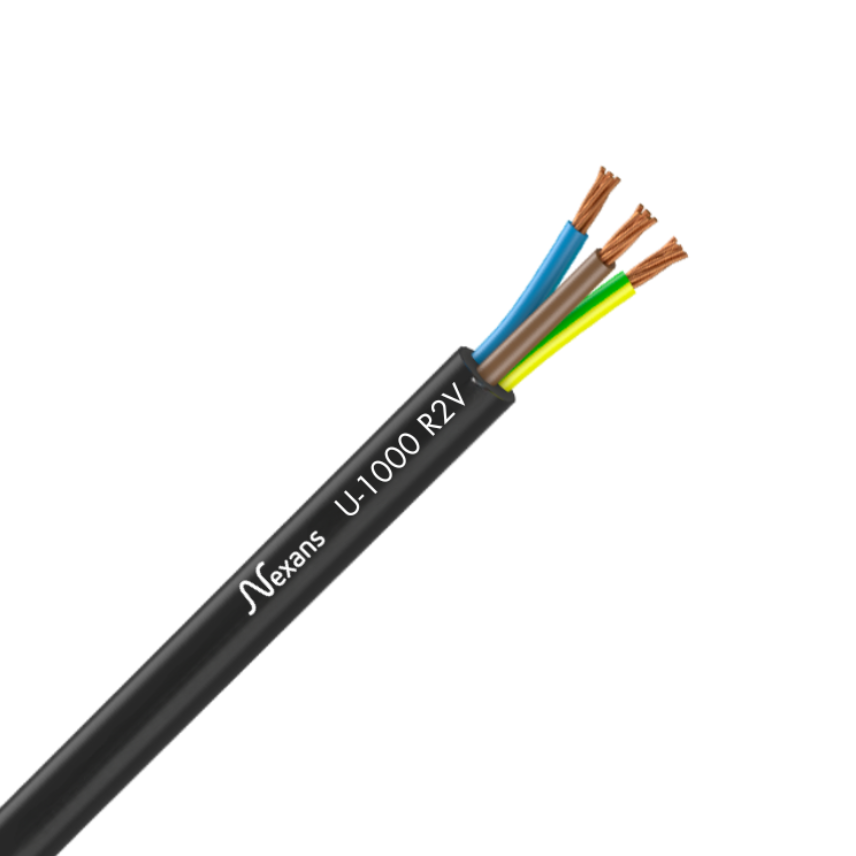

U-1000 R2V 3G1,5 C50m

Application

These U-1000 R2V cables with XLPE insulation and PVC outer sheath can be used in all low voltage power installations. Multiconductors cables are adapted to remote control and telecontrol installations.

It could be installed outside without protection (UV resistance, AN3 according to NF C15-100)

Regarding DISTINGO™: It's the new U-1000 R2V LV power cables between 1.5 to 16² , from 1 to 5 conductors, with :

• 1 color line by cross-section
• and METRIUM™ metric marking is available for all packaging types (drum and coil)

Installation

These cables can be fixed on cable trays, within conduits or fixed to walls, installed outside. They also can be buried directly with extra mechanical protection.

Marking

S.Y. + NF - USE Factory n°  U-1000 R2V n (x or G) s mm²

• n = number of cores
• s = section in mm²
• G = with Green-Yellow
• x = without Green-Yellow

For DISTINGO™, metric marking METRIUM™ :

Permissible current and voltage drop are given

a) in free air, sheltered from sun, on cable tray or bracket, on cable ladder, and spaced from the wall, temperature = 30°C.
b) buried with thermal resistivity of the ground 1Km/W, laying depth : 600 mm, temperature = 20°C.

If conditions are differents, apply correction factors from NF C 15-100 standard  or equivalent national standard

Voltage drop

Calculated with cosj = 0,8
