Nexans 3H07V-U EASYFIL MOBIWAY™ MOB 3G2.5 D300

Description

Description

Standards

  • Product
    EN 50525-2-31; HD 21.3; IEC 60227-1; NF C32-201/3

Application

Nexans H07V-U conductors are used for fixed protected installations : i.e. ligths or control gear (from offices, domestic or commercial buildings ...) with voltage ≤ 1000V AC or ≤ 750 V DC . ...



Installation

Open air, in conduit, in cable trunking, in cable ducting. Thanks to the sliding properties of insulation, H07V-U is made to facilitate processing while pulling in.



Design

  1. 3 conductors H07V-U
    Bare copper class 1
  2. Insulation
    PVC
    Différent colors.



Marking

NEXANS EASYFIL section
For each wire : S.Y + USE H07V-U factory number«har»



Voltage drop

Calculated with Cos phi = 0,8.



Permissible current and voltage drop are given

For conductor laid alone in insulating tube on a wall Temperature = 30°C. Permanent operation
If conditions are different, apply correction factors from NF C 15-100 standard or other equivalent national standard.

Les plus produit



VRAIMENT PRATIQUE   FACILE A POSER

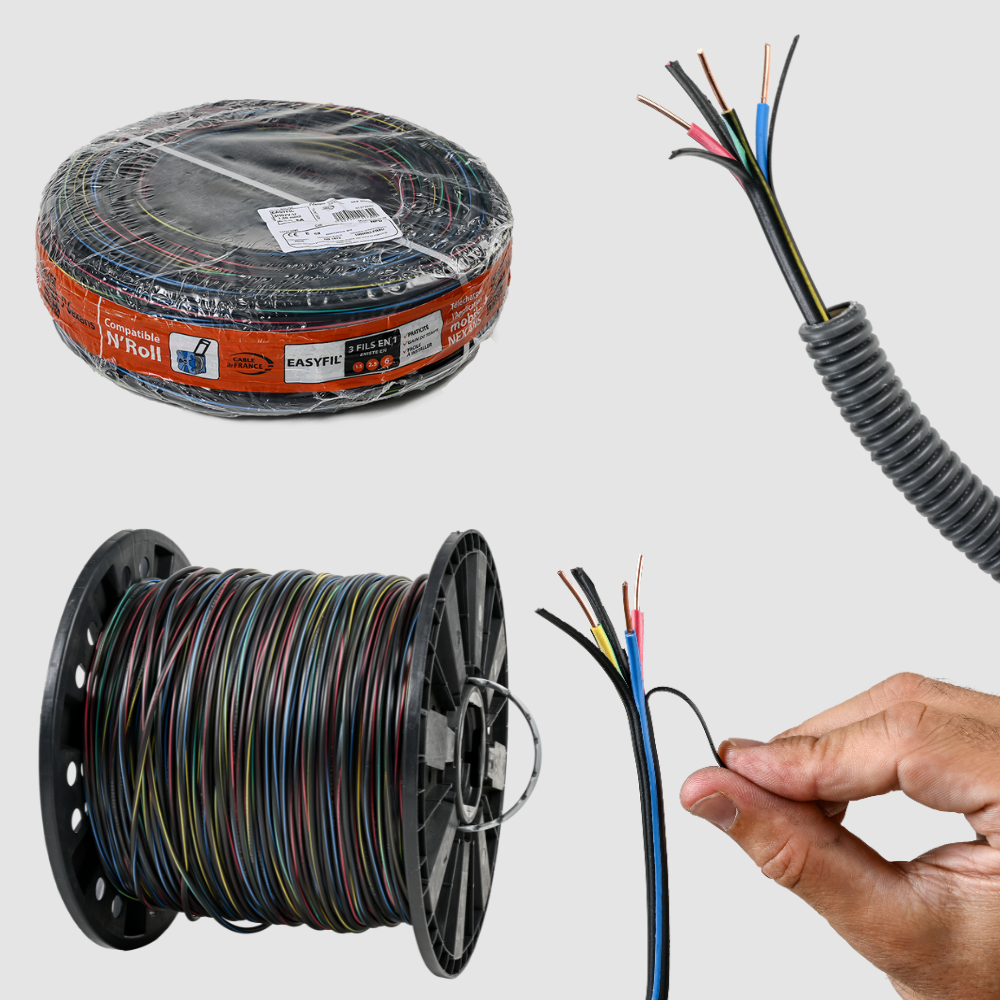

3 fils en 1

  Solidarité des fils
  Les fils H07V-U/V-R sont préassemblés grâce à un liant pelable.     Vous n’avez qu’un seul et unique élément à tirer, ce qui limite les frottements dans le conduit.
Evite les noeuds    Agent glissant intégré
  1 couronne seulement : le risque d’emmêler les fils entre couronnes disparaît tout simplement.     Le liant a été spécialement développé pour faciliter le glissement lors du tirage.
Simple à utiliser    EASYFIL® + N’Roll ® = Facilité
  Vous pouvez séparer les fils sans outil au moment du raccordement. Le liant est enlevé d’un simple geste de la main.     En équipant votre dérouleur N’Roll® avec EASYFIL®, vous supprimez les effets de torsion des fils.

GAIN DE TEMPS
Rapidité de pose
  Préassemblés, vos fils H07V-U/V-R sont prêts à être posés immédiatement.

Manipulation aisée
  Lors de la mise en goulotte, les fils restent solidaires. Plus besoin de les maintenir pour fermer les plinthes.
Compact et efficace
  Les fils restent unis. C’est plus facile de loger plusieurs circuits.




Nexans 3 H07V-U Easyfil can save you time and space

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Colour
Blue-Red-Yellow/green
Conductor flexibility
Solid class 1
Conductor material
Bare copper
Conductor shape
Circular
Insulation
PVC
Lead free
Yes
With Green/Yellow core
-

Dimensional characteristics

Dimensional characteristics

Approximate weight
104 kg/km
Conductor cross-section
2.5 mm²
Maximum outer diameter
7.6 mm
Number of cores
3

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450/750 V

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Low
Cable flexibility
Rigid

Usage characteristics

Usage characteristics

Max. conductor temperature in service
70 °C
Short-circuit max. conductor temperature
160 °C
Operating temperature, range
-5 ... 60 °C
Flame retardant
C2, NF C 32-070 & IEC 60332-1
Weather resistance
-
Chemical resistance
Accidental
Water proof
Low
Laying operation bending radius
- mm
Length
300 m
Minimum static operating bending radius
- mm
Packaging
Drum

Resources

Resources

Declaration of Performance

  • Declaration of Performance n� : 1000063-FRAU
  • Certification Date : 7/23/20
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : NB 1812
  • Declared performance : Eca
