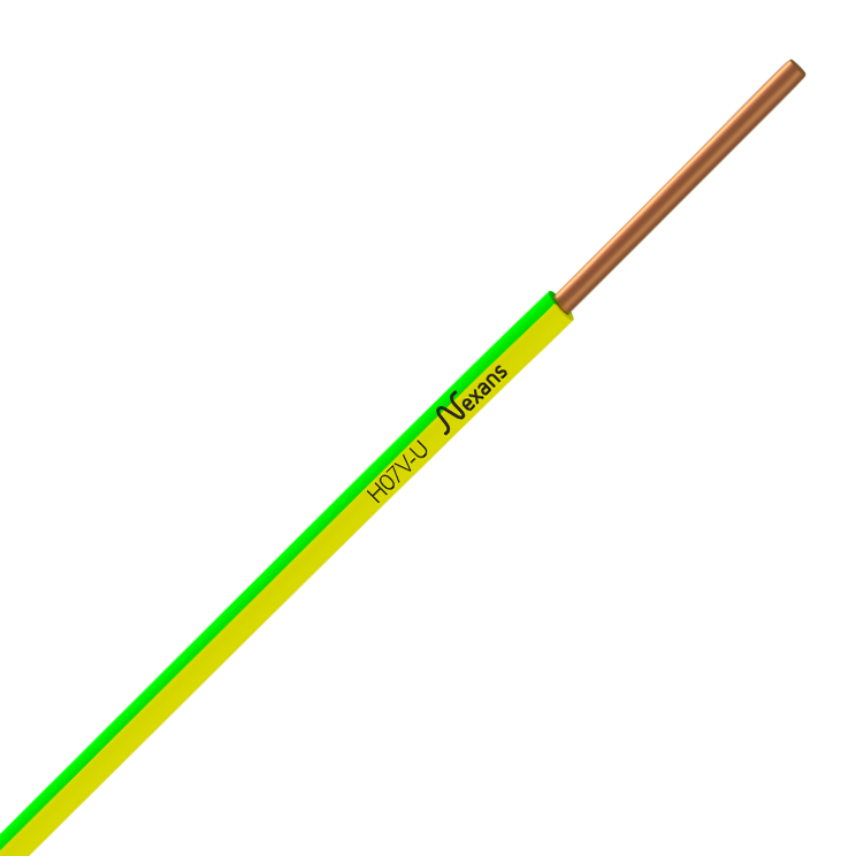

Nexans H07VU 1x2,5 GREEN/YELLOW C100m

Application

Nexans H07V-U conductors are used for fixed protected installations : i.e. ligths or control gear (from offices, domestic or commercial buildings ...) with voltage ≤ 1000V AC or ≤ 750 V DC . ...

Installation

Open air, in conduit, in cable trunking, in cable ducting. Thanks to the sliding properties of insulation, H07V-U is made to facilitate processing while pulling in.

Design

1. Conductor
   Bare copper class 1
2. Insulation
   PVC
   Différent colors.

Marking

S.Y + USE «har» H07V-U factory number

Voltage drop

Calculated with Cos phi = 0,8

Permissible current and voltage drop are given

For conductor laid alone in insulating tube on a wall Temperature = 30°C. Permanent operation
If conditions are different, apply correction factors from NF C 15-100 standard or other equivalent national standard.
