Nexans H07V-U MOBIWAY POP 1x1.5 red D100

Description

Description

Standards

  • Product
    EN 50525-2-31; HD 21.3; IEC 60227-1; NF C32-201/3

Nexans H07V-U conductors are designed for domestic installations, housing, etc...
They are specially designed for panel wiring.
They are suitable for fixed and protected installations, in lighting and control devices for voltages less than or equal to 1000V in alternating current and less than or equal to 750V in direct current to earth.

ADVANTAGES

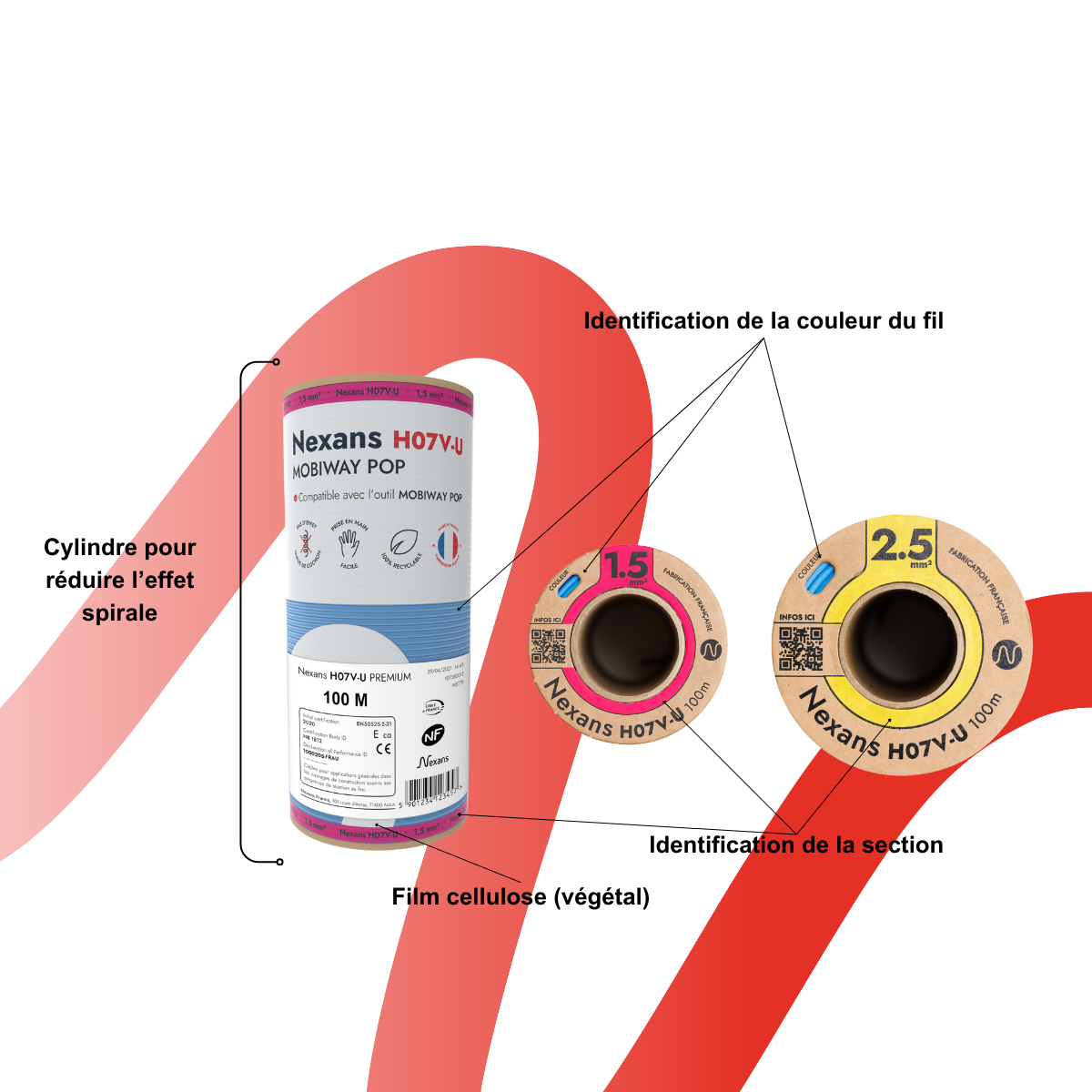

Nexans H07V-U Mobiway Pop wire spools have been designed to facilitate the work of installers. The compact spool format drastically reduces the spiral effect and facilitates wire pulling. This Nexans innovation is unique and saves time and comfort on worksites.

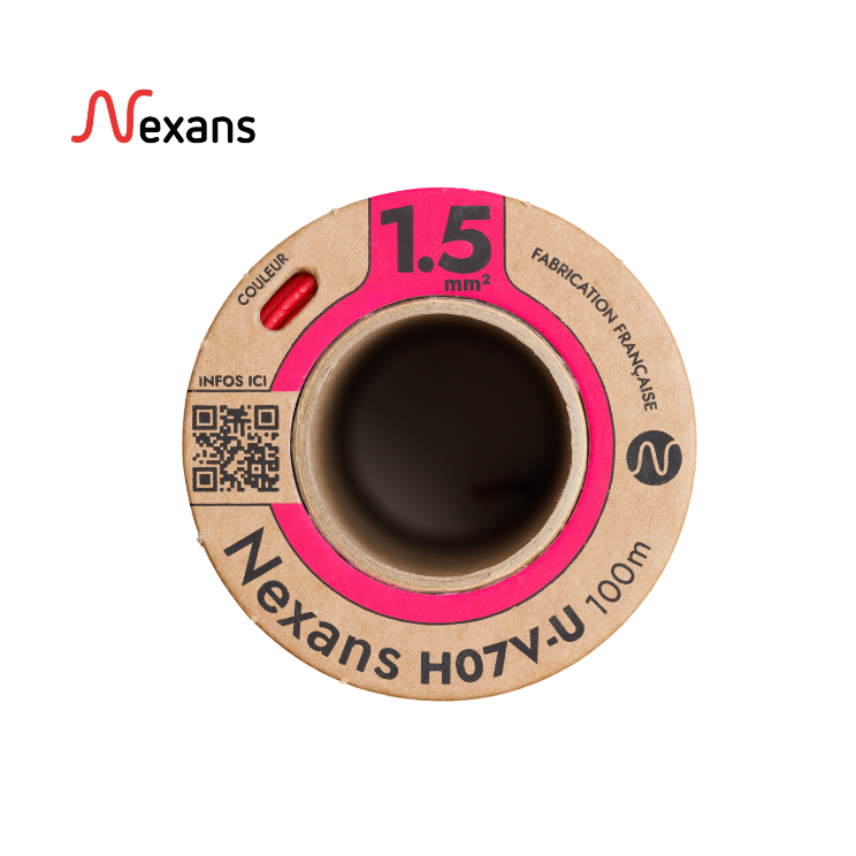

The section of the wires is immediately identifiable: section 1.5 in pink and 2.5 in yellow.

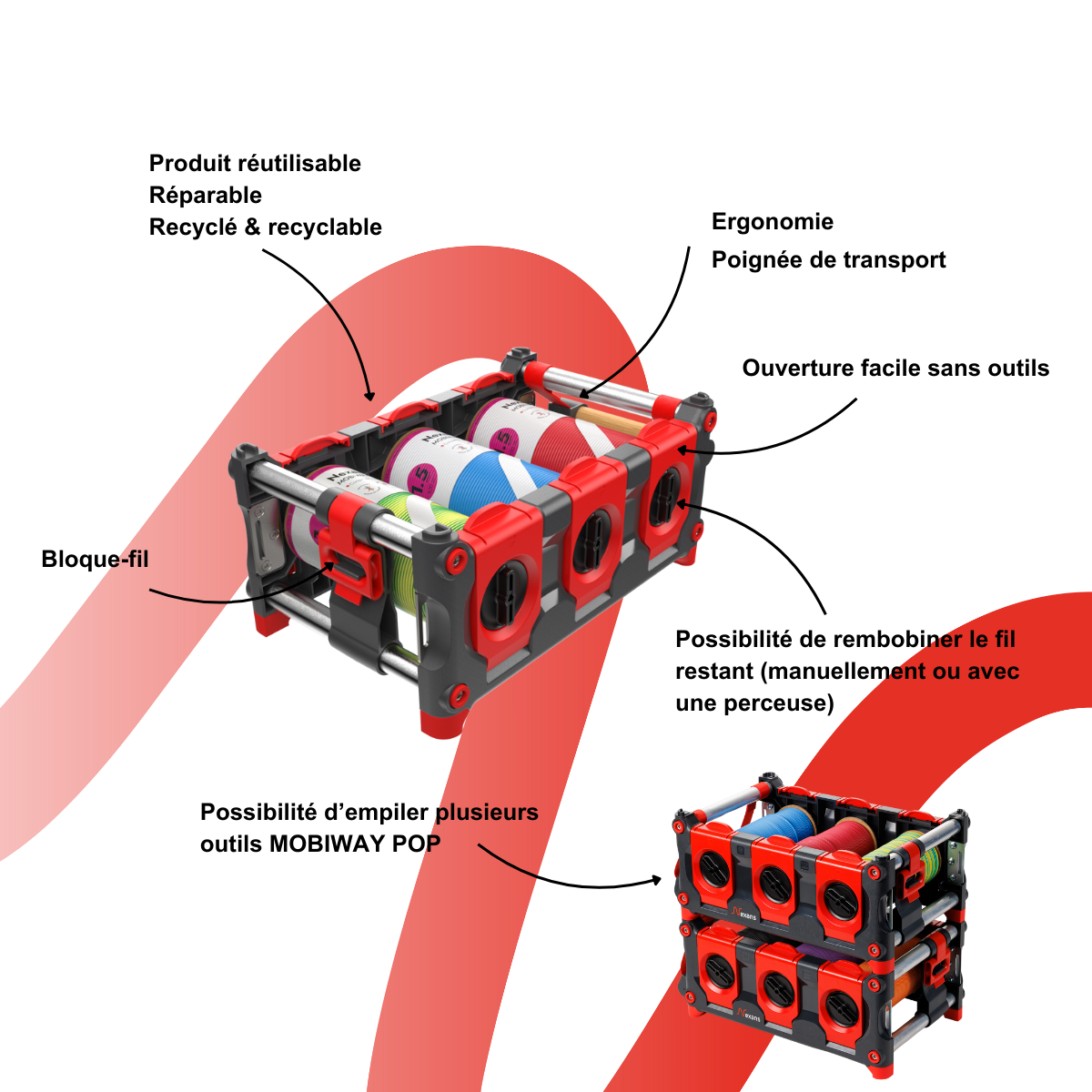

This innovative format reveals its full potential when combined with the Nexans Mobiway Pop tool, which further simplifies transport and allows up to six wires to be pulled simultaneously.
This new solution, perfectly adapted to professionals, improves working conditions by reducing uncomfortable postures and increasing safety on construction sites.

Environment
100% sustainable
0 disposable plastic
100% recyclable cardboard spool

Engagement
Ergonomic and safe, 67% fewer uncomfortable postures
Optimised safety for installers
Ease of transport

Economy
30% space saving

Design

  1. Conductor

Bare copper class 1

  1. Insulation

PVC

Different colours


INSTALLATION

Open air, in conduit, in cable trunking, in cable ducting. Thanks to the sliding properties of insulation, H07V-U is made to facilitate processing while pulling in.

Permissible current and voltage drop are given

For conductor laid alone in insulating tube on a wall Temperature = 30°C. Permanent operation
If conditions are different, apply correction factors from NF C 15-100 standard or other equivalent national standard.

Voltage drop

Calculated with Cos phi = 0.8



MARKING

S.Y + USEH07V-U n° Plant

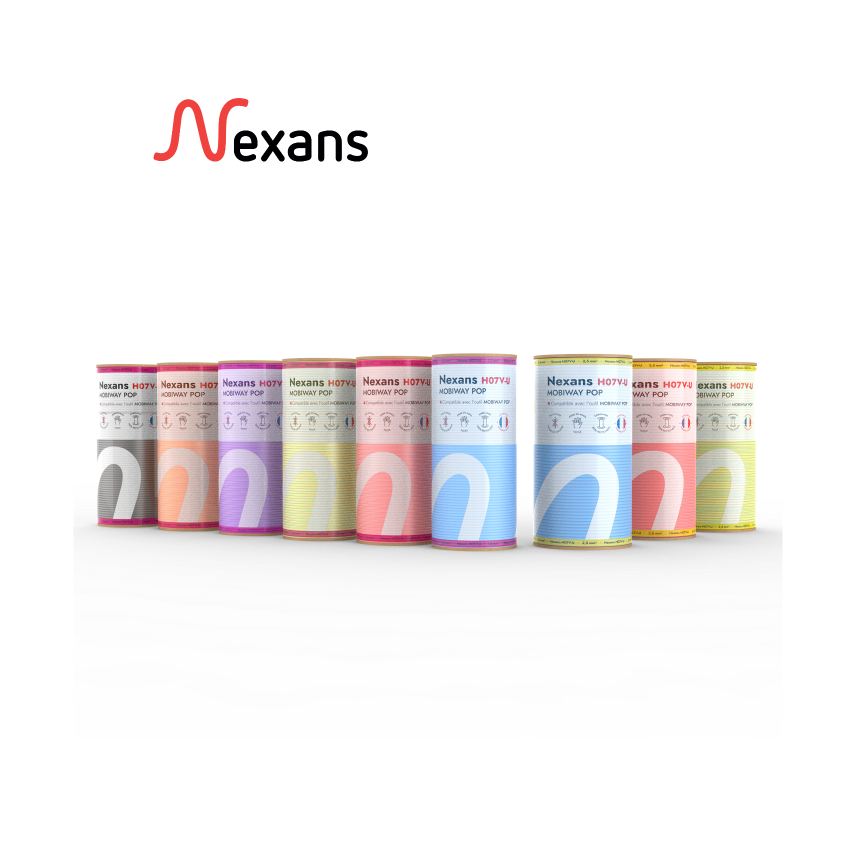

Range and colours

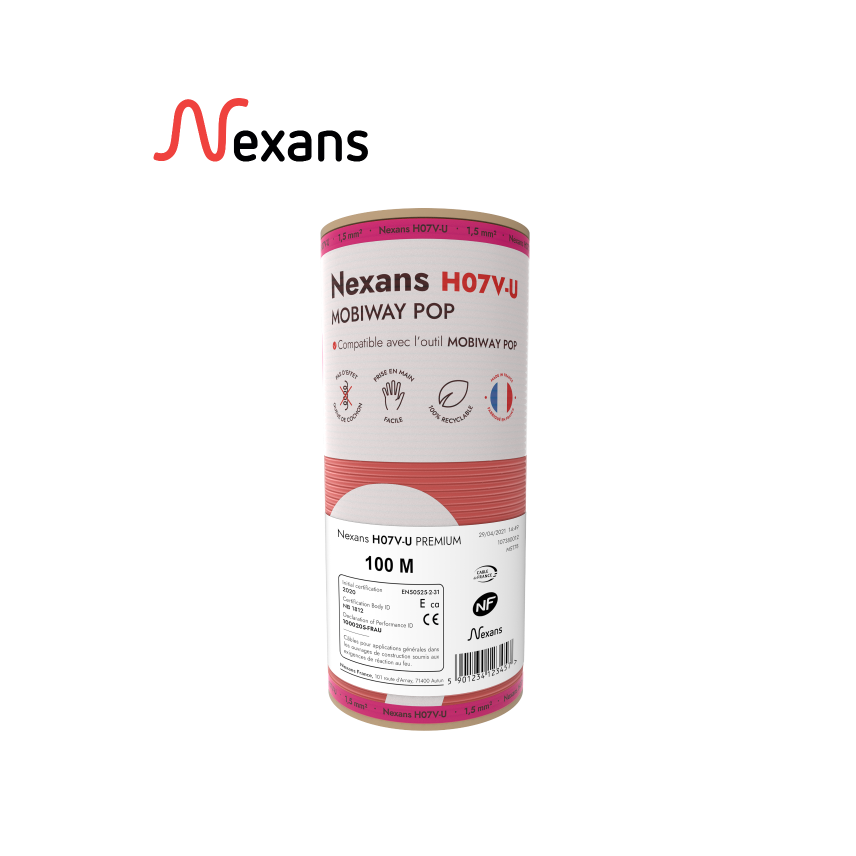

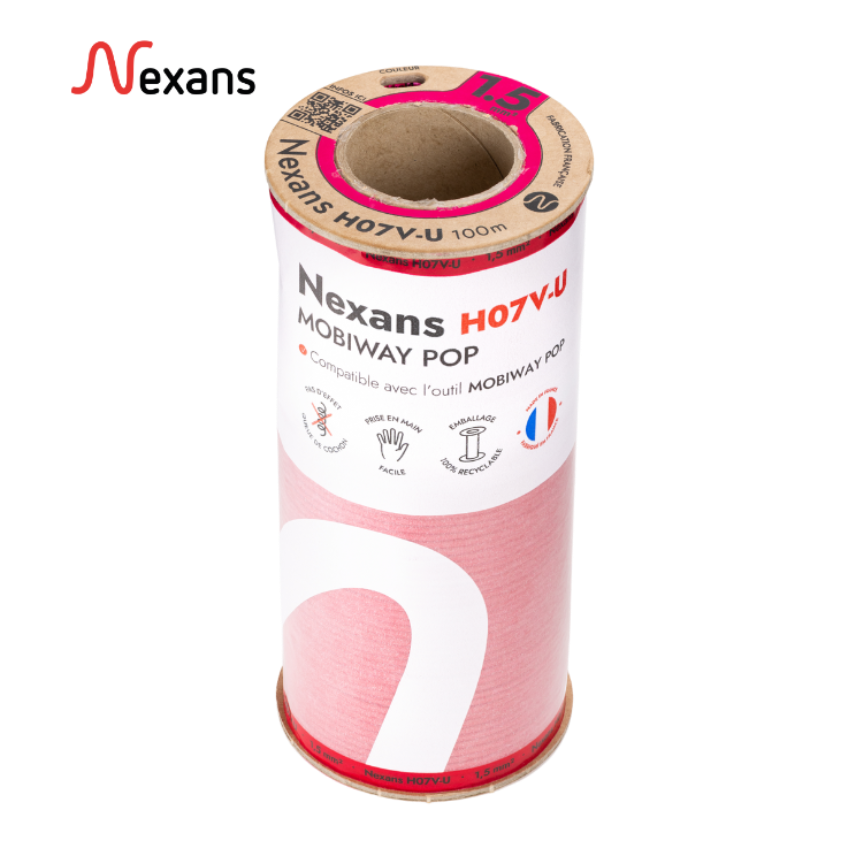

Nexans MOBIWAY POP spool

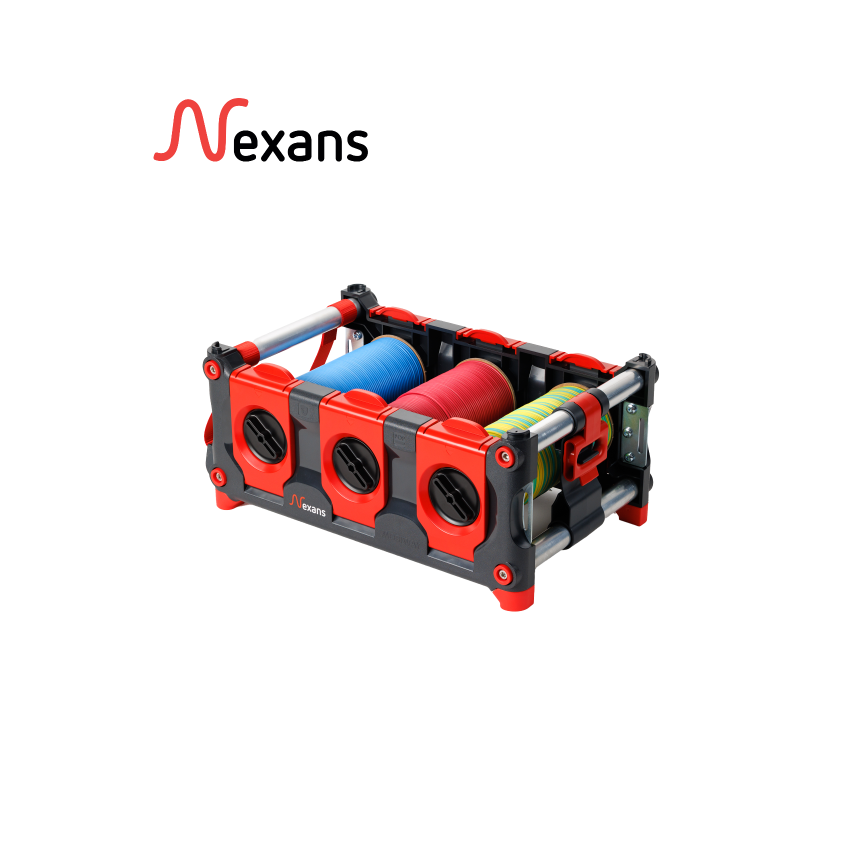

Nexans MOBIWAY POP tool

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Solid class 1
Conductor material
Bare copper
Conductor shape
Circular
Insulation
PVC
Lead free
Yes
Sheath colour
Red

Dimensional characteristics

Dimensional characteristics

Approximate weight
18 kg/km
Conductor cross-section
1.5 mm²
Maximum outer diameter
3.2 mm
Number of cores
1

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450/750 V
Permissible current (one phase)
17.5 A
Permissible current rating (3 conductors)
15.5 A
Voltage drop, 3 conductors
20.0 V/A.km
Voltage drop, single phase
23.0 V/A.km

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Low

Usage characteristics

Usage characteristics

Flame retardant
Max. conductor temperature in service
70 °C
Short-circuit max. conductor temperature
160 °C
Operating temperature, range
-5 ... 60 °C
Weather resistance
No
Chemical resistance
Accidental
Water proof
Low
Laying operation bending radius
- mm
Length
100 m
Minimum static operating bending radius
- mm
Packaging
Spool 100 m

Resources

Resources

Documentation

Declaration of Performance

  • Declaration of Performance n� : 1000230-FRAU
  • Certification Date : 10/14/24
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : NB 1812
  • Declared performance : Eca
