Nexans H07V-U MOBIWAY POP 1X2.5 blue C100m
Nexans H07V-U MOBIWAY POP 1X2.5 blue C100m
Conductors without external sheath, PVC insulation, for general use packaged in a 100% sustainable recyclable cardboard spool. Nexans H07V-U conductors are designed for domestic installations, housing, etc... They are specially designed for panel wiring. They are suitable for fixed and protected installations, in lighting and control devices for voltages less than or equal to 1000V in alternating current and less than or equal to 750V in direct current to earth.
Read more- Nexans ref. : 10287158
- Country ref. : 01273358
- EAN : 3427500036464
Description
Description
Standards
-
ProductEN 50525-2-31; HD 21.3; IEC 60227-1; NF C32-201/3
Application
Nexans H07V-U conductors are used for fixed protected installations : i.e. ligths or control gear (from offices, domestic or commercial buildings ...) with voltage ≤ 1000V AC or ≤ 750 V DC . ...
Design
- Conductor
Bare copper class 1 - Insulation
PVC
Différent colors.
Installation
Open air, in conduit, in cable trunking, in cable ducting. Thanks to the sliding properties of insulation, H07V-U is made to facilitate processing while pulling in.
Permissible current and voltage drop are given
For conductor laid alone in insulating tube on a wall Temperature = 30°C. Permanent operation
If conditions are different, apply correction factors from NF C 15-100 standard or other equivalent national standard.
Voltage drop
Calculated with Cos phi = 0,8
Marking
S.Y + USE «har» H07V-U factory number

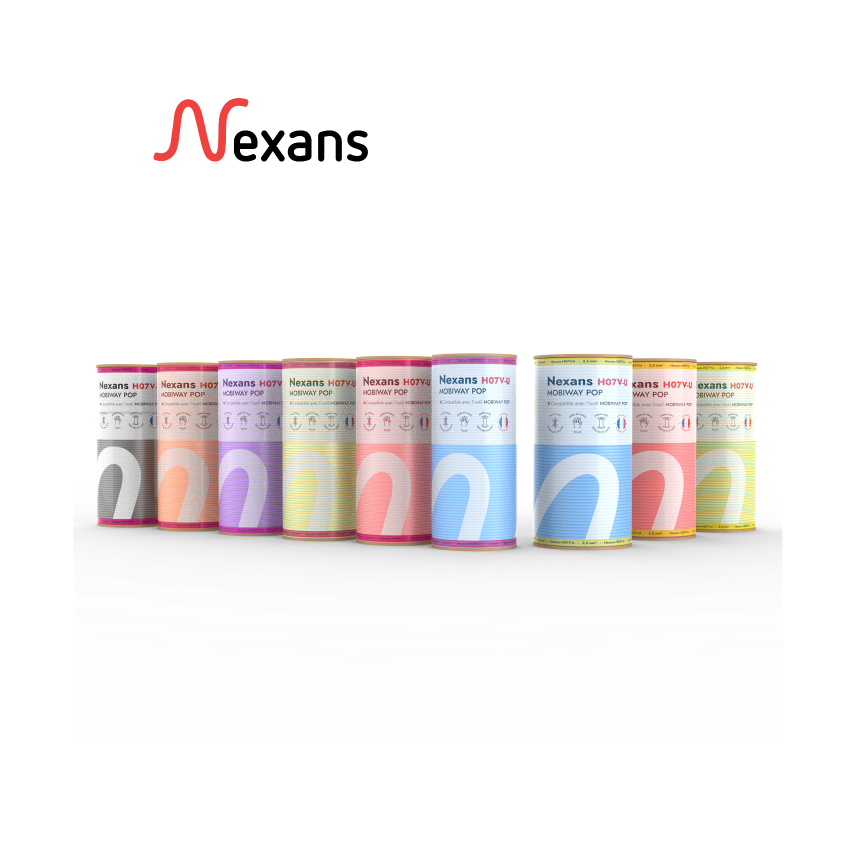

Range and colours

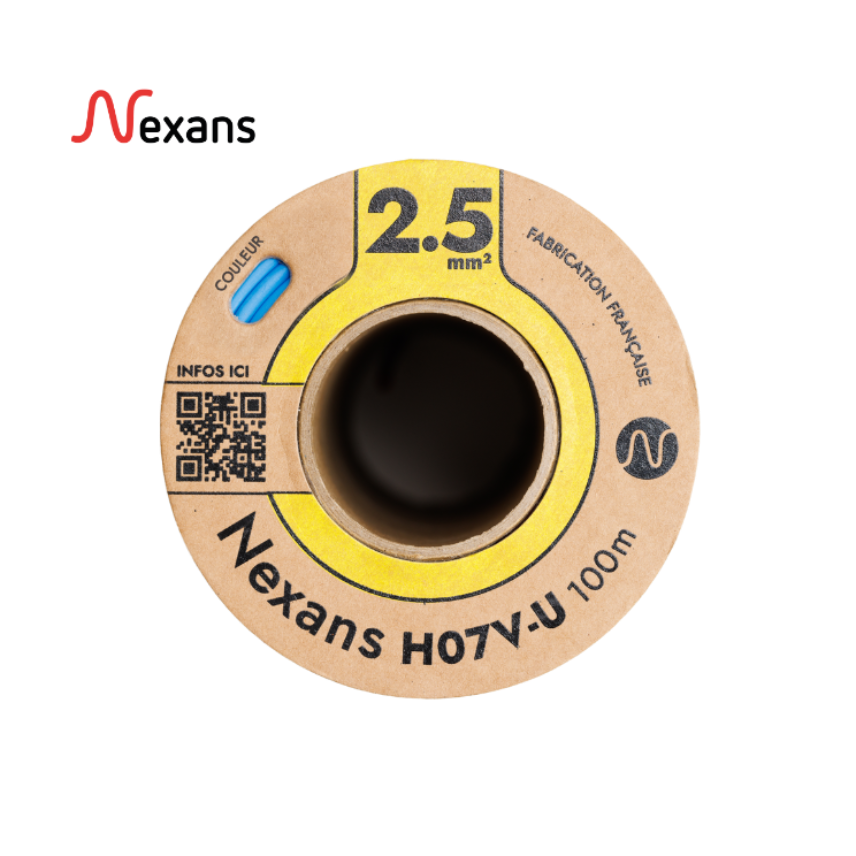

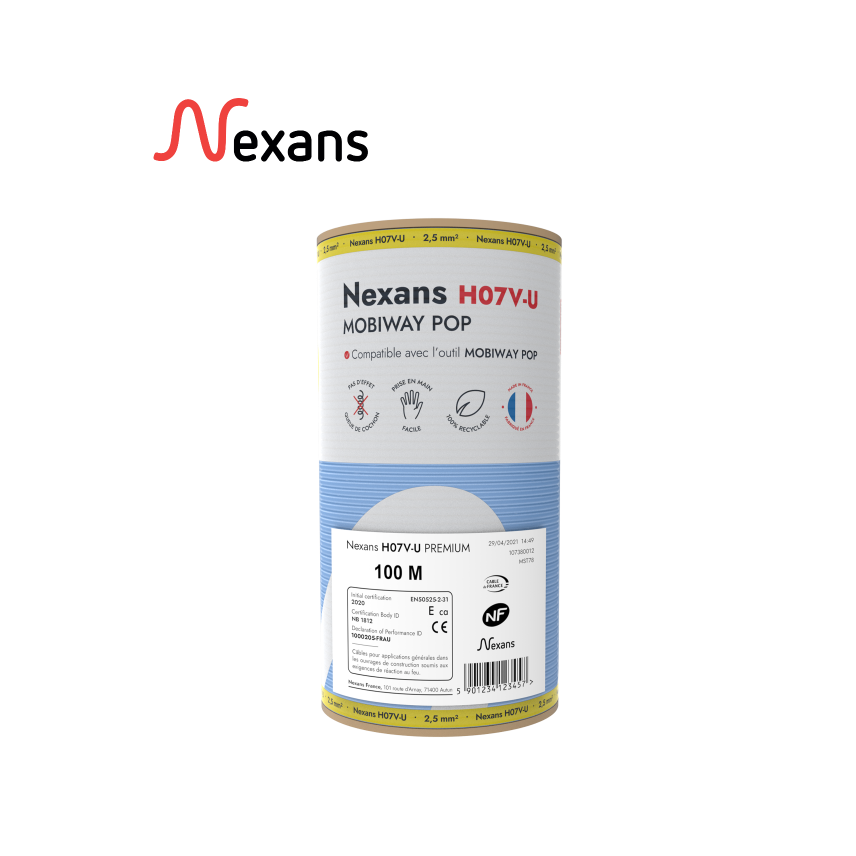

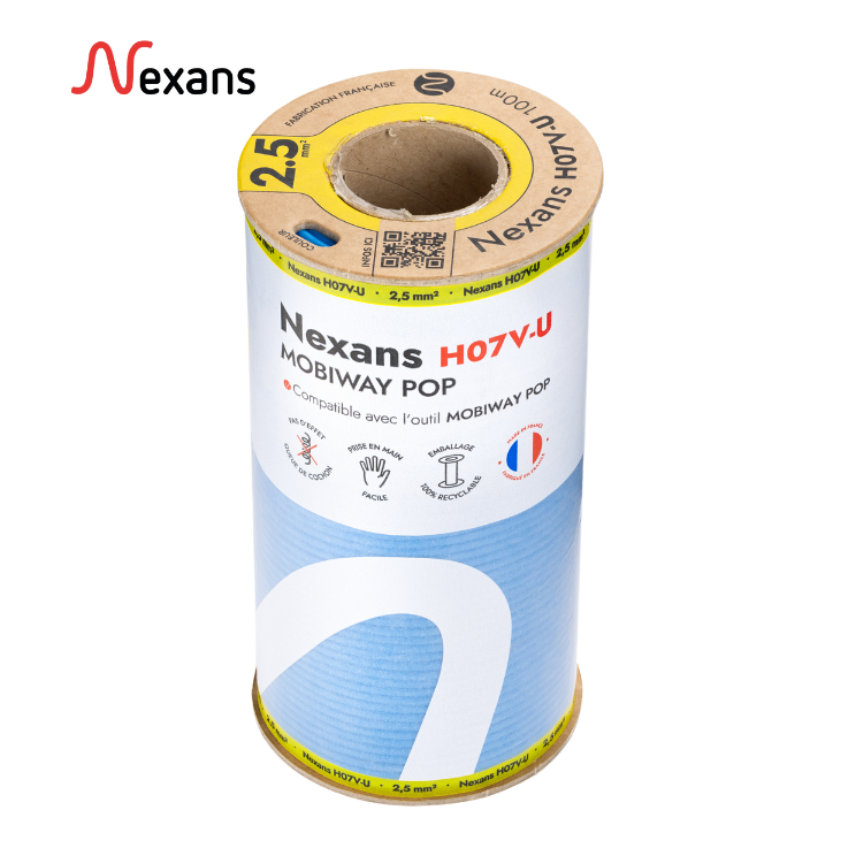

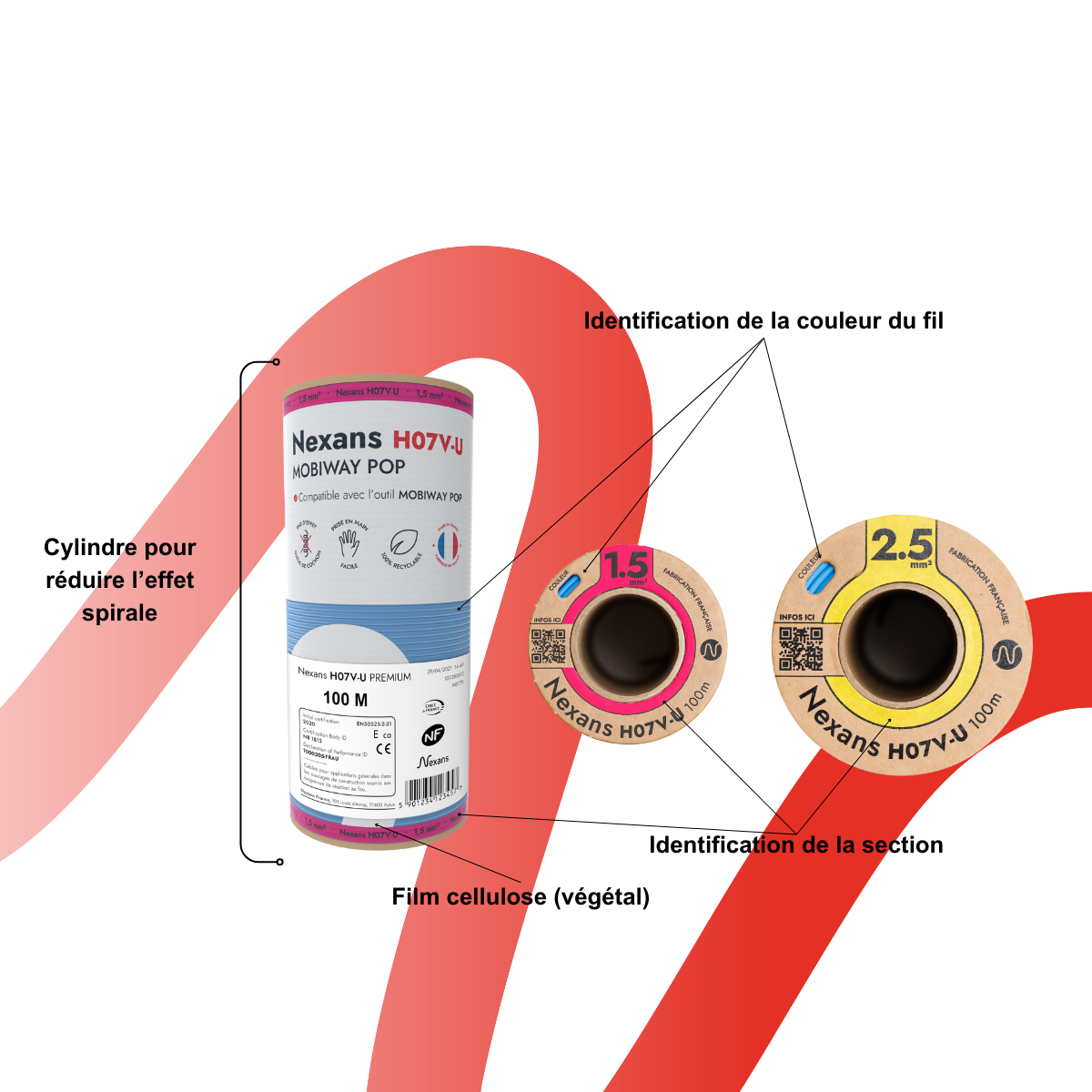

Nexans MOBIWAY POP spool

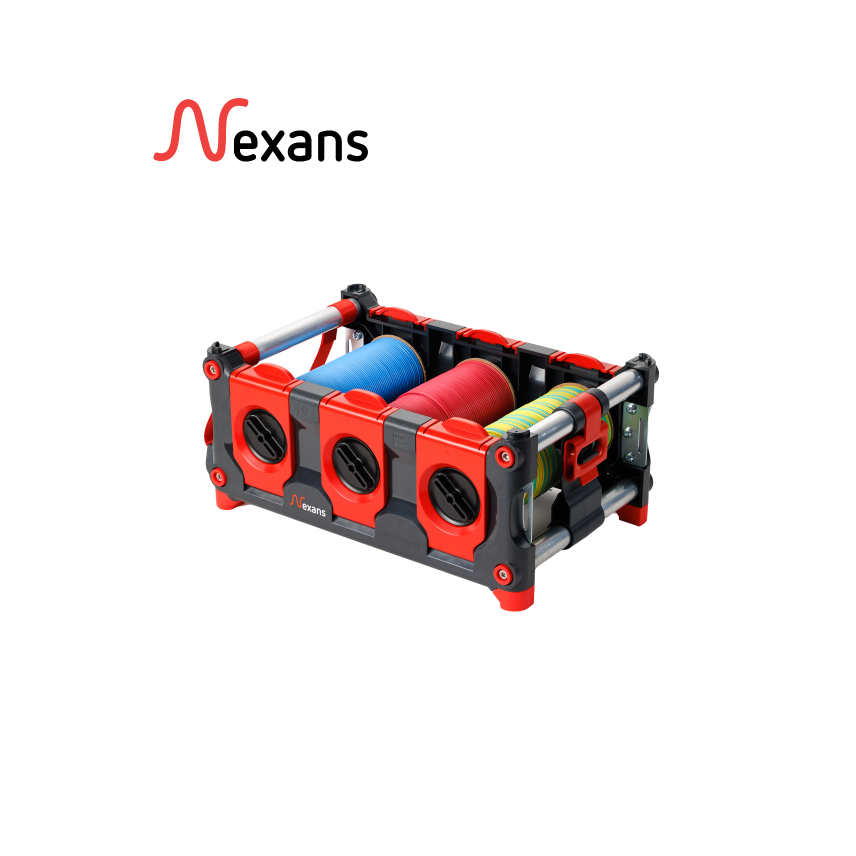

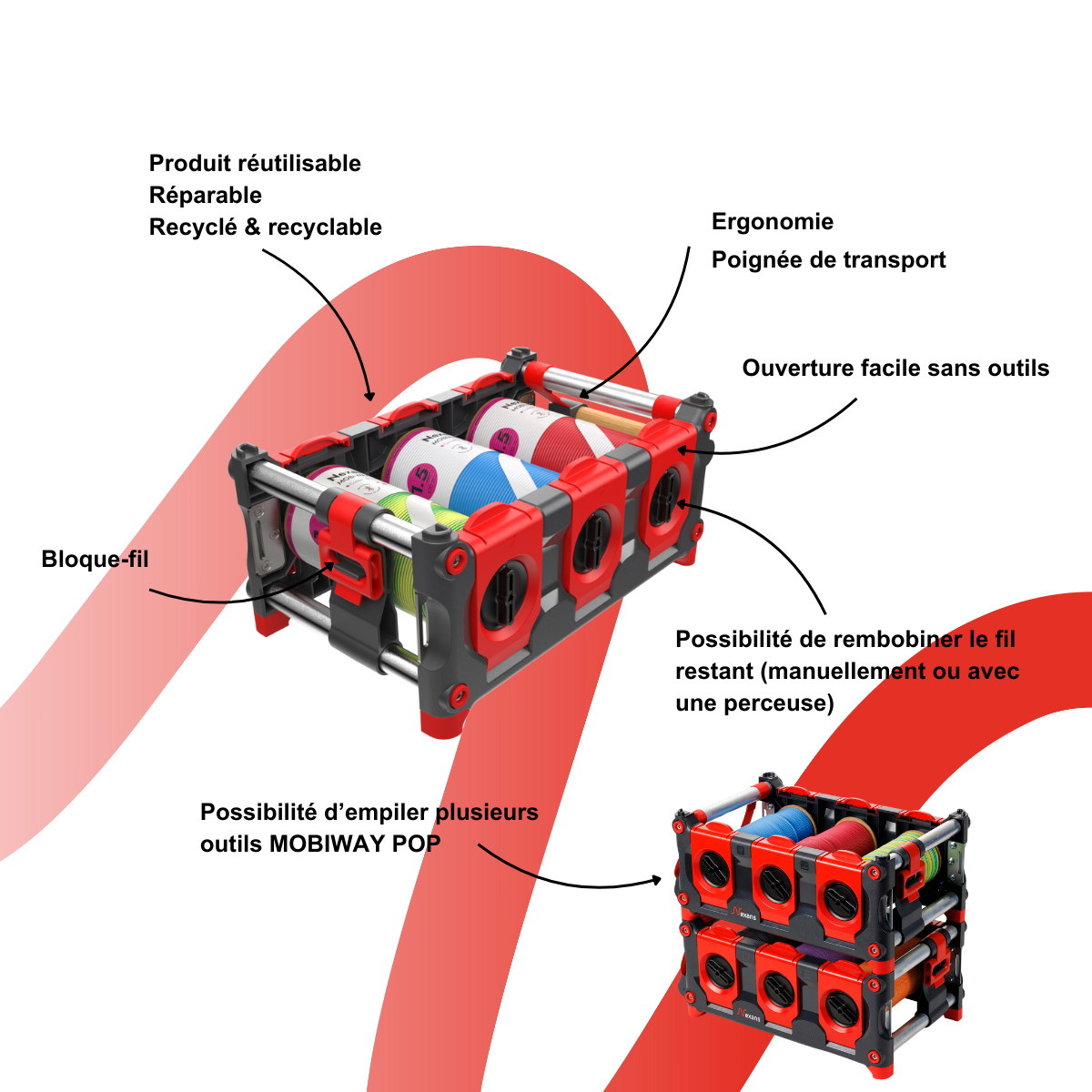

Nexans MOBIWAY POP tool
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Declaration of Performance
- Declaration of Performance n� : 1000230-FRAU
- Certification Date : 10/14/24
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : NB 1812
- Declared performance : Eca
