Description
Description

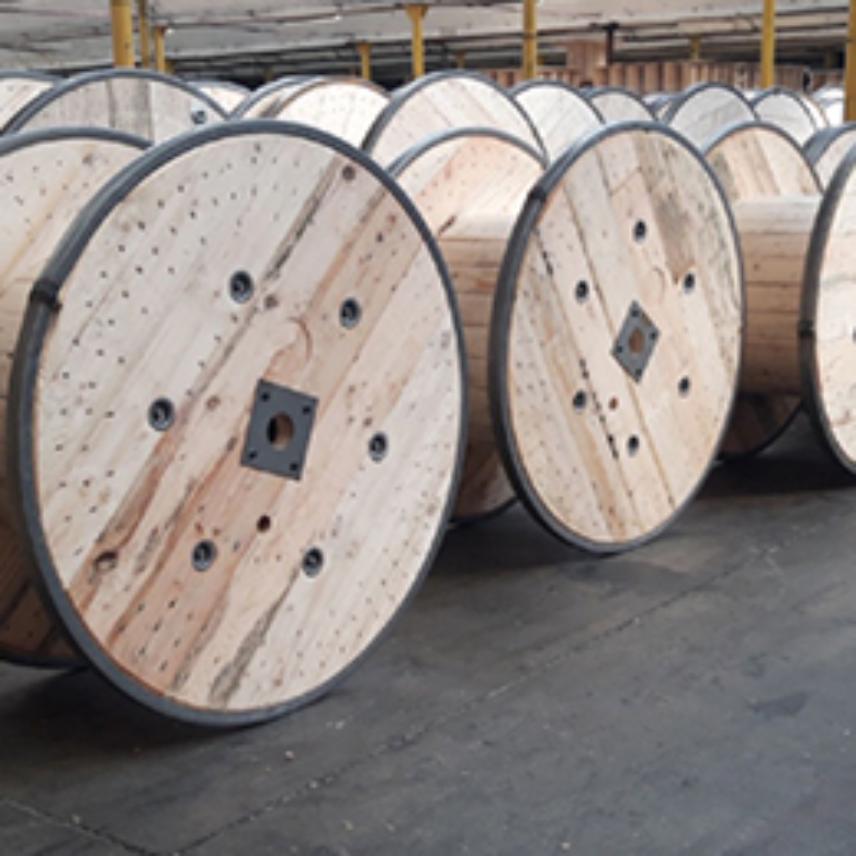

Steel Feeted drums are reinforced using iron profiles on the edge of the flanges in order to be multiway drums.
Dimension
Standard dimensions:
- Flanges Steel Fitted
- Diameter: From 450 to 2600mm
- Thickness: From 25 to 100 mm
- Cores
- Diameter: From 150 to 2000mm
- Used Width: From 100 to 2000mm
Options possible: metal plates, labelling, painting, treatment (ISMP15, Class II, Class III...)....
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Type of steel plates
-
Barrel material
-
Flange material
-
Nb of metal rods
- U
Rough tare
977 kg
Dimensional characteristics
Dimensional characteristics
Flange diameter
2600 mm
Barrel diameter
1400 mm
Width between flanges
1000 mm
Flange thickness
84 mm
Barrel thickness
- mm
Arbor-hole diameter
- mm
Diameter Cable end on inner side
110 mm
Diameter of drive hole
- mm
End support thickness
- mm
Length cable end on inner side
- mm
Radius of drive hole
- mm
Rod diameter
- mm
Steel plates dimensions
-
Washers dimensions
- mm
Width
1168.00 m
Mechanical characteristics
Mechanical characteristics
Carrying capacity
6000 kg
Usage characteristics
Usage characteristics
Packaging treatment
-
Used volume
- m3
