Nexans SIWO-KUL® B10 1.1 / 1.5 kV
Nexans SIWO-KUL® B10 1.1 / 1.5 kV
SIWO-KUL® B10 1.1 kV MV high temperature flexible cables designed with a PET braid, PUR varnished
Read moreSIWO-KUL B10 1x2.5 1,1KV YE
Nexans ref. 10148808
- Packaging: Cut to length (m)
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 5.1 mm
- Conductor diameter: 1.95 mm
SIWO-KUL B10 1x4.0 1,1KV YE
Nexans ref. 10148821
- Packaging: Cut to length (m)
- Conductor cross-section: 4 mm²
- Nominal outer diameter: 5.55 mm
- Conductor diameter: 2.4 mm
SIWO-KUL B10 1x6.0 1,1KV YE
Nexans ref. 10533992
- Packaging: Cut to length (m)
- Conductor cross-section: 6 mm²
- Nominal outer diameter: 6.0 mm
- Conductor diameter: 2.85 mm
SIWO-KUL B10 1x10 1,1KV YE
Nexans ref. 10533947
- Packaging: Cut to length (m)
- Conductor cross-section: 10 mm²
- Nominal outer diameter: 6.95 mm
- Conductor diameter: 3.8 mm
SIWO-KUL B10 1x16 1,1KV YE
Nexans ref. 10533949
- Packaging: Cut to length (m)
- Conductor cross-section: 16 mm²
- Nominal outer diameter: 8.9 mm
- Conductor diameter: 5.55 mm
SIWO-KUL B10 1x25 1,1KV YE
Nexans ref. 10148807
- Packaging: Cut to length (m)
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 10.3 mm
- Conductor diameter: 7.1 mm
SIWO-KUL B10 1x35 1,1KV YE
Nexans ref. 10148824
- Packaging: Cut to length (m)
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 11.6 mm
- Conductor diameter: 8.3 mm
SIWO-KUL B10 1x50 1,1KV YE
Nexans ref. 10148825
- Packaging: Cut to length (m)
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 13.6 mm
- Conductor diameter: 10.0 mm
SIWO-KUL B10 1x70 1,1KV YE
Nexans ref. 10148826
- Packaging: Cut to length (m)
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 15.5 mm
- Conductor diameter: 11.85 mm
SIWO-KUL B10 1x95 1,1KV YE
Nexans ref. 10148827
- Packaging: Cut to length (m)
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 17.6 mm
- Conductor diameter: 13.6 mm
SIWO-KUL B10 1x120 1,1KV YE
Nexans ref. 10148828
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 19.6 mm
- Conductor diameter: 15.45 mm
SIWO-KUL B10 1x150 1,1KV YE
Nexans ref. 10533948
- Packaging: Cut to length (m)
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 22.9 mm
- Conductor diameter: 17.6 mm
SIWO-KUL B10 1x185 1,1KV YE
Nexans ref. 10148830
- Packaging: Cut to length (m)
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 24.3 mm
- Conductor diameter: 19.1 mm
SIWO-KUL B10 1x240 1,1KV YE
Nexans ref. 10148995
- Packaging: Cut to length (m)
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 26.9 mm
- Conductor diameter: 21.8 mm
SIWO-KUL B10 1x300 1,1KV YE
Nexans ref. 10162914
- Packaging: Cut to length (m)
- Conductor cross-section: 300 mm²
- Nominal outer diameter: 30.6 mm
- Conductor diameter: 25.3 mm
Description
Description
Standards
-
ProductCSA C22.2 N° 210-05; EN 45545 - HL3; IEC 60228; UL 758
-
InstallationIEC 60092
-
TestIEC 60331; IEC 60332-1; IEC 60332-3-22; IEC 60332-3-24; IEC 60754-1; IEC 60754-2; IEC 61034
Application
- Connection of rotating machines windings, like motors, alternators, generators.
- Cabling of static devices, like power converters, motor drives, power cabinets, transformers
- Adapted for wind turbines, marine and offshore, rollingstock, photovoltaic, energy storage systems

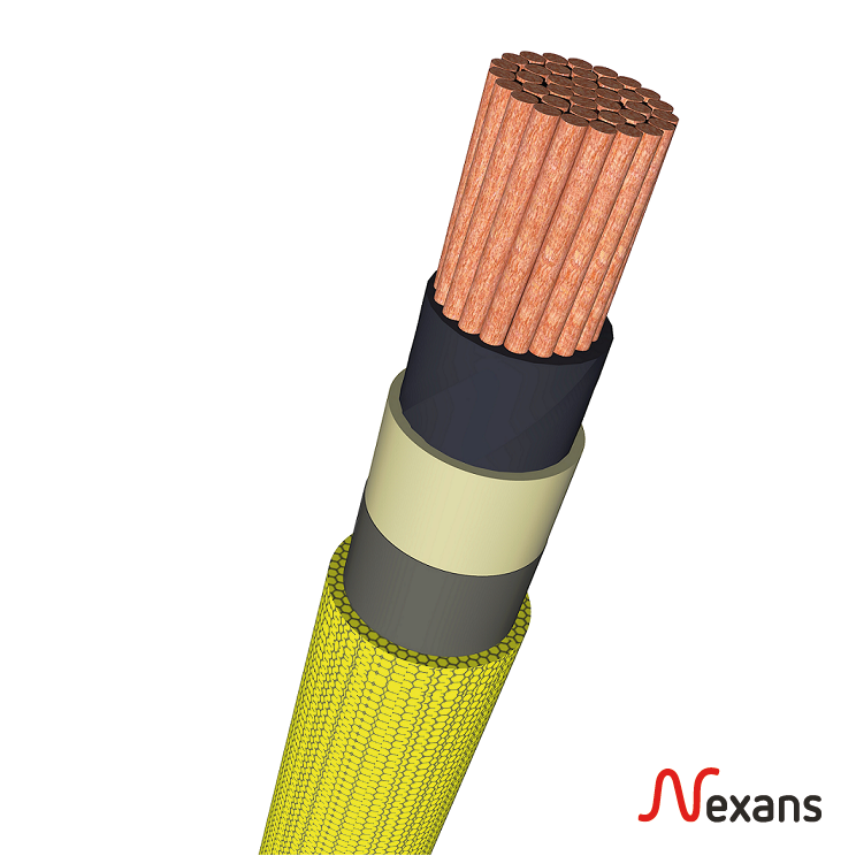

Construction
- Flexible tin-plated copper conductor class 5 as per IEC 60228, other class in option
- High grade silicon rubber insulation
- Mechanical protection by PUR varnished synthetic fibre braid for enhanced friction resistance
Properties
- Operating temperature in continuous mode -55°C to +180°C
- Resistance to thermal shocks, UV and oils
- Enhanced friction resistance with the PUR varnished range
- Compatibility to VPI impregnation resins
- Type approval certificate : Lloyds Register LR21139304TA
- Type approval certificate : BV Marine & Offshore 09555/D0 BV, file : ACE 01/723/01
- Certificate of compliance : UL758 AWM Style 3640, file : AVLV2.E45073
- Certificate of compliance : CSA Standard C22.2 N°210-15, file : LL 36040 AWM
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Outer sheath
Synthetic yarn braiding
Conductor material
Tinned copper
Halogen free
Yes
Insulation
Special Silicone
Electrical characteristics
Electrical characteristics
Operating voltage
1.1 kV
Test voltage
5 kV
Breakdown voltage
10 kV
Breakdown field strength (kV/mm)
> 20
Usage characteristics
Usage characteristics
Maximum operating temperature
180 °C
Minimum operating temperature
-55 °C
Fire resistant
IEC 60331
Fire retardant
IEC 60332-3
Flame retardant
IEC 60332-1
Gases corrosivity
IEC 60754-1; IEC 60754-2
Oil resistance
Yes
Operating temperature, range
-55 ... 180 °C
Ozone resistance
Yes
Smoke density
IEC 61034
U.V resistance
Yes
Resources
Resources
Documentation
UL Certificate
pdf — 42.5 kB
IEC Certificate 1.1KV
pdf — 278.2 kB
CSA Certificate
pdf — 106.0 kB
Bureau Veritas Certificate
pdf — 124.3 kB
Lloyd's register Certificate
pdf — 381.9 kB
REACH ROHS Certificate 2018
pdf — 58.3 kB
ISO 9001/ 14001/ 18001 certificate 2020
pdf — 430.9 kB
