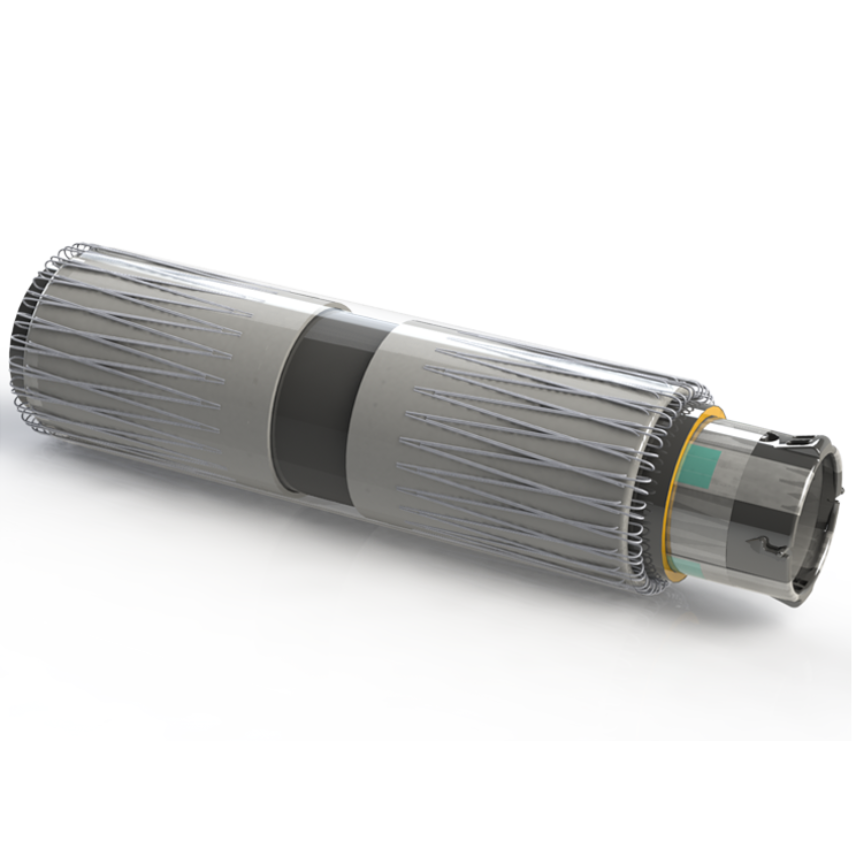

J3UP Compacte RF-RSM-36-185/400 AL/CU

Description

Description

Standards

  • Product
    H-M24-2010-02164
  • Test
    HD 629.1 S2; NF C33-050
  • National
    HN 68-S-91

Features & benefits

The 36CSJ-S RF RSM combines Cold-Shrink and bolted connectors technologies for reliable undergound MV connections in a small trench (max=1 m).

Bolted Connectors :

  • multisection, from 185 mm² to 400 mm².
  • compatible with copper & aluminium cores.
  • compatible with Synthtic Insulated Cables (SIC).
  • equipped with self-breaking screws, for a perfect torque.
  • no specific tool needed

Application

The 36CSJ-S has been designed to connect 18/30(36) kV SIC cables, with sections from 185mm² to 400 mm², whether aluminium or cuivre cores, on undergounnd MV lines.

Each coreis connected thanks to a bolted connector..

Details

Each 36CSJ-S RF RSM kit is made of:

- 3 cold shrinkable body.

- 3 bolted connector.

screen interconnection device.

Installation

This technolog requires no heating source, no material filling or wrapping. Operating is done by removal of the blue tubes. Joints can be enpowered once assembly is finished.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper or Aluminum
Technology
Cold shrink

Dimensional characteristics

Dimensional characteristics

Conductor cross-section, range
185 ... 400 mm²
Diameter over insulation, range
23 ... 42 mm
External diameter of the main cable, range
- mm
Maximum outer diameter
52.0 mm

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
18 / 30 (36) kV

Usage characteristics

Usage characteristics

Ambient installation temperature, range
0 ... 40 °C
