JRRTMP-RF-RSM-24-95/240 Al/Cu
JRRTMP-RF-RSM-24-95/240 Al/Cu

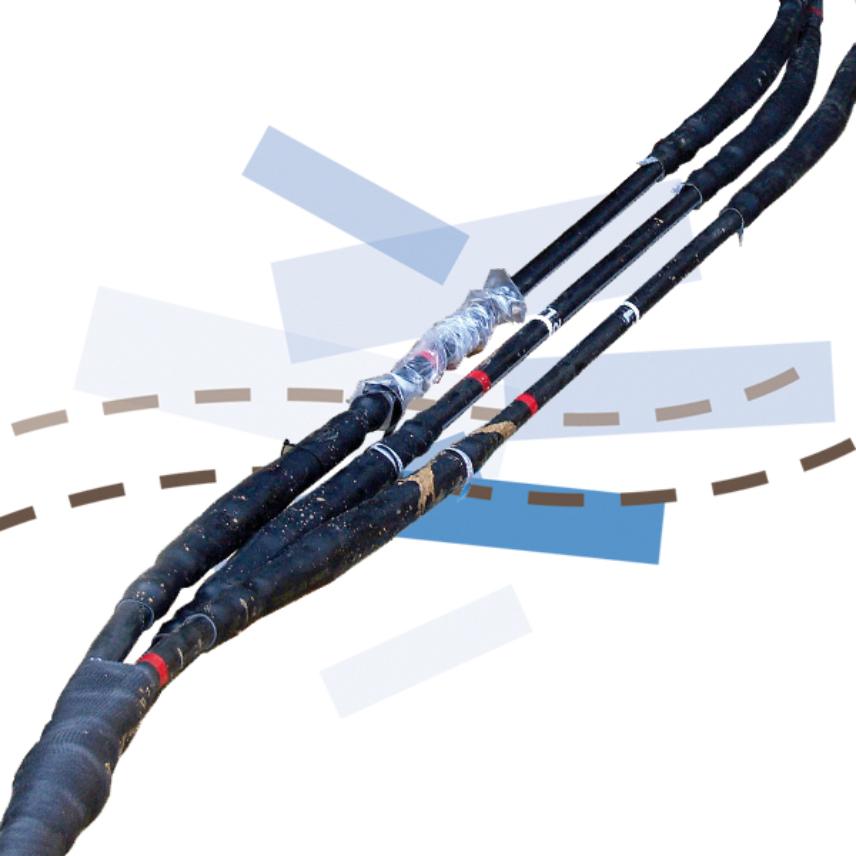

Cold shrinkable accessory for maintaining or repairing a junction of polymeric and paper insulated cables, with bolted connectors.
To be directly buried. The product is fully screened and fully submersible.
- Nexans ref. : 62766E
- Country ref. : Codet Enedis : 67 90 727
Description
Description
Standards
-
ProductC 33-050
-
TestHD 629.1 S2
Features & Benefits
The combination of cold-shrink technology and bolted connectors for a simpler and faster mounting.
Application
This accessory is provided for repairing a joint of a synthetic or paper insulated cable, voltage 12/20 (24) kV, complying with standards C 33-226, NF / UTE C 33-223 and NF C 33-220.
Details
The accessory consists of a set of two joints, to which is added a sealed braiding system.
It can be used with aluminium or copper core cables, for section from 70mm² (paper insulated cables) and 95mm² (synthetic insulated cables) to 240 mm² (both).
Installation
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information

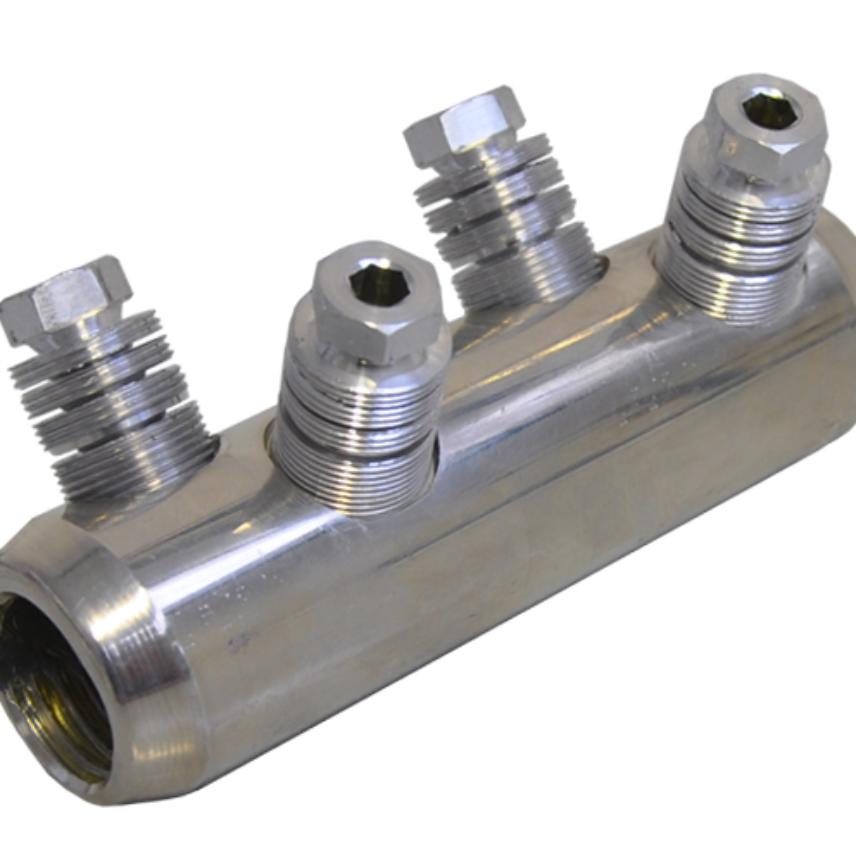

Each package contains 2 kits according to the kind of insulation of the cables to connect, and 3 synthetic insulated cables of 1,5 m each (prepared and ready to be assembled). The mechanical connectors are also included.
