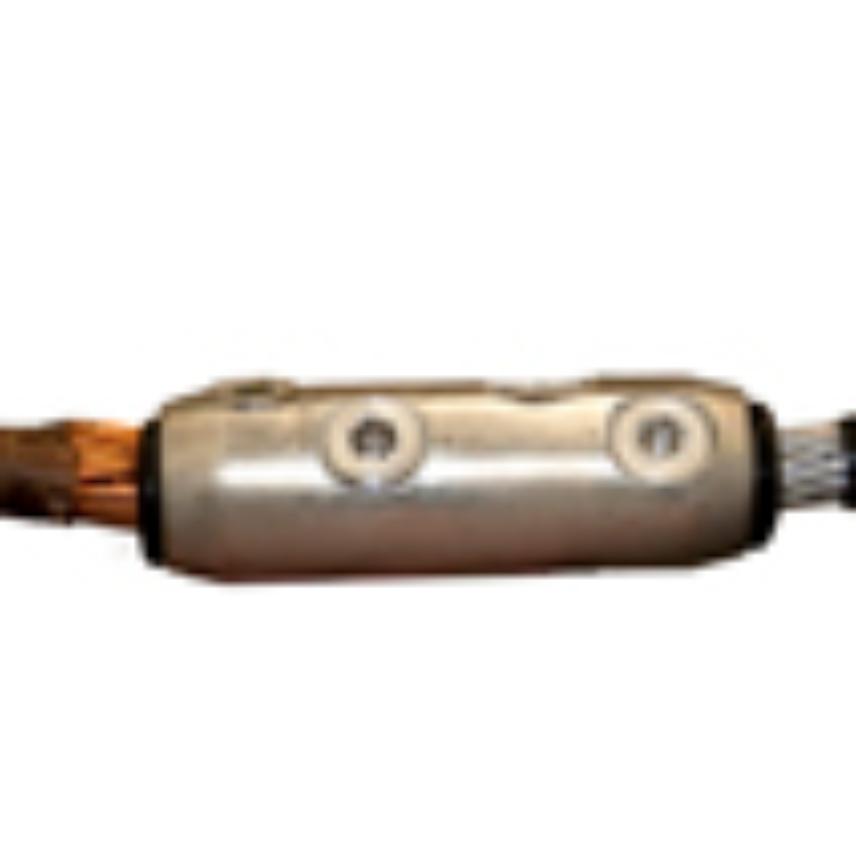

JTR3-RSM-24-50/240 Al/Cu Ceinture
JTR3-RSM-24-50/240 Al/Cu Ceinture
2000 cable compatible
Read more- Nexans ref. : 62763N
- Country ref. : Codet Enedis : 67 90 368
Description
Description
Standards
-
TestCENELEC HD 629.1; CENELEC HD 629.2
Use
Permanent connection of single or three core paper or synthetic insulated MV cables.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Technology
Wrapped
Conductor material
Copper or Aluminum
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
50 ... 240 mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
12 / 20 (24) kV
Dielectric withstand voltage, 50Hz 1mn
55 kV
Impulse voltage
125 kV
Usage characteristics
Usage characteristics
Ambient installation temperature, range
5 ... 40 °C
