CS2T-1250-D-24-630 ENS.3

Use

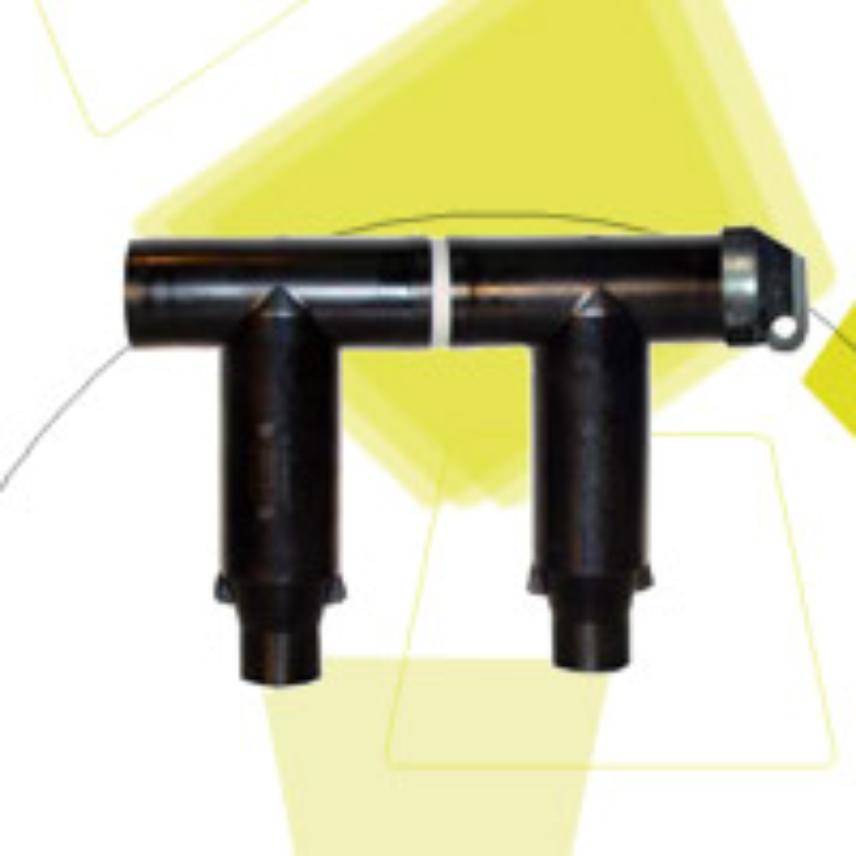

Double T separable connectors in interface D used at the same time to connect 2 insulated cables to MV transformers.

Standard

Set-up meets the C 33-051 standard.

Description

This set-up includes :

1. 1 male insulated dead-end plug (BIM-D-24) + cap.
2. 1 M16 copper nut.
3. 2 M16 copper dowels.
4. 2 separable connectors CST 800-D-24.
5. 1 junction piece PJ-1250-DD-24.

The outdoor conducting screen in EPDM provides a complete security of the thirds.

Each insulation piece is tested for industrial power frequency and partial discharge prior to leaving the factory.
