CS2T-1250/250-D/A-24-630 ENS.3

Use

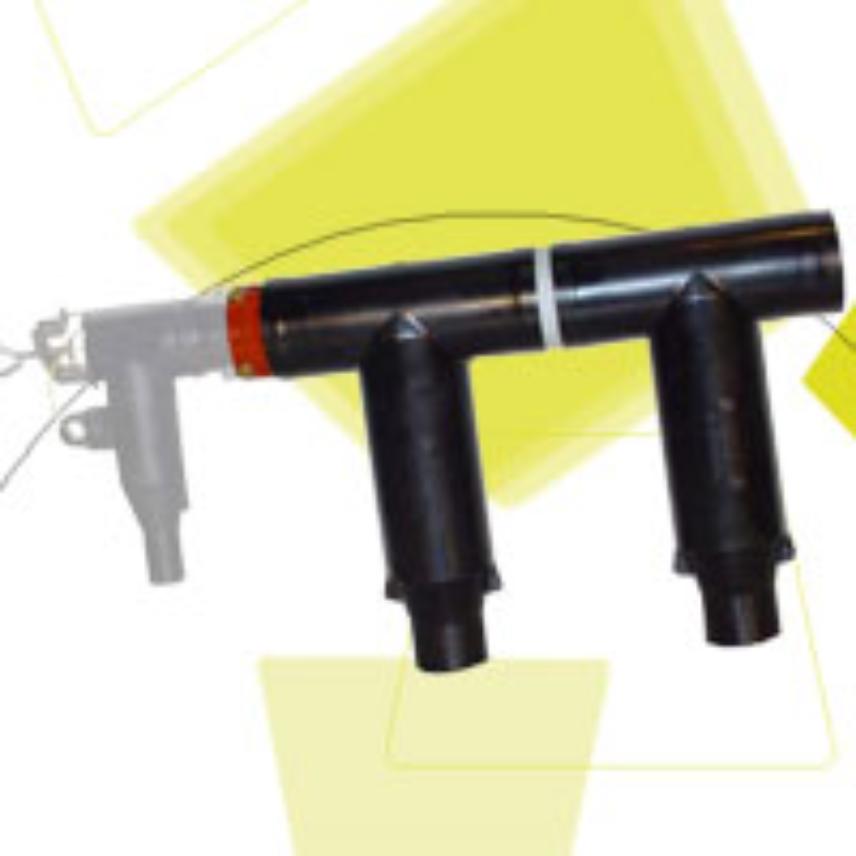

Double T separable connectors in interface D used with a branch joint to connect 2 insulated cables to MV transformers.

Standard

Set-up meets the C 33-051 standard.

Description

This set-up includes :

1. 1 transition piece PT-250-AD-24.
2. 1 M16 copper nut.
3. 2 M16 copper dowels.
4. 2 separable connectors CST 800-D-24.
5. 1 joint piece PJ-1250-DD-24.

The outdoor conductor screen in EPDM provides the complete security of the thirds.

Each piece is tested for industrial power frequency and partial discharge prior to leaving the factory.
