3 CSD-250-A-RSM-24-50/95 Al/Cu (K200SR)
3 CSD-250-A-RSM-24-50/95 Al/Cu (K200SR)

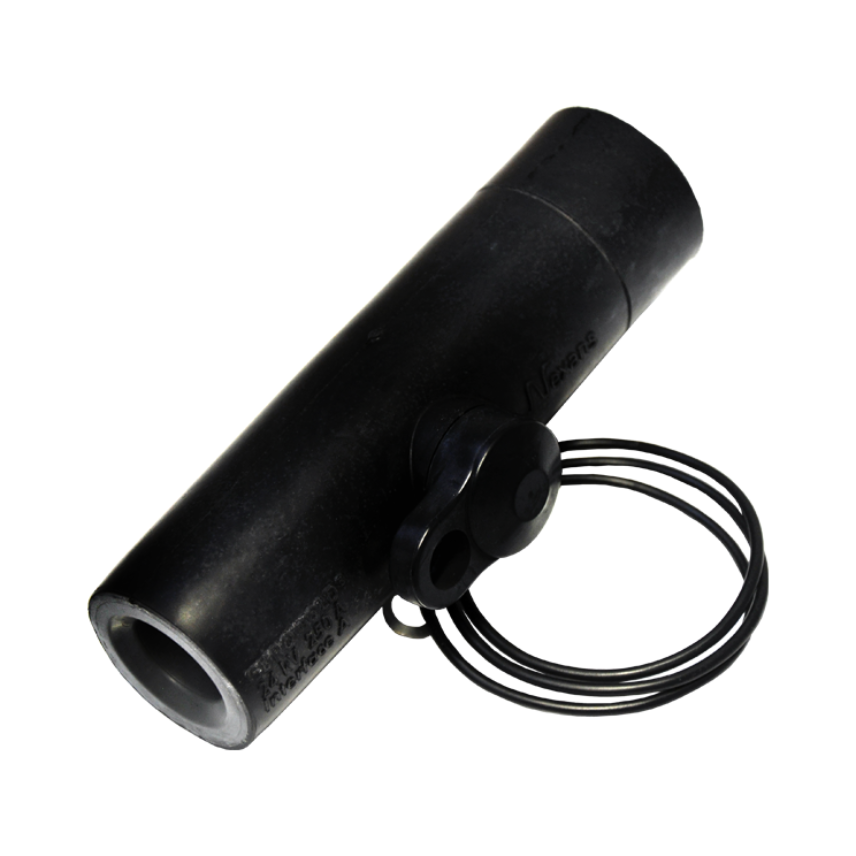

Kit of 3 straight separable connectors, 250 A, interface A.
Read more- Nexans ref. : 302440E
- Country ref. : Codet Enedis : 67 94 104
Description
Description
Standards
-
International2014/68/EU
-
NationalC 33-051
Use
This range of separable connectors enables the connection of a synthetic insulated MV cable to a MV equipment such as transformers, motors, switchboards, switches.
The products that are presented are designed for NF C33-226 and NF C 33-220 cables. For any other cable standard, contact us.
Lexicon
- CS = Separable connector
- E = Square
- D = Straight
- M = Male

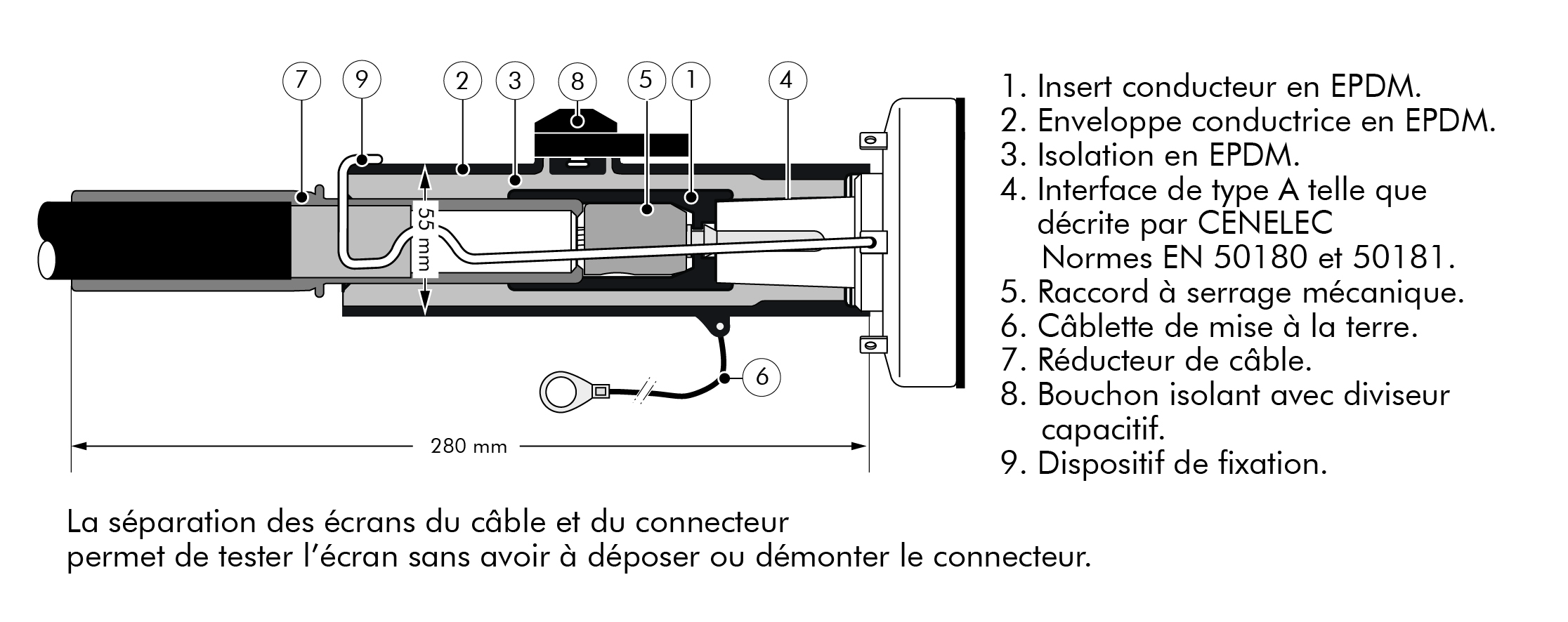

NOMENCLATURE CSD-250-A-RSM (K200SR)
INFORMATIONS
Chaque kit contient trois connecteurs, les notices de montage, les embouts à serrage mécanique, ainsi que les dispositifs de fixation.
Il est recommandé de stocker le produit dans un environnement à l'abri des intempéries, tempéré entre -10°C et +40°C.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Connector shape
Straight
Connector type
Female
Conductor material
Copper or Aluminum
Technology
Slip-0n
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
50 ... 95 mm²
Diameter over insulation, range
19.7 ... 22.5 mm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
12 / 20 (24) kV
Dielectric withstand voltage, 50Hz 1mn
55 kV
Impulse voltage
125 kV
Maximal partial discharge at 2Uo
10 pC
Usage characteristics
Usage characteristics
Interface
A (250 A)
Ambient installation temperature, range
0 ... 40 °C
