Cone-cutter 95
Cone-cutter 95
Preparation tools for synthetic MV cables
Read more- Nexans ref. : 52793N
- Country ref. : Codet Enedis : 07 57 821
Description
Description
Standards
-
ProductNF C33-220; NF C33-223; NF C33-226
-
NationalHN 33-S-22; HN 33-S-23; UTE C 33-223
Application

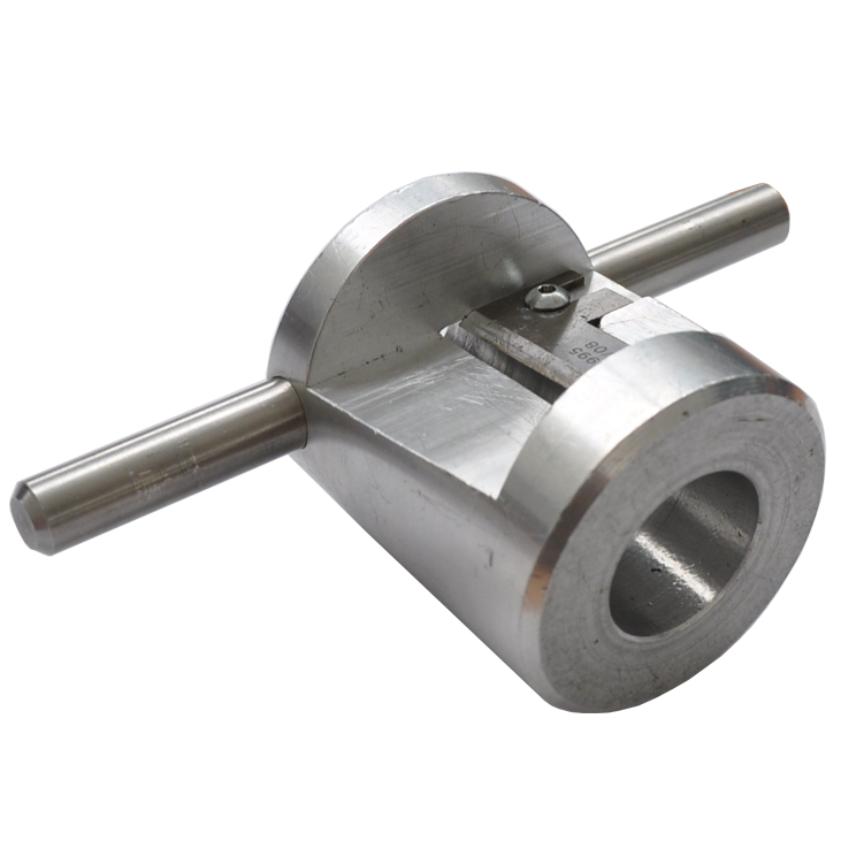

Tool to make a cone with a length of 30 to 40 mm on 5,5 mm thick insulation for synthetic insulated MV cable 95 mm² section, meeting the UTE C 33-223, NF C 33-226 standards with aluminum or copper core.
Packaging
Each cone-cutter is delivered with a blade and have to be separatly odered in accordance with the section of the cable.
Possibility to order the complete range of cone-cutter in the complete toolbox, as follows :
- 7 cone-cutters in the complete toolbox 50-630 (for cable section 50 to 630 mm²).
But also with an empty tool case type NCV .
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Type of cable
All types
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
95 ... 95 mm²
Usage characteristics
Usage characteristics
Adaptor
-
Function
Cone-cutter
Resources
Resources
Related products
