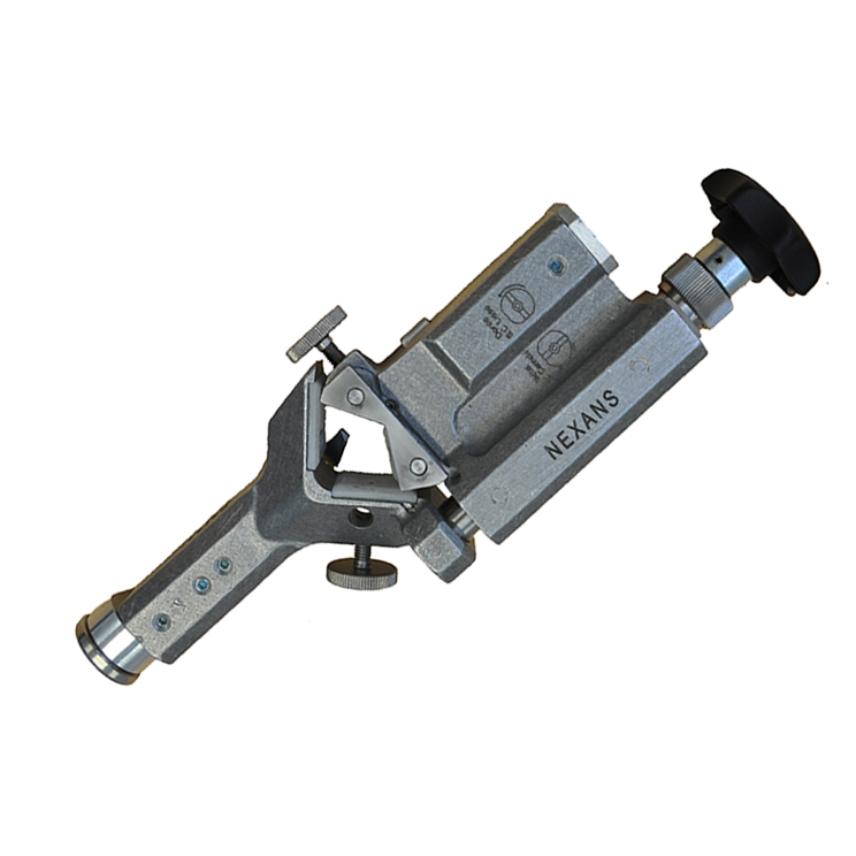

Adjustable and multi-function tool MULTITOOL GB-FLM20

Description

Description

Standards

  • Product
    NF C33-220; NF C33-223; NF C33-226
  • National
    HN 33-S-22; HN 33-S-23; UTE C 33-223

Application

The MULTITOOL GB-FLM 20 adjustable and multi-purpose tool enables the preparation of synthetic insulated MV cables from 35 to 630 mm², sheath diameter 20 to 58 mm meeting the  NF/UTE C 33-223, NF C 33-226  or  NF C 33-220 standards with aluminum or copper core.

Description

The MULTITOOL GB-FLM 20 enables with an unique tool to perform the following operations :

  • The cutting and removal of both external sheath and strippable external semi-conductor.
  • The removal of the strippable smooth or ribbed semi-conductor.
  • The removal of both insulation and internal semi-conductor.

The MULTITOOL GB-FLM 20 is equipped with two blades of which one inclined for the incision of the strippable semi-conductor.

Packaging

The MULTITOOL GB-FLM 20 is delivered with :

  • One replacement cutting blade and one remplacement semi-conductor incision blade.

Possibility to order this tool in a  reduced or complete toolbox or with an empty tool case type NVC.





Characteristics

Characteristics

Construction characteristics

Construction characteristics

Type of cable
Easy-strip semi-conductor

Dimensional characteristics

Dimensional characteristics

Conductor cross-section, range
35 ... 630 mm²

Usage characteristics

Usage characteristics

Adaptor
-
Function
Insulant, semi-conductor and sheath stripping
