AAAC 851-AL4 Gr-Int
AAAC 851-AL4 Gr-Int
Homogeneous aluminium alloy conductors from bare overhead lines.
Read more- Nexans ref. : 10057067
- Country ref. : 01248954
- EAN : 3427530000824
Description
Description
Standards
-
InternationalEN 50182; IEC 61089
Application
These homogeneous conductors in aluminium alloy show many advantages i.e lightness, high breaking load allowing long spans, simplificity of the accessories and lastly easy recycling. These conductors are suitable for the long spans network.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
-
Conductor material
-
Conductor shape
-
Type of cable
Inner greased Aster
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
851 mm²
Total number of wires
91
Wire diameter
3.45 mm
Bare wire diameter
38 mm
Approximate weight
2491 kg/km
Aluminium (or alloy) area
850.7 mm²
External lay direction
S
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C
0.0394 Ohm/km
Mechanical characteristics
Mechanical characteristics
Elongation coefficient
23 10E-6/°C
Final modulus of elasticity (MPA)
52500
Minimum breaking load
276.47 kN
Usage characteristics
Usage characteristics
Laying operation bending radius
1140 mm
Resources
Resources
Documentation

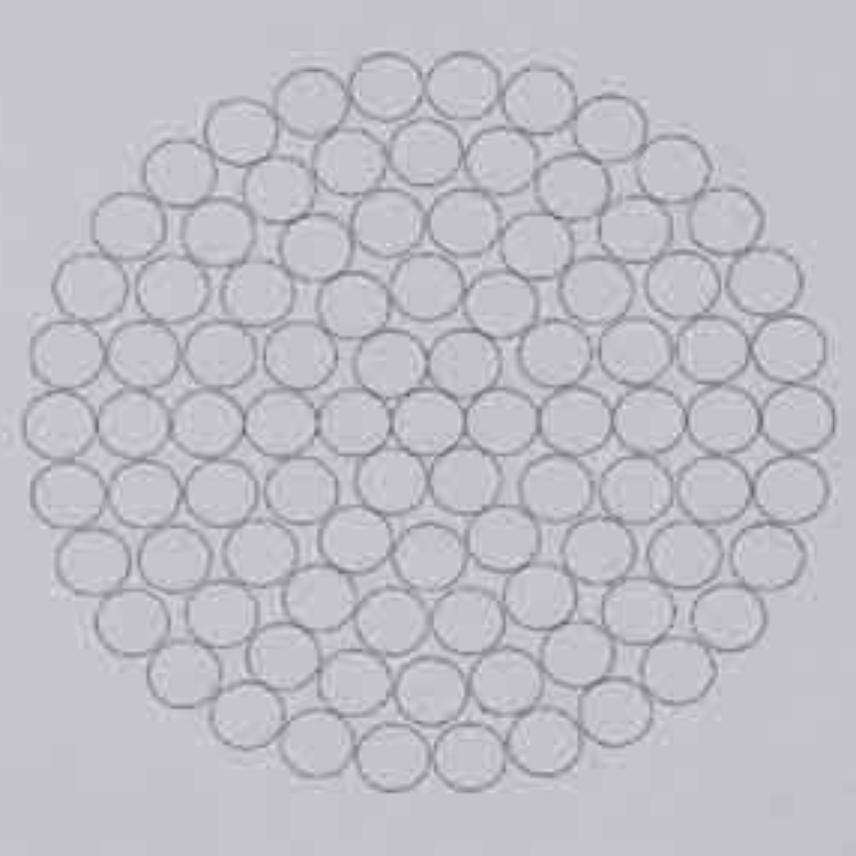

cross section
jpg — 13.0 kB
Selling & delivery Information
The conductors range is substantial and Nexans is able to propose the suitable way.
