1x50 Al Keylios 1,5/1,5kV DC-1/1kV AC
1x50 Al Keylios 1,5/1,5kV DC-1/1kV AC
KEYLIOS
Nexans PV 1.5/1.5kV DC - 1/1kV AC are low voltage cables.
Nexans PV 1.5/1.5kV DC - 1/1kV AC and Nexans TWISTAL PV 1.5/1.5kV DC - 1/1kV AC cables, 100% manufactured in France (plant Jeumont 59), guarantee a minimum 35% reduction in greenhouse gas emissions compared to standard cables.
This offer is built on the guaranteed use of low-carbon aluminium and recycled plastic, as well as the use of renewable or decarbonised energies in manufacturing the cables.
Nexans provides all the environmental data for its products (PEP Ecopassport®).
- Nexans ref. : 10280741
- EAN : 3427670027613
Description
Description
Standards
-
InternationalIEC 60228; IEC 60502-1
Application
Nexans PV 1.5/1.5kV DC - 1/1kV AC, XLPE insulated cables, offer exceptional performances and long-term reliability with an expected life time of more than 25 years. They are recommended for usage in utility-scale solar plants. By design, it makes them perfectly suitable for above ground installation and, with the reinforced sheath, for underground installation. While the Energyflex® cables are used in order to connect the solar strings onto the combiner boxes, the Nexans PV 1.5/1.5kV DC - 1/1kV AC cables will complete the LV-DC network from the combiner boxes to the inverters, and then from the inverter to the transformer station.
Universal Use
Nexans PV 1.5/1.5kV DC - 1/1kV AC can be used either on the DC link with an earth polarity or after the AC inverter when using an anti PID (potential inductive deterioration).
The Nexans PV 1.5/1.5kV DC - 1/1kV AC cable is available in two versions :
- version for above ground installations,
- version with reinforced sheath for direct buried installations depending on local specifications. In this case, we recommend mechanical laying with sand bedding in the trench.

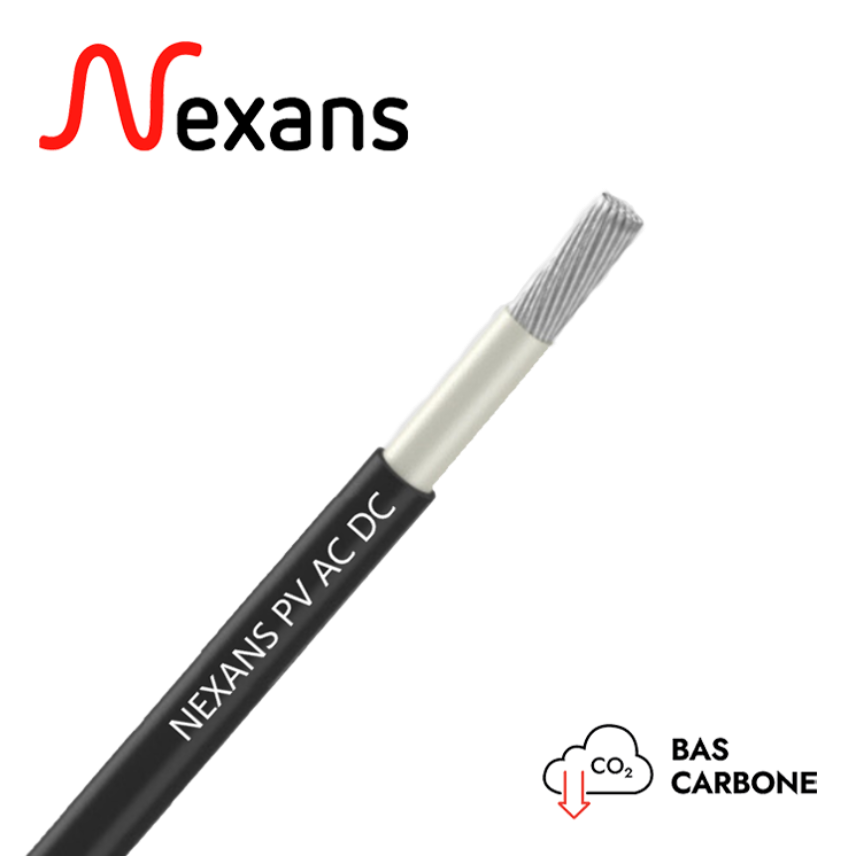

Design
- Single core cable with aluminum conductor
- XLPE insulation
- PVC outer-sheath or reinforced PVC outer-sheath
(insulation thickness and dielectric test according to IEC 60502-1, LCIE test report n°159694-732611)
Recommended Use
Renewable Energies for photovoltaic solar plants.
These cables are suitable for above ground installation or underground installation using the reinforced sheath cable version.
Low carbon offer
Low carbon at a glance
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
