Description
Description
Standards
-
InternationalEN 50525-2-21
Applications
Flexible single-core cable under polychloroprene or equivalent synthétic rubber sheat for lighting festoons.

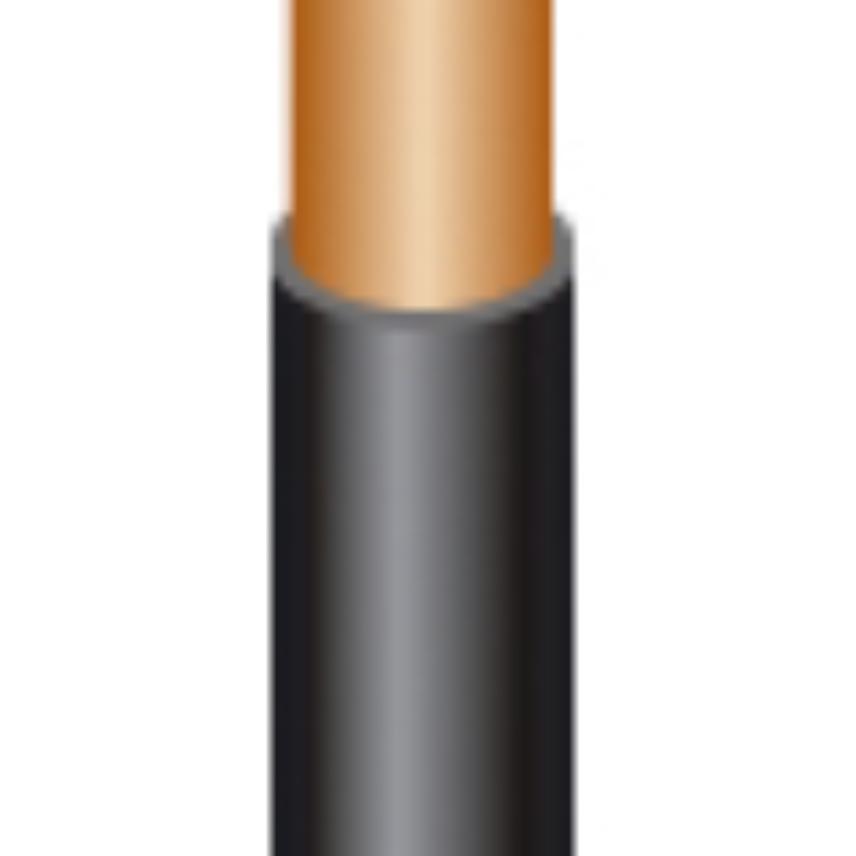

Design
1.Conductor
Flexible bare or tinned copper class 5.
2.Insulation
Special crosslinked elastomer
3.Outer sheat
Special crosslinked elastomer
Colour:
black or green
Other colours on request
Core identification
1 core: brown.
Marking
03RN-F 1xSmm² 269 NEXANS
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Flexible class 5
Conductor material
Bare copper
Outer sheath
Elastomer
Sheath colour
Black
Dimensional characteristics
Dimensional characteristics
Number of cores
-
Conductor cross-section
- mm²
Approximate weight
- kg/km
Average insulation thickness
- mm
Average sheath thickness
- mm
Maximum outer diameter
- mm
Minimum outer diameter
- mm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
300/500 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Flexible
Usage characteristics
Usage characteristics
Chemical resistance
Good
Flame retardant
IEC 60332-1
Operating temperature, range
-25 ... 50 °C
Packaging
Drum
Weather resistance
Good
Maximum operating temperature
60 °C
