H07RN8-F 4G1,0mm² OR
Nexans ref. 10253922
- Conductor cross-section: 1 mm²
- Approximate weight: 143 kg/km
H07RN8-F 4G1,50mm² OR
Nexans ref. 10255114
- Conductor cross-section: 1.5 mm²
- Approximate weight: 185 kg/km
Description
Description
Standards
-
ProductEN 50525-2-21
Application
Cables are designed for power supply of submersible pumps and other devices used in water (including swimming pool water). The cable is designed "oil resistant" to satisfy the industrial needs in case of severe risks of attacks by miscellaneous oils or liquids. ( IRM 902, marcol 172, marcol 82 ).

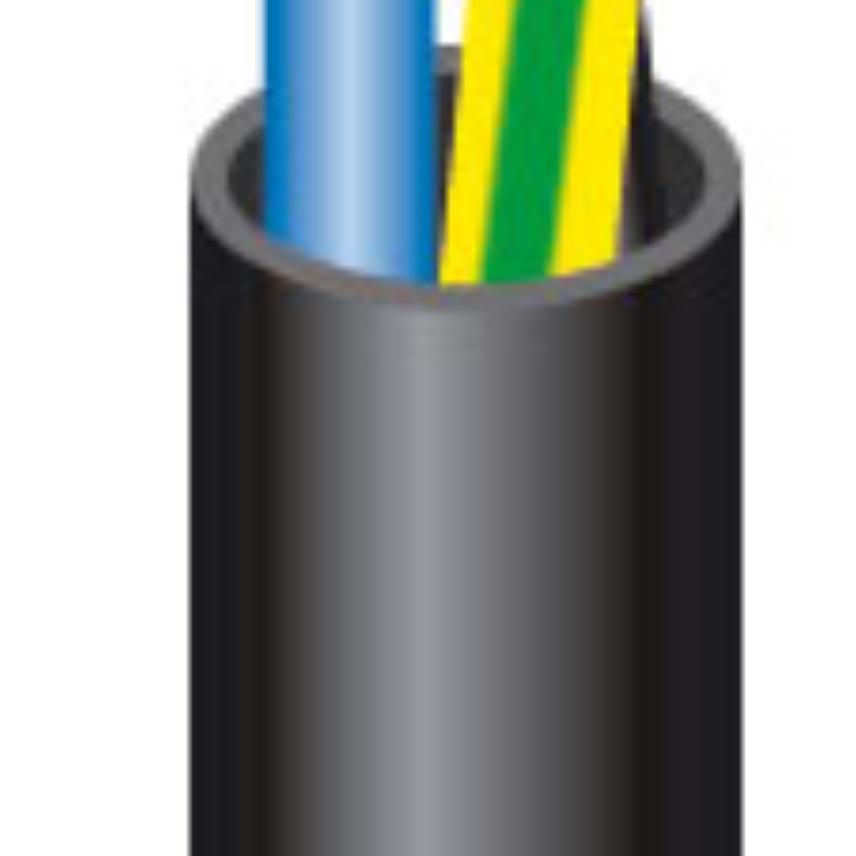

Design
1. Conductor
Flexible bare or tinned copper Class 5.
2. Insulation
-Special crosslinked elastomer EI4
3. Outer sheath
- Special crosslinked elastomer EM2
- Colour black
- Other colours on request
Core colours
- 2 cores (X) = Brown + Blue
- 3 cores (G) = Green-Yellow + Brown + Blue
- 3 cores (X) = Brown + Black + Grey
- 4 cores (G) = Green-Yellow + Brown + Black + Grey
- 4 cores (X) = Blue + Brown + Black + Grey
- 5 cores (G) = Green-Yellow + Blue + Brown + Black + Grey
- 5 cores (X) = Blue + Brown + Black + Grey + Black
Marking
USE HAR H07RN8-F nb (x ou G) S mm² 269 NEXANS O.R
Nota
For any request of specific cables, please join our contact team :
Copper conductors, specific insulations and assemblies…
Outersheath : diameter, color, marking, unsheathing on automatic machines…
Packing on request…
Adapted delivery time…
