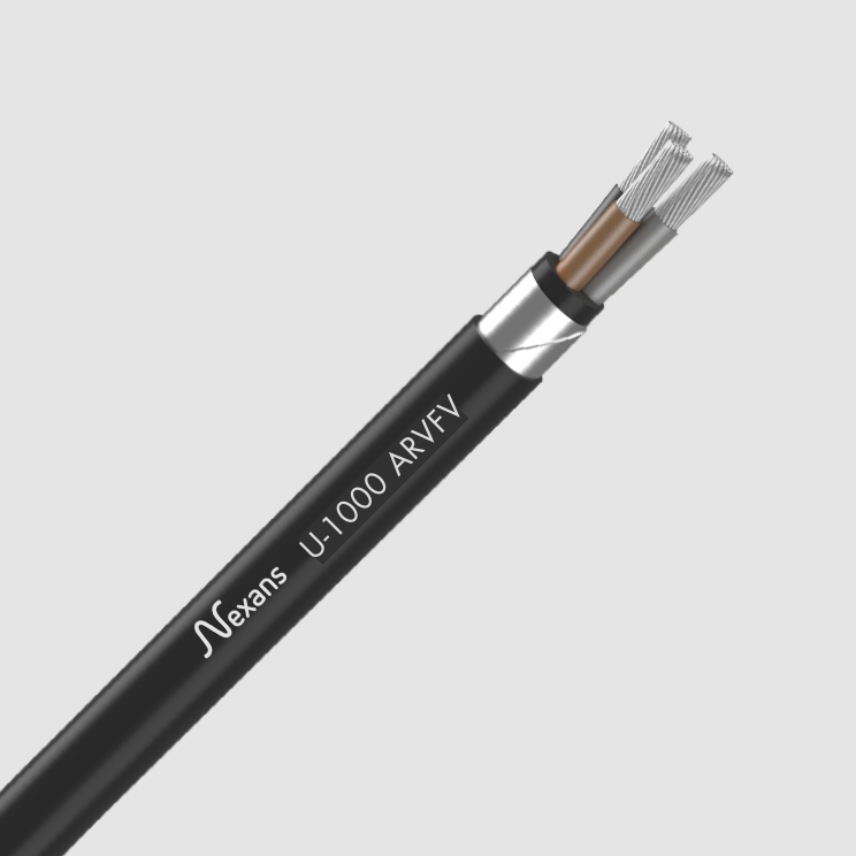

Nexans U-1000 ARVFV 3x95

Armoured low voltage cables for fixed or buried installation.
Aluminium conductor, XLPE insulation, armour and PVC Outer sheath.

Nexans ref. : 10057327
EAN : 3427670001132

CO₂

Low
Carbon

Download all documents

Description

Standards

Product

EN 60228; IEC 60502; XP C 32-322

Application

Nexans U-1000 ARVFV armoured aluminium cables can be used in all low voltage power installations.

Installation

These cables are suitable for direct burial without additionnal protection , for installation on cables trays or in conducts where mechanical protection is necessary (bursting risk).

Design

Conductor : stranded circular aluminium class 2
Insulation : XLPE- cores identification by colours
Laying up : with fillers
Inner sheat : lead free PVC
Armour : steel or aluminium tapes
Outer sheath : Lead free black PVC

Construction according to AD8 is possible on request.

Marking

U-1000 ARVFV NF-USE N° factory S.Y+ N (x or G) S mm²

N = number of cores
S = section in mm²
x = without Green-Yellow
G = with Green-Yellow

Characteristics

Construction characteristics

Conductor material

Aluminum

Conductor flexibility

Stranded class 2

Insulation

XLPE (chemical)

Inner sheath

PVC

Armour type

Steel tapes

Outer sheath

PVC

Sheath colour

Black

Lead free

Yes

Conductor shape

Circular

With Green/Yellow core

With smaller neutral conductor

Dimensional characteristics

Number of cores

Conductor cross-section

95 mm²

Neutral conductor section (when smaller)

- mm²

Nominal outer diameter

41.0 mm

Approximate weight

2684 kg/km

Bare wire diameter

11.2 mm

Electrical characteristics

Rated Voltage Uo/U (Um)

0.6/ 1 (1.2) kV

Permissible current rating in open air

227 A

Permissible current rating when buried

234 A

Max. DC resistance of the conductor at 20°C

0.32 Ohm/km

Voltage drop, 3 conductors

0.66 V/A.km

Voltage drop, single phase

- V/A.km

Mechanical characteristics

Mechanical resistance to impacts

Excellent

Cable flexibility

Rigid

Usage characteristics

Max. conductor temperature in service

90 °C

Short-circuit max. conductor temperature

250 °C

Operating temperature, range

-25 ... 60 °C

Flame retardant

C2, NF C 32-070

Weather resistance

Very good

Chemical resistance

Accidental

Water proof

Intermittent

Minimum static operating bending radius

325 mm

Packaging

Resources

Documentation

PEP ARVFV pdf — 4.1 MB

Download

Declaration of Performance

Declaration of Performance n° : 1000016-FRJE
Certification Date : 11/29/16
AVCP (Assessment and Verification of Constancy of Performance) : System 3
Notified body : NB 1812
Declared performance : E_ca
