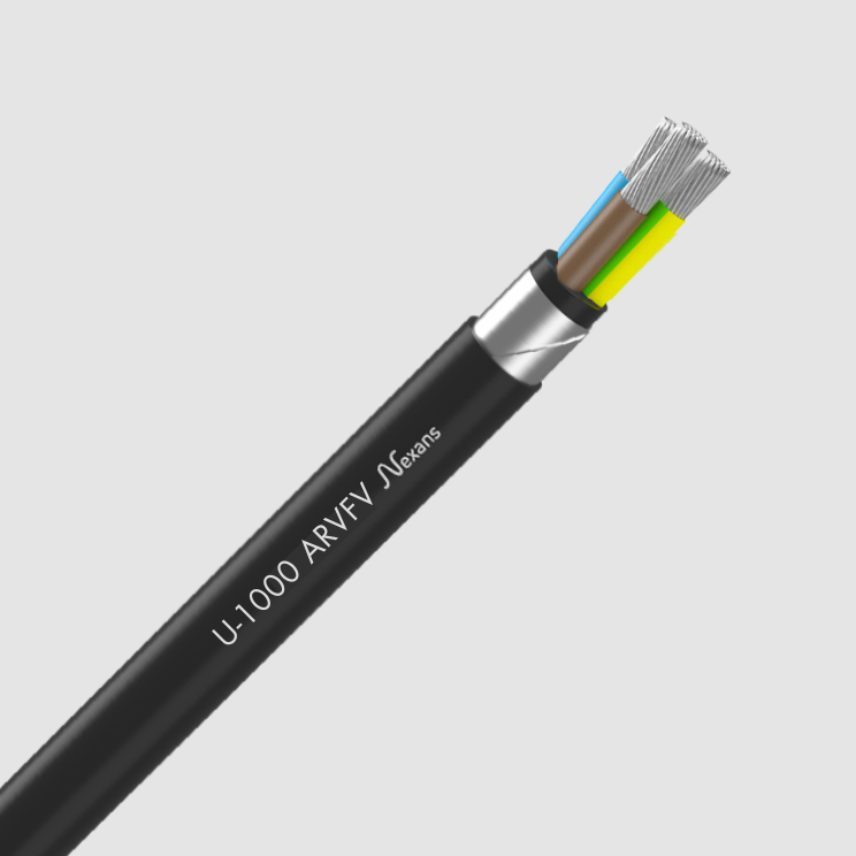

Nexans U-1000 ARVFV (industrial armoured)
Nexans U-1000 ARVFV (industrial armoured)
Armoured low voltage cables for fixed or buried installation.
Aluminium conductor, XLPE insulation, armour and PVC Outer sheath.
Nexans U-1000 ARVFV 1x50 GL
Nexans ref. 10220019
- Packaging: Cut to length (m)
- Armour type: Aluminium tape
- Number of cores: 1
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 146 A
- Permissible current rating when buried: 160 A
Nexans U-1000 ARVFV 1x150 GL
Nexans ref. 10066494
- Packaging: Cut to length (m)
- Armour type: Aluminium tape
- Number of cores: 1
- Conductor cross-section: 150 mm²
- Permissible current rating in open air: 277 A
- Permissible current rating when buried: 263 A
Nexans U-1000 ARVFV 1x240 GL
Nexans ref. 10057394
- Packaging: Cut to length (m)
- Armour type: Aluminium tape
- Number of cores: 1
- Conductor cross-section: 240 mm²
- Permissible current rating in open air: 372 A
- Permissible current rating when buried: 340 A
Nexans U-1000 ARVFV 2X16 GL
Nexans ref. 10229851
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 2
- Conductor cross-section: 16 mm²
- Permissible current rating in open air: 91 A
- Permissible current rating when buried: 104 A
Nexans U-1000 ARVFV 2X25 GL
Nexans ref. 10243760
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 2
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: 108 A
- Permissible current rating when buried: 133 A
Nexans U-1000 ARVFV 2x35
Nexans ref. 10057436
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 2
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 135 A
- Permissible current rating when buried: 160 A
Nexans U-1000 ARVFV 3G16 GL
Nexans ref. 10263297
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 16 mm²
- Permissible current rating in open air: 77 A
- Permissible current rating when buried: 87 A
Nexans U-1000 ARVFV 3x25
Nexans ref. 10057437 - Country ref. 01272203
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: 97 A
- Permissible current rating when buried: 111 A
Nexans U-1000 ARVFV 3G25 GL
Nexans ref. 10057321
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: 97 A
- Permissible current rating when buried: 111 A
Nexans U-1000 ARVFV 3x35
Nexans ref. 10057371 - Country ref. 01272204
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 120 A
- Permissible current rating when buried: 134 A
Nexans U-1000 ARVFV 3G35 GL
Nexans ref. 10057326
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 120 A
- Permissible current rating when buried: 134 A
Nexans U-1000 ARVFV 3x50
Nexans ref. 10057324
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 146 A
- Permissible current rating when buried: 160 A
Nexans U-1000 ARVFV 3G50 GL
Nexans ref. 10254846
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 146 A
- Permissible current rating when buried: 160 A
Nexans U-1000 ARVFV 3x70
Nexans ref. 10057325
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 70 mm²
- Permissible current rating in open air: 187 A
- Permissible current rating when buried: 197 A
Nexans U-1000 ARVFV 3G70 GL
Nexans ref. 10254847
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 70 mm²
- Permissible current rating in open air: 187 A
- Permissible current rating when buried: 197 A
Nexans U-1000 ARVFV 3x95
Nexans ref. 10057327
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 95 mm²
- Permissible current rating in open air: 227 A
- Permissible current rating when buried: 234 A
Nexans U-1000 ARVFV 3x120
Nexans ref. 10057329
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 120 mm²
- Permissible current rating in open air: 263 A
- Permissible current rating when buried: 266 A
Nexans U-1000 ARVFV 3x150
Nexans ref. 10057386
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 150 mm²
- Permissible current rating in open air: 300 A
- Permissible current rating when buried: 304 A
Nexans U-1000 ARVFV 3x185
Nexans ref. 10057331
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 185 mm²
- Permissible current rating in open air: 347 A
- Permissible current rating when buried: 337 A
Nexans U-1000 ARVFV 3x240
Nexans ref. 10057330
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 240 mm²
- Permissible current rating in open air: 409 A
- Permissible current rating when buried: 388 A
Nexans U-1000 ARVFV 3X300 GL
Nexans ref. 10057374
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 300 mm²
- Permissible current rating in open air: 440 A
- Permissible current rating when buried: 471 A
U-1000 ARVFV 4X16 GL
Nexans ref. 10205649
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 16 mm²
- Permissible current rating in open air: 77 A
- Permissible current rating when buried: 87 A
U-1000 ARVFV 4X25 GL
Nexans ref. 10057369
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: 97 A
- Permissible current rating when buried: 111 A
Nexans U-1000 ARVFV 4G25 GL
Nexans ref. 10057322
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: 97 A
- Permissible current rating when buried: 111 A
U-1000 ARVFV 4X35 GL
Nexans ref. 10057323
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 120 A
- Permissible current rating when buried: 134 A
Nexans U-1000 ARVFV 4G35 GL
Nexans ref. 10057387
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 120 A
- Permissible current rating when buried: 134 A
U-1000 ARVFV 4x50
Nexans ref. 10057381 - Country ref. 01306340
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 146 A
- Permissible current rating when buried: 160 A
Nexans U-1000 ARVFV 3x50+35
Nexans ref. 10057385
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 146 A
- Permissible current rating when buried: 160 A
Nexans U-1000 ARVFV 4G50 GL
Nexans ref. 10057433
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 146 A
- Permissible current rating when buried: 160 A
U-1000 ARVFV 4X70 GL
Nexans ref. 10057370
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 70 mm²
- Permissible current rating in open air: 187 A
- Permissible current rating when buried: 197 A
Nexans U-1000 ARVFV 4G70 GL
Nexans ref. 10057393
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 70 mm²
- Permissible current rating in open air: 187 A
- Permissible current rating when buried: 197 A
Nexans U-1000 ARVFV 3x95+50
Nexans ref. 10057378 - Country ref. 01306490
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 95 mm²
- Permissible current rating in open air: 227 A
- Permissible current rating when buried: 234 A
U-1000 ARVFV 4X95 GL
Nexans ref. 10044015
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 95 mm²
- Permissible current rating in open air: 227 A
- Permissible current rating when buried: 234 A
Nexans U-1000 ARVFV 3x120+70
Nexans ref. 10057379 - Country ref. 01306500
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 120 mm²
- Permissible current rating in open air: 263 A
- Permissible current rating when buried: 266 A
U-1000 ARVFV 4X120 GL
Nexans ref. 10057288
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 120 mm²
- Permissible current rating in open air: 263 A
- Permissible current rating when buried: 266 A
Nexans U-1000 ARVFV 4G120 GL
Nexans ref. 10057389
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 120 mm²
- Permissible current rating in open air: 263 A
- Permissible current rating when buried: 266 A
Nexans U-1000 ARVFV 3x150+70
Nexans ref. 10057380 - Country ref. 01306510
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 150 mm²
- Permissible current rating in open air: 304 A
- Permissible current rating when buried: 300 A
U-1000 ARVFV 4X150 GL
Nexans ref. 10057328
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 150 mm²
- Permissible current rating in open air: 300 A
- Permissible current rating when buried: 304 A
Nexans U-1000 ARVFV 4G150 GL
Nexans ref. 10057390
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 150 mm²
- Permissible current rating in open air: 300 A
- Permissible current rating when buried: 304 A
Nexans U-1000 ARVFV 3x185+70
Nexans ref. 10057382
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 185 mm²
- Permissible current rating in open air: 347 A
- Permissible current rating when buried: 337 A
U-1000 ARVFV 4X185 GL
Nexans ref. 10057373
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 185 mm²
- Permissible current rating in open air: 347 A
- Permissible current rating when buried: 337 A
Nexans U-1000 ARVFV 4G185 GL
Nexans ref. 10185078
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 185 mm²
- Permissible current rating in open air: 347 A
- Permissible current rating when buried: 337 A
U-1000 ARVFV 4X240 GL
Nexans ref. 10057372
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 240 mm²
- Permissible current rating in open air: 409 A
- Permissible current rating when buried: 388 A
Nexans U-1000 ARVFV 4G240 GL
Nexans ref. 10057391
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 240 mm²
- Permissible current rating in open air: 409 A
- Permissible current rating when buried: 388 A
U-1000 ARVFV 4X300 GL
Nexans ref. 10057375
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 300 mm²
- Permissible current rating in open air: 440 A
- Permissible current rating when buried: 471 A
Nexans U-1000 ARVFV 5G16
Nexans ref. 10220015
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 5
- Conductor cross-section: 16 mm²
- Permissible current rating in open air: 77 A
- Permissible current rating when buried: 87 A
Nexans U-1000 ARVFV 5G25
Nexans ref. 10220016
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 5
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: 97 A
- Permissible current rating when buried: 111 A
Nexans U-1000 ARVFV 5G35 GL
Nexans ref. 10220017
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 5
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 120 A
- Permissible current rating when buried: 134 A
Nexans U-1000 ARVFV 5G50 GL
Nexans ref. 10260021
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 5
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 146 A
- Permissible current rating when buried: 160 A
Nexans U-1000 ARVFV 5G70 GL
Nexans ref. 10260022
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- Number of cores: 5
- Conductor cross-section: 70 mm²
- Permissible current rating in open air: 187 A
- Permissible current rating when buried: 197 A
Description
Description
Standards
-
ProductEN 60228; IEC 60502; XP C 32-322
Application
Nexans U-1000 ARVFV armoured aluminium cables can be used in all low voltage power installations.
Installation
These cables are suitable for direct burial without additionnal protection , for installation on cables trays or in conducts where mechanical protection is necessary (bursting risk).
Design
- Conductor : stranded circular aluminium class 2
- Insulation : XLPE- cores identification by colours
- Laying up : with fillers
- Inner sheat : lead free PVC
- Armour : steel or aluminium tapes
- Outer sheath : Lead free black PVC
Construction according to AD8 is possible on request.
Marking
U-1000 ARVFV NF-USE N° factory S.Y+ N (x or G) S mm²
- N = number of cores
- S = section in mm²
- x = without Green-Yellow
- G = with Green-Yellow
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Aluminum
Conductor flexibility
Stranded class 2
Insulation
XLPE (chemical)
Inner sheath
PVC
Outer sheath
PVC
Sheath colour
Black
Lead free
Yes
Conductor shape
Circular
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Mechanical characteristics
Mechanical characteristics
Mechanical resistance to impacts
Excellent
Cable flexibility
Rigid
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Operating temperature, range
-25 ... 60 °C
Flame retardant
C2, NF C 32-070
Weather resistance
Very good
Chemical resistance
Accidental
Water proof
Intermittent
Packaging
-
Resources
Resources
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
