Nexans TELEREPORT ARMED 2P0,6 DRUM 100m BK*

Applications

These cables are used for automatic data transfer from EDF cut out through remote read.In accordance with EDF specification 48 37 320.

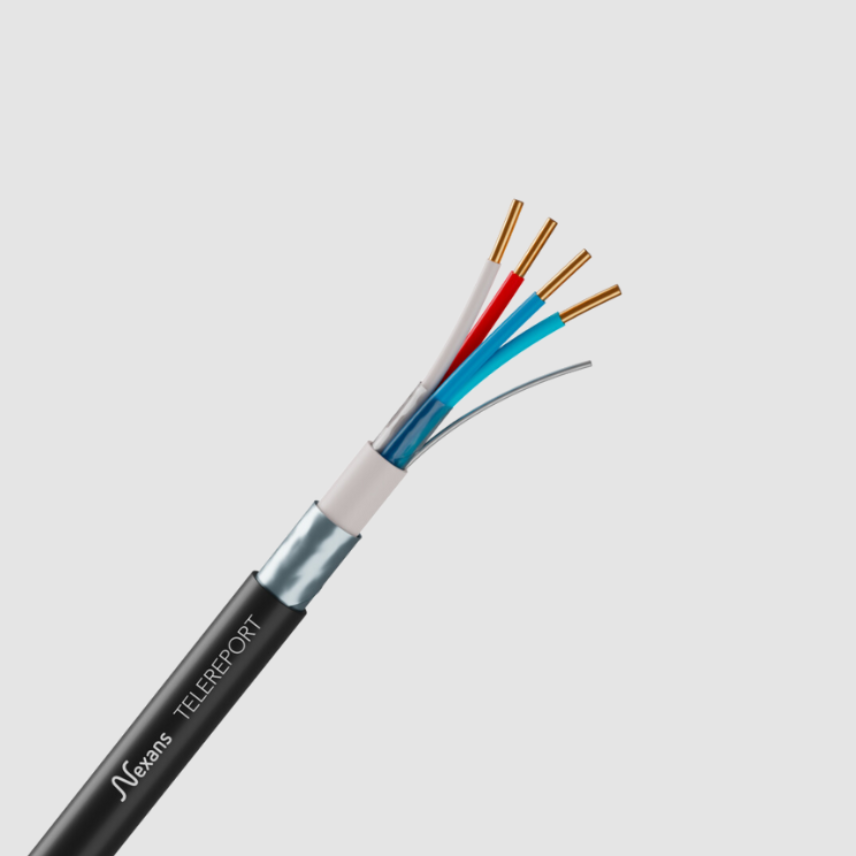

Design

Conductor:

Solid bare copper, diameter 0.6 mm

Insutation:

Polyvinyl chloryde (PVC)

Tape: Polyester

Collective screen:

Tinned copper drain wire

Aluminium/polyester tape

Inner sheath:

Polyvinyl chloryde (PVC)

Armour:

Double steel tape

Outer sheath:

Polyvinyl chloryde (PVC) Colour : black

Core identification

light blue - red - white - dark blue

Marking

Téléreport Armé NFC 33-400 NEXANS 279 Manufacturing n° YYYY

Technical characteristics

Loop resistance at 20°C: 120 < R(Ohm.km) < 133,2
Insulation resistance under 400 V after 1 min of operation > 1000 MOhm
Dielectrical strength between conductors for 1 min: 1500 V
Capacitance at 50 kHz: 80 < C (nF/km) < 130
Typical impedance at 50 kHz: 75 < Zc(Ohm) < 115
Ambiant temperature: -15°C to +45°C
