Nexans H07V-U MOBIWAY POP

Avantages

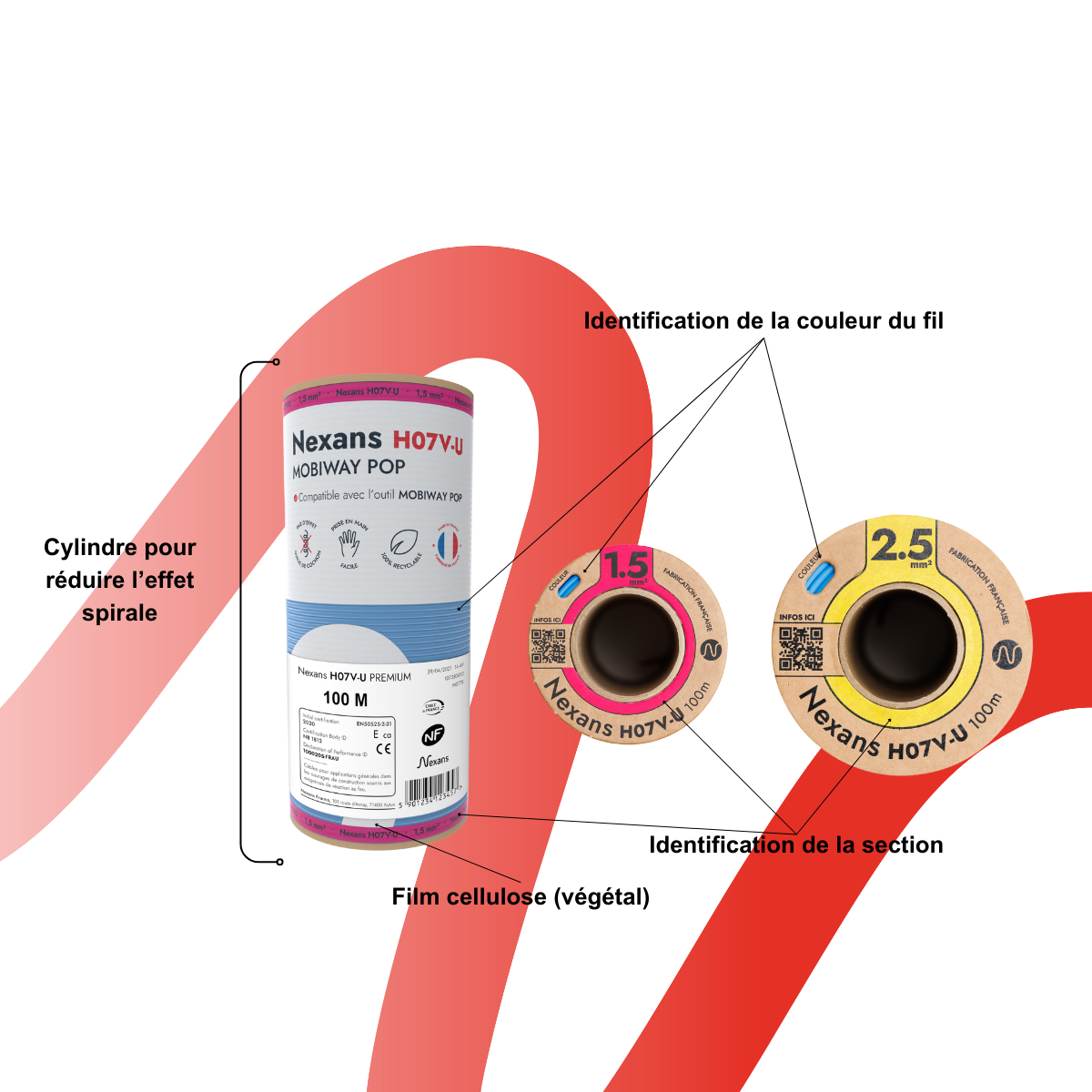

Nexans H07V-U Mobiway Pop wire spools have been designed to facilitate the work of installers. The compact spool format drastically reduces the spiral effect and facilitates wire pulling. This Nexans innovation is unique and saves time and comfort on worksites.

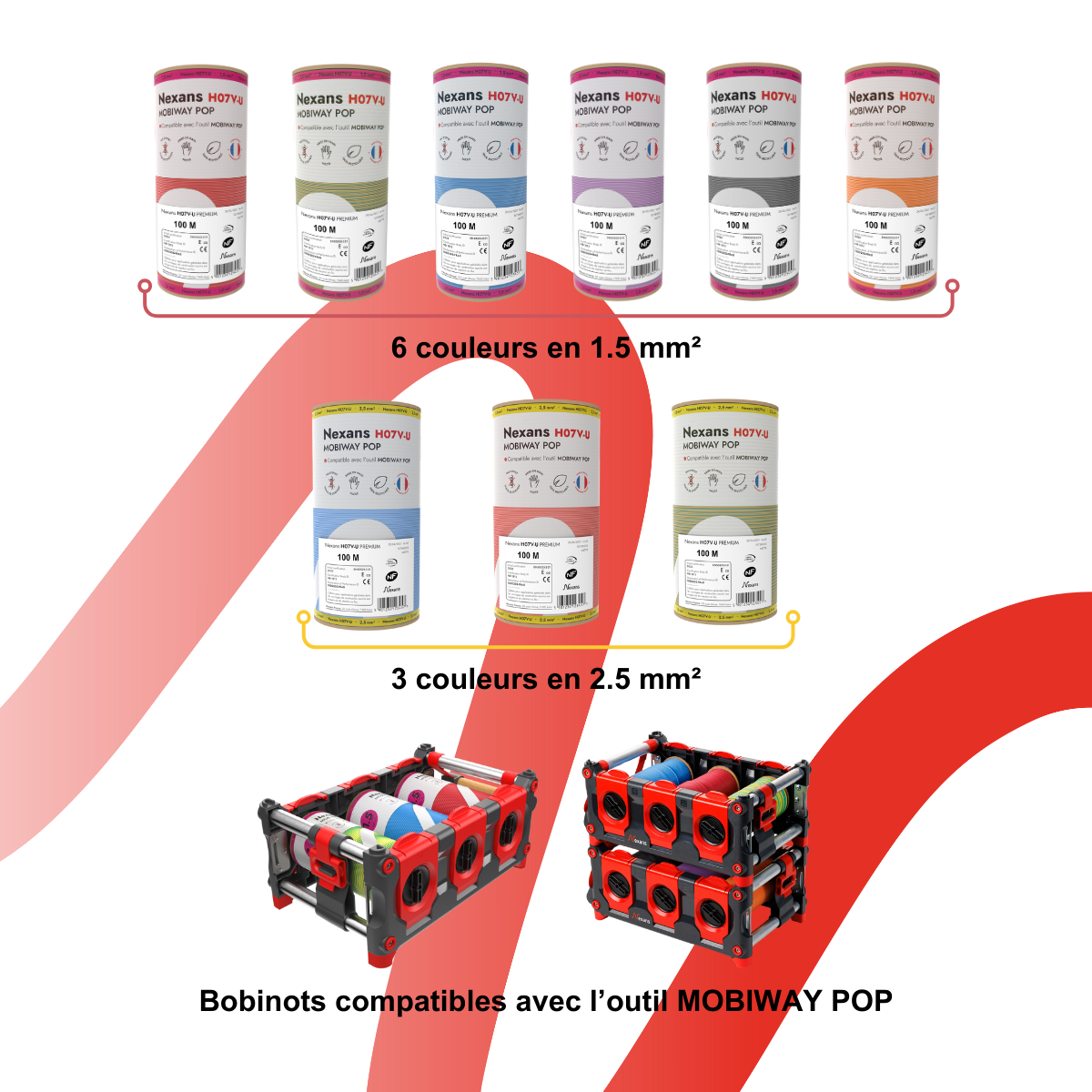

The section of the wires is immediately identifiable: section 1.5 in pink and 2.5 in yellow.

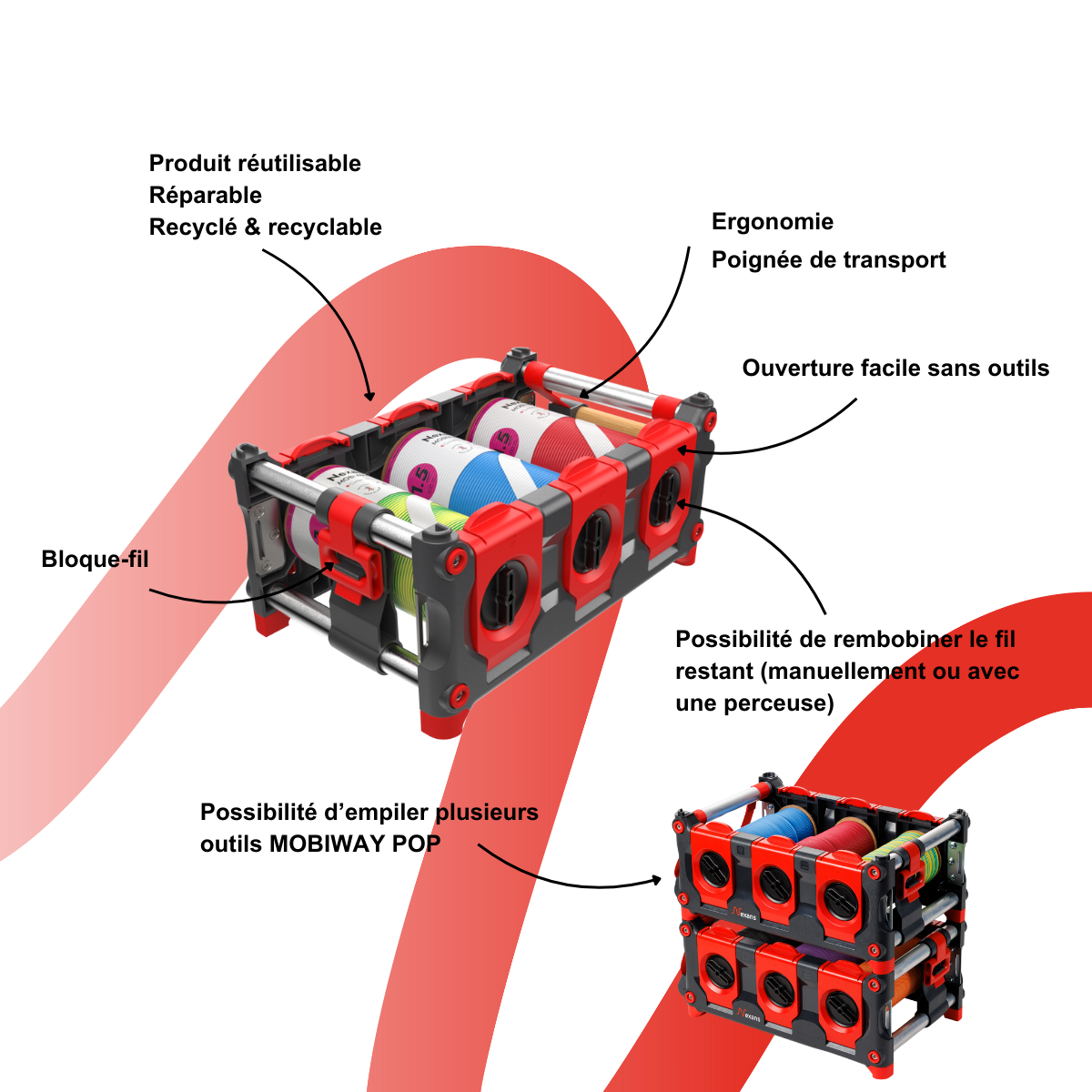

This innovative format reveals its full potential when combined with the Nexans Mobiway Pop tool, which further simplifies transport and allows up to six wires to be pulled simultaneously.
This new solution, perfectly adapted to professionals, improves working conditions by reducing uncomfortable postures and increasing safety on construction sites.

Environment

• 100% sustainable
• 0 disposable plastic
• 100% recyclable cardboard spool

Engagement

• Ergonomic and safe, 67% fewer uncomfortable postures
• Optimised safety for installers
• Ease of transport

Economy

• 30% space saving

Installation

Open air, in conduit, in cable trunking, in cable ducting. Thanks to the sliding properties of insulation, H07V-U is made to facilitate processing while pulling in.

Permissible current and voltage drop are given

For conductor laid alone in insulating tube on a wall Temperature = 30°C. Permanent operation
If conditions are different, apply correction factors from NF C 15-100 standard or other equivalent national standard.

Voltage drop

Calculated with Cos phi = 0.8

Construction

Design

1. Conductor
   Bare copper class 1
2. Insulation
   PVC
   Différent colors.

Marking

S.Y + USEH07V-U n° Plant
