Nexans U-1000 RVFV RH C2

Products

Nexans U 1000 RVFV-RH 2x70

Nexans ref. 10088349

  • Packaging: Cut to length (300m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: No
  • Number of cores: 2
  • Conductor cross-section: 70 mm²
  • Standard: Cable not standardized



Nexans U-1000 RVFV RH 3G2.5 Ar EPAISSE

Nexans ref. 10048566 - Country ref. 01270103

  • Packaging: Cut to length (2000m)
  • Conductor flexibility: Solid class 1
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Standard: Cable not standardized



Nexans U-1000 RVFV-RH 2x1,5

Nexans ref. 10239633

  • Packaging: Cut to length (2000m)
  • Conductor flexibility: Solid class 1
  • With Green/Yellow core: No
  • Number of cores: 2
  • Conductor cross-section: 1.5 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 2x2,5

Nexans ref. 10125490

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Solid class 1
  • With Green/Yellow core: No
  • Number of cores: 2
  • Conductor cross-section: 2.5 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3G1,5

Nexans ref. 10199747

  • Packaging: Cut to length (2000m)
  • Conductor flexibility: Solid class 1
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3G1,5 green

Nexans ref. 10221041

  • Packaging: Cut to length (2000m)
  • Conductor flexibility: Solid class 1
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Standard: Cable not standardized



Nexans U-1000 RVFV-RH 3G10

Nexans ref. 10284969

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 10 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3G16

Nexans ref. 10284970

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 16 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3G2,5

Nexans ref. 10284966

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Solid class 1
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3G2.5

Nexans ref. 10229835

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Solid class 1
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3G35

Nexans ref. 10284971

  • Packaging: Cut to length (500m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 35 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3G4

Nexans ref. 10284967

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Solid class 1
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 4 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3G4

Nexans ref. 10284974

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Solid class 1
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 4 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3G6

Nexans ref. 10229836

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 6 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3G6

Nexans ref. 10235610

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 6 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3G6

Nexans ref. 10284968

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 6 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3G6

Nexans ref. 10284975

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 6 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3G70

Nexans ref. 10103302

  • Packaging: Cut to length (300m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 70 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3x1,5

Nexans ref. 10254269

  • Packaging: Cut to length (2000m)
  • Conductor flexibility: Solid class 1
  • With Green/Yellow core: No
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3x120+1G70

Nexans ref. 10196661

  • Packaging: Cut to length (300m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 120 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3x16

Nexans ref. 10235609

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: No
  • Number of cores: 3
  • Conductor cross-section: 16 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3x2.5

Nexans ref. 10254270

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Solid class 1
  • With Green/Yellow core: No
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3x240

Nexans ref. 10095910

  • Packaging: Cut to length (300m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: No
  • Number of cores: 3
  • Conductor cross-section: 240 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3x4

Nexans ref. 10254271

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Solid class 1
  • With Green/Yellow core: No
  • Number of cores: 3
  • Conductor cross-section: 4 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3x70+1G50

Nexans ref. 10253418

  • Packaging: Cut to length (300m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 70 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 3x95

Nexans ref. 10182128

  • Packaging: Cut to length (300m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: No
  • Number of cores: 3
  • Conductor cross-section: 95 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 4G10

Nexans ref. 10207797

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 10 mm²
  • Standard: Cable not standardized



Nexans U-1000 RVFV-RH 4G120

Nexans ref. 10209960

  • Packaging: Cut to length (300m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 120 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 4G150

Nexans ref. 10280101

  • Packaging: Cut to length (300m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 150 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 4G16

Nexans ref. 10214056

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 16 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 4G185

Nexans ref. 10209961

  • Packaging: Cut to length (300m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 185 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 4G2,5

Nexans ref. 10208320

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 2.5 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 4G25

Nexans ref. 10209957

  • Packaging: Cut to length (500m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 25 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 4G4

Nexans ref. 10137048

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Solid class 1
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 4 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 4G95

Nexans ref. 10209959

  • Packaging: Cut to length (300m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 95 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 4x120

Nexans ref. 10251098

  • Packaging: Cut to length (300m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: No
  • Number of cores: 4
  • Conductor cross-section: 120 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 4x240

Nexans ref. 10261304

  • Packaging: Cut to length (300m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: No
  • Number of cores: 4
  • Conductor cross-section: 240 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 4x300

Nexans ref. 10240158

  • Packaging: Cut to length (300m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: No
  • Number of cores: 4
  • Conductor cross-section: 300 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 4x95

Nexans ref. 10240159

  • Packaging: Cut to length (300m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: No
  • Number of cores: 4
  • Conductor cross-section: 95 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 5G2,5

Nexans ref. 10284972

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Solid class 1
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 2.5 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 5G6

Nexans ref. 10229837

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 6 mm²
  • Standard: Cable standardized



Nexans U-1000 RVFV-RH 5G6

Nexans ref. 10284973

  • Packaging: Cut to length (1000m)
  • Conductor flexibility: Stranded class 2
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 6 mm²
  • Standard: Cable standardized



Description

Description

Standards

  • Product
    IEC 60228; XP C 32-322; XP C 32-322
  • Test
    NF C32-070/C2; NF C32-070/C2

Applications

These power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications where hydrocarbons may be present. These cables can be fixed on cable trays, within conduits or fixed to walls.

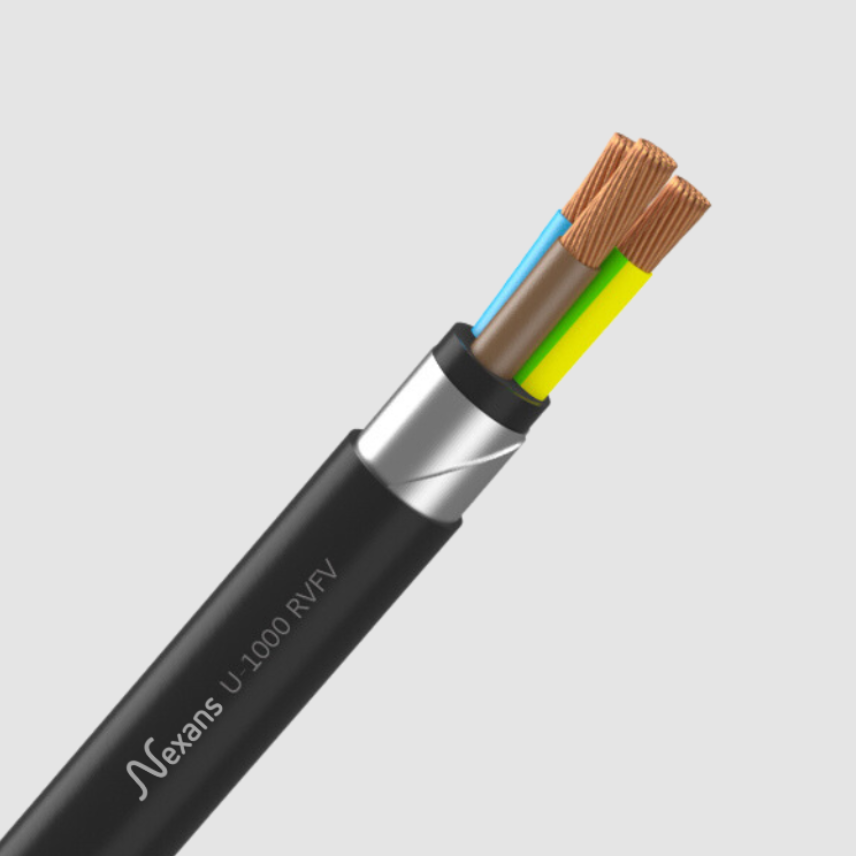

Design

Conductor:
- Stranded (class 2) or solid (class 1) annealed round plain copper
Insulation
- Cross-linked polyethylene (XLPE)
Assembling:
- An inner sheath acting as a filler with practically zero thickness
Inner sheath:
- Polyvinyl chloride (PVC)
Armour:
- Steel tapes (STA)
Outer sheath:
- Polyvinyl chloride (PVC) Colour: black

Core indentification

2 to 5 cores: according to HD 308 S2

Marking

S.Y. + Sans Pb (U)-1000 RVFV-RH Nber of conductors & section (NF-USE) 279 DoP:1000239-FRME + double marking

ou

NEXANS 279   RVAE-RH 3G2.5 mm²  DoP:1000239-FRME  +  metric marking

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Insulation
XLPE (Cross-linked Polyethylene)
Inner sheath
PVC
Outer sheath
PVC
Conductor shape
Circular

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0,6/1 kV

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Resources

Resources

Selling & delivery Information

Current rating in Amperes according to NF C 15100 for ambiant temperature :

30 ° C (in open air)

20 ° C (underground)

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
