Nexans U-1000 R2V DISTINGO

DISTINGO

Rigid and semi-rigid cables for industrial installations. Familly product which integrates the new DISTINGO U-1000 R2V cables for sections from 1.5 to 16mm², from 1 to 5 conductors. Almost all U-1000 R2V cables are manufactured in France - provided a few exceptions.

Download all documents Find distributor

Products

Description

Standards

Product

IEC 60502-1; NF C32-321

Avantages

These U-1000 R2V cables with XLPE insulation and PVC outer sheath can be used in all low voltage power installations. Multiconductors cables are adapted to remote control and telecontrol installations.

It could be installed outside without protection (UV resistance, AN3 according to NF C15-100)

The Nexans U-1000 R2V cable family consists of :

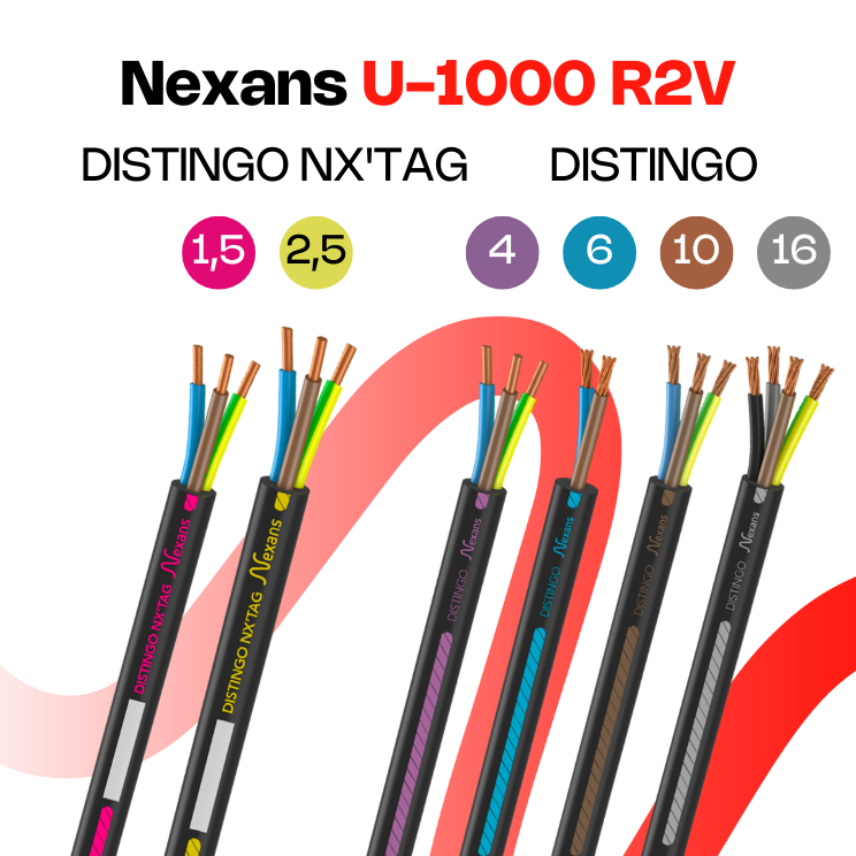

The Nexans U-1000 R2V DISTINGO NX'TAG range, manufactured in France, for 1.5 and 2.5mm2 cross-sections, from 3 to 5 conductors, with the same characteristics. A marking zone identifies each cable and its destination during installation.
The Nexans U-1000 R2V DISTINGO range, also manufactured in France, for cross-sections between 6 and 16mm2, from 1 to 5 conductors. The Nexans U-1000 R2V range in MOBIWAY MOB packaging.
And the Nexans U-1000 R2V range, for cross-sections from 25mm2 upwards.

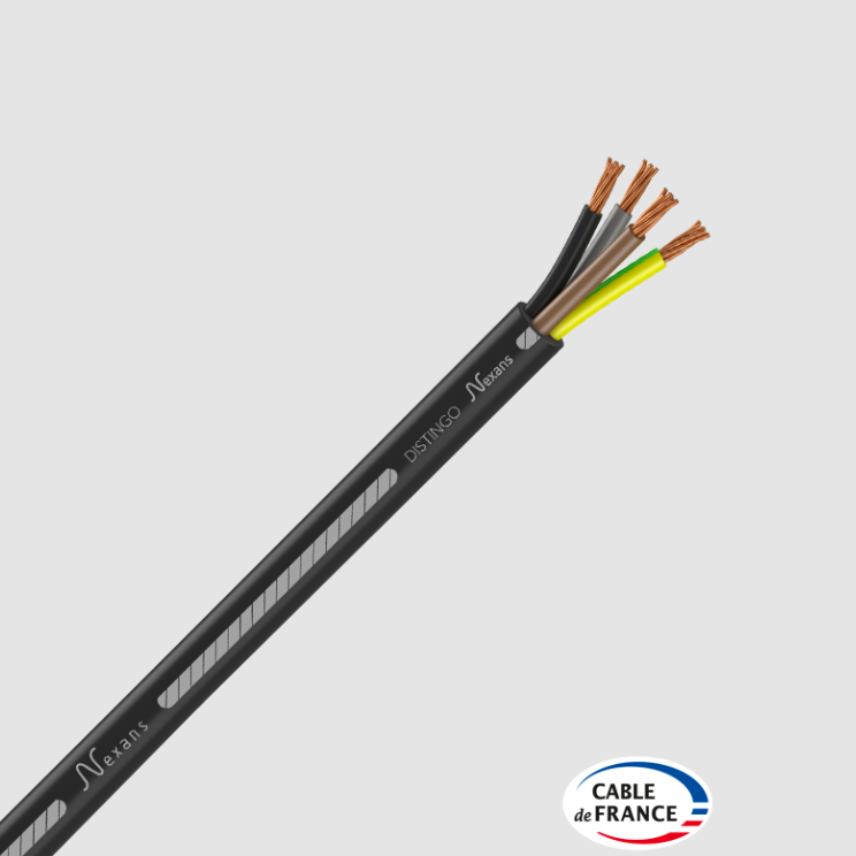

The Nexans U-1000 R2V DISTINGO cable makes life easier on site: clever markings make it possible to identify the cross-section, the number of conductors and the remaining length on the reel at a glance.

Advantages of the Nexans U-1000 R2V DISTINGO range :

Metric marking to identify the remaining cable length
Direct identification of the cross-section on the cable and on the packaging
UV resistance
Nexans quality
Available in Mobiway MOB

Installation

These cables can be fixed on cable trays, within conduits or fixed to walls, installed outside. They also can be buried directly with extra mechanical protection.

Permissible current and voltage drop are given

a) in free air, sheltered from sun, on cable tray or bracket, on cable ladder, and spaced from the wall, temperature = 30°C.
b) buried with thermal resistivity of the ground 1Km/W, laying depth : 600 mm, temperature = 20°C.

If conditions are differents, apply correction factors from NF C 15-100 standard or equivalent national standard

Voltage drop

Calculated with cosj = 0,8

Marking

S.Y. + NF - USE Factory n° U-1000 R2V n (x or G) s mm²

n = number of cores
s = section in mm²
G = with Green-Yellow
x = without Green-Yellow

For DISTINGO™, metric marking METRIUM™

· For packed drums, the length can be directly read

· For coil and other drums (from cut to length), remaining length is easily calculated. For coil, make the difference between external and internal extremity; for drums make the difference between indication on sticks and external extremity.

Les + de la gamme Nexans U-1000 R2V DISTINGO NX'TAG

For each cross-section, a colour

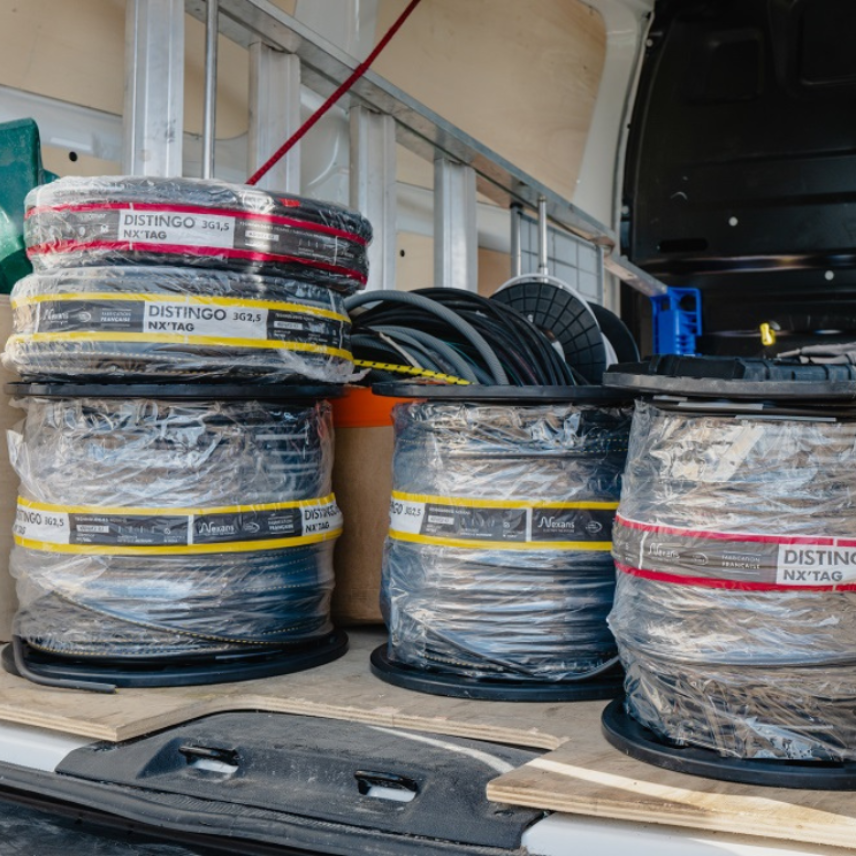

Available in MOBIWAY MOB drum

Distingo RANGE

Tirage sur les conducteurs des câbles

Lors du tirage des câbles, tous les conducteurs participent à l'effort de manière identique. La force maximale de traction ne doit en aucun cas dépasser 5 daN/mm² de section globale (1.5 et 2.5mm²).
