    448-010-3-10; Nexans specification

Characteristics

Very flexible cable with an extremely good mechanical behaviour.
Withstands miscellaneous sterilisation processes.

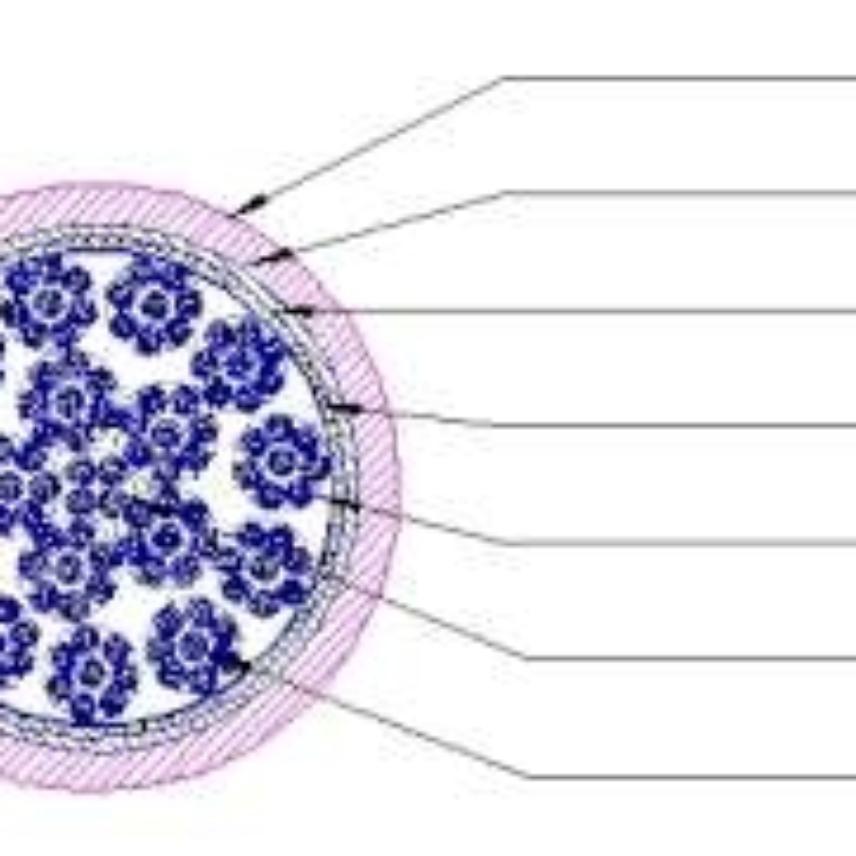

CONSTRUCTION

1- CORE (A)

AWG 38 silver plated copper wire.
FEP insulation.
Diameter : 0.30 +/- 0.02 mm

AWG 48 silver plated copper helicoidal screen
Nominal diameter : 0.36 mm

FEP jacket
Diameter : 0.46 +/- 0.03 mm

2- CORE (B)

4 Cores A twisted.
Nominal diameter : 1.10 mm

3- CORE (C)

8 Cores (A) twisted.
Nominal diameter : 1.40 mm

1 Kevlar strength member +
16 cores (C) twisted.
Nominal diameter : 6.32 mm

4- PTFE Tape
Nominal diameter : 6.65 mm

5- SHIELD
AWG 40 tin plated copper braid.
85% coverage.
Nominal diameter : 7 mm

6- JACKET
Medical PVC
Diameter : 8.48 +/- 0.20 mm



Main Characteristics
Minimum bending radius : 5 x Overall diameter.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Construction type
Shielded and sheathed
Conductor shape
Single wired
Conductor material
Silver coated copper
Insulation
FEP

Dimensional characteristics

Dimensional characteristics

Approximate weight
119 g/m
Outer Diameter
8.48 mm

Electrical characteristics

Electrical characteristics

Operating voltage
24 V

Mechanical characteristics

Mechanical characteristics

Cable flexibility
Flexible

Usage characteristics

Usage characteristics

Maximum operating temperature
85 °C
Minimum operating temperature
-30 °C
RoHS compliant
Yes
