Study 123836
Study 123836
Ultrasound cable assemblies
Very flexible cable with an extremely good mechanical behaviour.
Withstands miscellaneous sterilisation processes.
- Country ref. : Etude 123836
Description
Description
Standards
-
ProductNexans specification

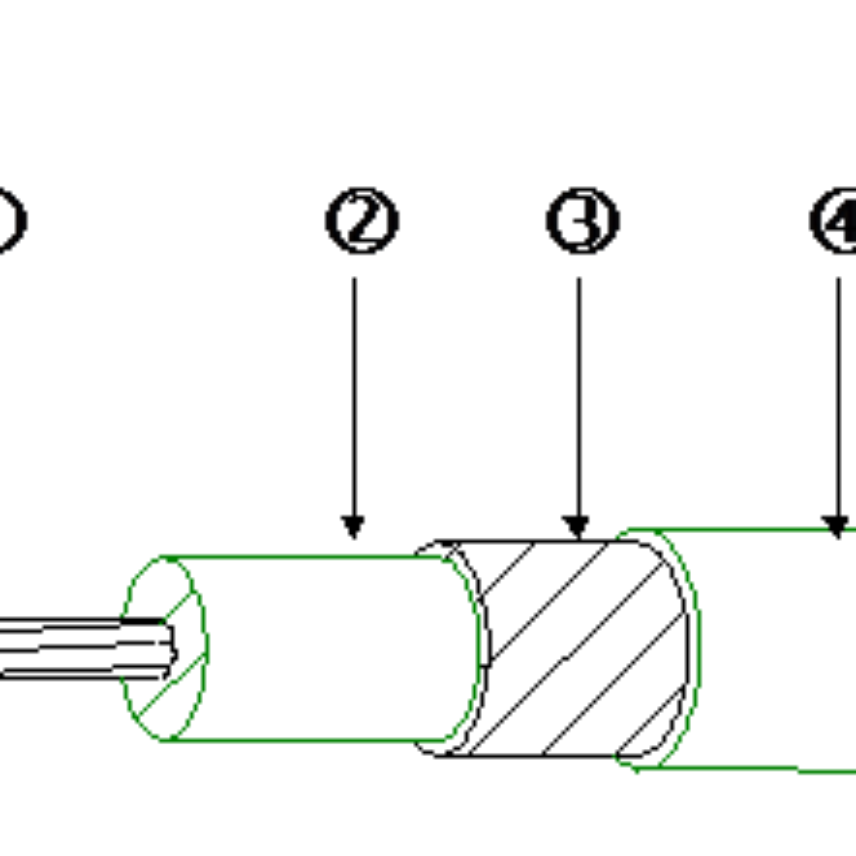

1- Conductor
AWG 32 stranded silver plated copper alloy.
2- Insulation
FEP
Diameter : 0.65 +/- 0.03 mm
3- Shield
AWG 44 silver plated copper spiral shield
Nominal diameter : 0.75 mm
4- Jacket
FEP
Diameter : 0.91 +/- 0.03 mm
Main Characteristics
Minimum bending radius : 5 x Overall diameter.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Construction type
Shielded and sheathed
Conductor shape
Multi stranded
Conductor material
Silver coated copper
Insulation
FEP
Dimensional characteristics
Dimensional characteristics
Approximate weight
2.11 g/m
Outer Diameter
0.91 mm
Electrical characteristics
Electrical characteristics
Operating voltage
24 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Very flexible
Usage characteristics
Usage characteristics
Maximum operating temperature
200 °C
Minimum operating temperature
-50 °C
RoHS compliant
Yes
