Study 133529
Study 133529
USB 2.0 high speed
Very flexible cable with an extremely good mechanical behaviour.
Withstands miscellaneous sterilisation process.
- Nexans ref. : Etude 133529
- Country ref. : Etude 133529
Description
Description
Standards
-

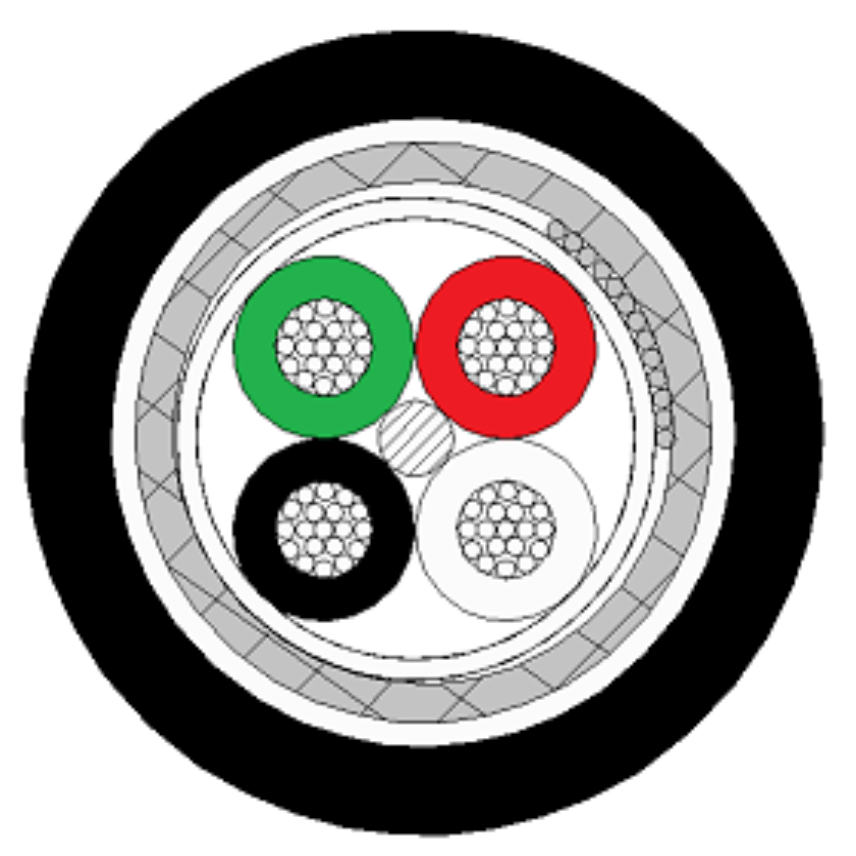

ProductNexans specification
CORE A
AWG 28 stranded silver plated copper alloy conductor.
Diameter : 0.38 mm.
MFA insulation.
Diameter : 0.70 +/- 0.05 mm.
Assembly
Kevlar member
4 Cores (A) twisted.
PTFE tape.
CORE B
14 x 0.08 mm Silver plated copper alloy.
SHIELD
AWG 40 Silver plated copper alloy braid
95% min. coverage.
PTFE tape.
Medical Polyurethane Jacket
Diameter : 3.50 +/- 0.10 mm.
Mechanical performances
Minimum static bending radius : 5 x Overall diameter.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Silvered copper
Conductor shape
Multi stranded
Construction type
Shielded and sheathed
Insulation
Fluor polymer
Dimensional characteristics
Dimensional characteristics
Wire diameter
0.7 mm
Outer Diameter
3.5 mm
Maximum outer diameter
3.6 mm
Approximate weight
20 g/m
Electrical characteristics
Electrical characteristics
Operating voltage
24 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Very flexible
Usage characteristics
Usage characteristics
Maximum operating temperature
85 °C
Minimum operating temperature
-30 °C
Mechanical Resistance
Good mechanical resistance
