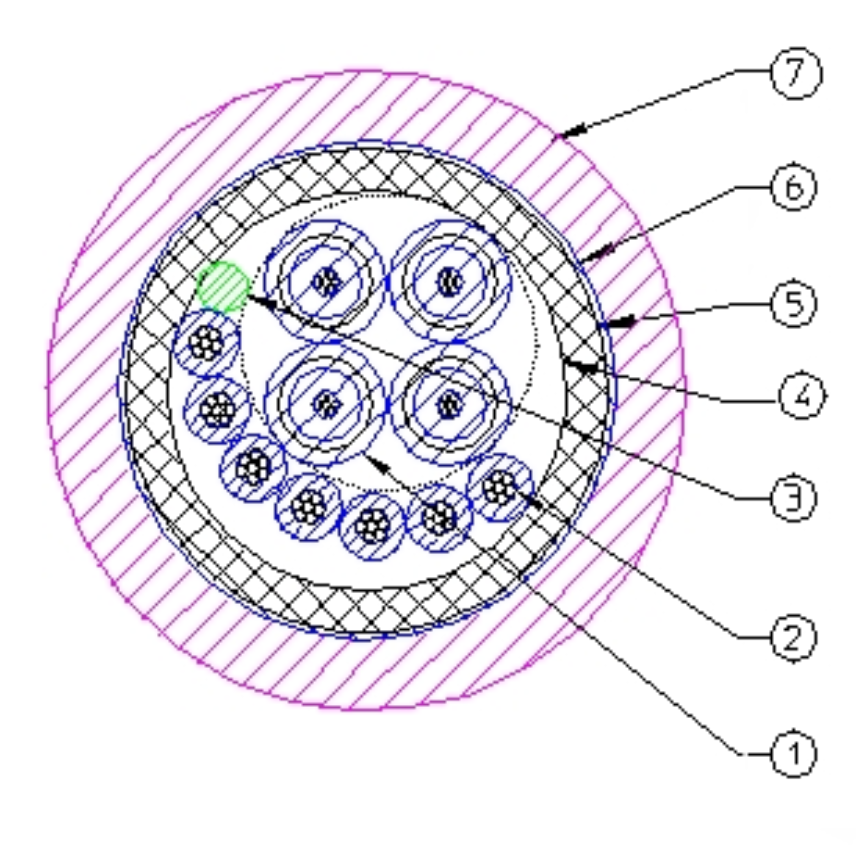

1- CORE (A)
AWG 38 Stranded silver plated alloy
FEP insulation
Diameter : 0.34 +/- 0.02 mm
AWG 44 Silver plated copper
Spiral shield
Diameter : 0.44 mm
FEP jacket
Diameter : 0.53 +/- 0.02 mm

2- CORE (B)
AWG 36 Stranded silver plated alloy
FEP insulation
Diameter : 0.29 +/- 0.03 mm

3- CORE (C)
Kevlar member

ASSEMBLY
4 Cores (A) + 7 Cores (B) + Kevlar member twisted
Nominal diameter : 1.75 mm

4- PTFE Tape
Nominal diameter : 1.80 mm

5- SHILED
AWG 40 Silver plated copper alloy braid
85% coverage
Nominal diameter : 2.10 mm


6- PTFE Tape
Nominal diameter : 2.15 mm.

7- Thermoplastic elastomer jacket
Diameter : 2.75 +/- 0.15 mm



Main Characteristics
Minimum static bending radius : 5 x Overall diameter.
