Nexans SIWO-KUL® B20 1.1 / 1.5 kV
Nexans SIWO-KUL® B20 1.1 / 1.5 kV
SIWO-KUL® B20 1.1 kV MV high temperature flexible cables designed with a PET braid, SILICONE varnished
Read moreSIWO-KUL B20 1x16 1,1KV YE
Nexans ref. 10191754
- Packaging: Cut to length (m)
- Conductor cross-section: 16 mm²
- Nominal outer diameter: 8.75 mm
SIWO-KUL B20 1x25 1,1KV YE
Nexans ref. 10221747
- Packaging: Cut to length (m)
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 10.5 mm
SIWO-KUL B20 1x35 1,1KV YE
Nexans ref. 10178462
- Packaging: Cut to length (m)
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 11.8 mm
SIWO-KUL B20 1x50 1,1KV YE
Nexans ref. 10185017
- Packaging: Cut to length (m)
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 13.8 mm
SIWO-KUL B20 1x70 1,1KV YE
Nexans ref. 10185421
- Packaging: Cut to length (m)
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 15.65 mm
SIWO-KUL B20 1x95 1,1KV YE
Nexans ref. 10202350
- Packaging: Cut to length (m)
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 17.8 mm
SIWO-KUL B20 1x120 1,1KV YE
Nexans ref. 10202351
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 19.75 mm
SIWO-KUL B20 1x150 1,1KV YE
Nexans ref. 10191755
- Packaging: Cut to length (m)
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 22.1 mm
SIWO-KUL B20 1x185 1,1KV YE
Nexans ref. 10206551
- Packaging: Cut to length (m)
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 24.5 mm
SIWO-KUL B20 1x240 1,1KV YE
Nexans ref. 10206553
- Packaging: Cut to length (m)
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 27.1 mm
Description
Description
Standards
-
ProductCSA C22.2 N° 210-05; EN 45545 - HL3; IEC 60228; UL 758
-
InstallationIEC 60092
-
TestIEC 60331; IEC 60332-1; IEC 60332-3-22; IEC 60332-3-24; IEC 60754-1; IEC 60754-2; IEC 61034
Application
- Connection of rotating machines windings, like motors, alternators, generators.
- Cabling of static devices, like power converters, motor drives, power cabinets, transformers
- Adapted for wind turbines, marine and offshore, rollingstock, photovoltaic, energy storage systems

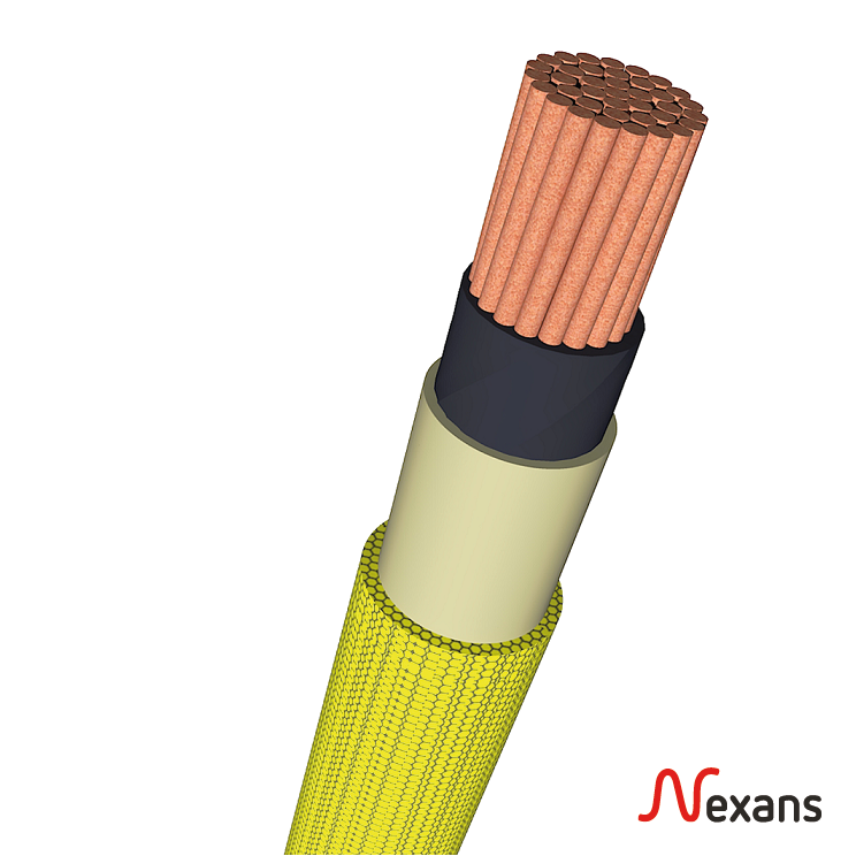

Construction
- Flexible tin-plated copper conductor class 5 as per IEC 60228, other class in option
- High grade silicon rubber insulation
- Mechnical protection by silicone coated synthetic fibre braid
Properties
- Operating temperature in continuous mode -55°C to +180°C
- Resistance to thermal shocks, UV and oils
- Compatibility to VPI impregnation resins
- Type approval certificate : Lloyds Register LR21139304TA
- Type approval certificate : BV Marine & Offshore 09555/D0 BV, file : ACE 01/723/01
- Certificate of compliance : UL758 AWM Style 3640, file : AVLV2.E45073
- Certificate of compliance : CSA Standard C22.2 N°210-15, file : LL 36040 AWM
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Halogen free
Yes
Electrical characteristics
Electrical characteristics
Operating voltage
1.1 kV
Usage characteristics
Usage characteristics
Operating temperature, range
-55 ... 180 °C
Chemical resistance
Good
Oil resistance
Yes
Flame retardant
IEC 60332-1
Fire retardant
IEC 60332-3
Fire resistant
IEC 60331
Gases corrosivity
IEC 60754-1; IEC 60754-2
Smoke density
IEC 61034
