E3UIC-RF-RSM-24-50/240 Al/Cu

Features & benefits

The E3UIC RF RSM combines RF and RSM Nexans technologies to provide long-life and reliable MV connections!

• RF: Rétractable à Froid, Cold-Shrink, reliable and performant technology.
• RSM: Raccords à Serrage Mécanique ; Bolted Connectors
  • multisection, from 50mm² to 240mm².
  • compatible with copper or aluminum cores .
  • compatible with synthetic insulated cables (XLPE).
  • equipped with shear-off head bolts for a perfect torque !
  • no specific tool needed !

Application

The E3UIC RF RSM  has been designed to connect 12/20(24) kV XLPE cables (complying with NF C 33-226, NF/UTE C 33-223 et NF C 33-220) with rated cross sections from 50 to 240 mm² and copper or aluminuim cores to medium voltage switchgears.

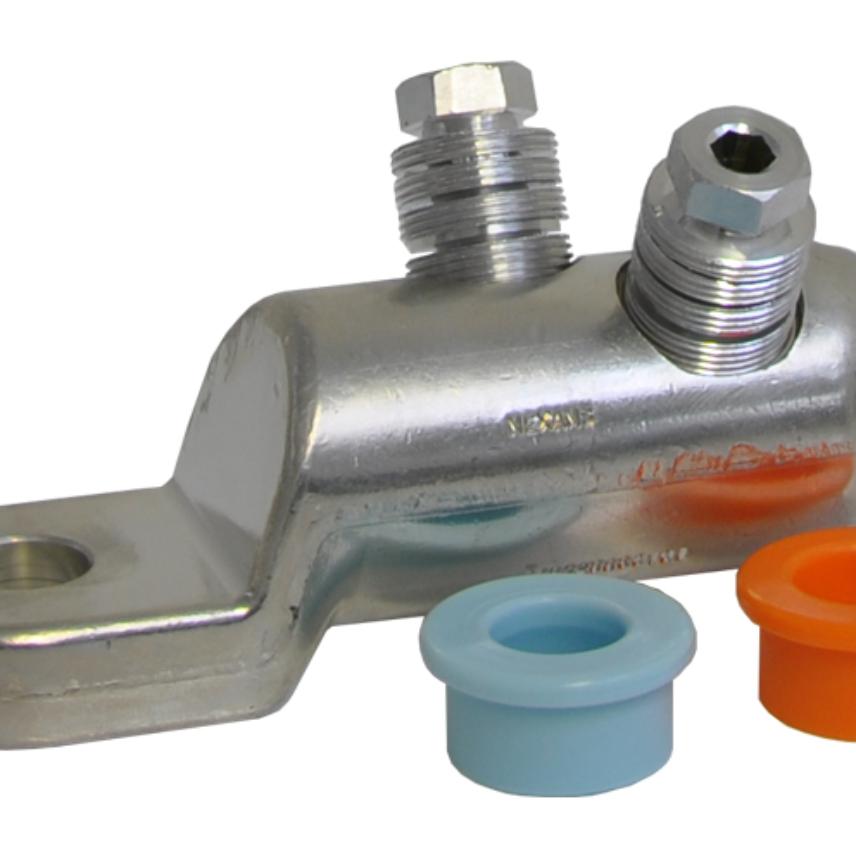

Cores are connected by a bolted lug.

Details

Each E3UIC kit contains:

- 3 cold-shrinkable anti-tracking tubes

- 3 bolted lugs.

- 3 removable boot sleeves (MEC), allowing later access to earthing

- 3 earthing devices.

Installation

This thechnology neither need heating source, nor wrapping or pouring material addition., Assembly is done by removing tubes, and don't need a specific tool.

Ready to use ! Power can be switched on once the assembly is done.
